D/3 USB Keyboard
D/3 ® USB Keyboard
Process Control Functions
Copyright © 2007 NovaTech, LLC. All rights reserved. All trademarks are prop-
erties of their respective owners. D/3, SABL, and FlexBatch are registered
trademarks of NovaTech Process Solutions, LLC. NovaTech is a registered trade-
mark of NovaTech, LLC. The information in this literature is subject to change
without notice and is not to be construed as a warranty.
DS_USBKB_0607_A4
Specifications

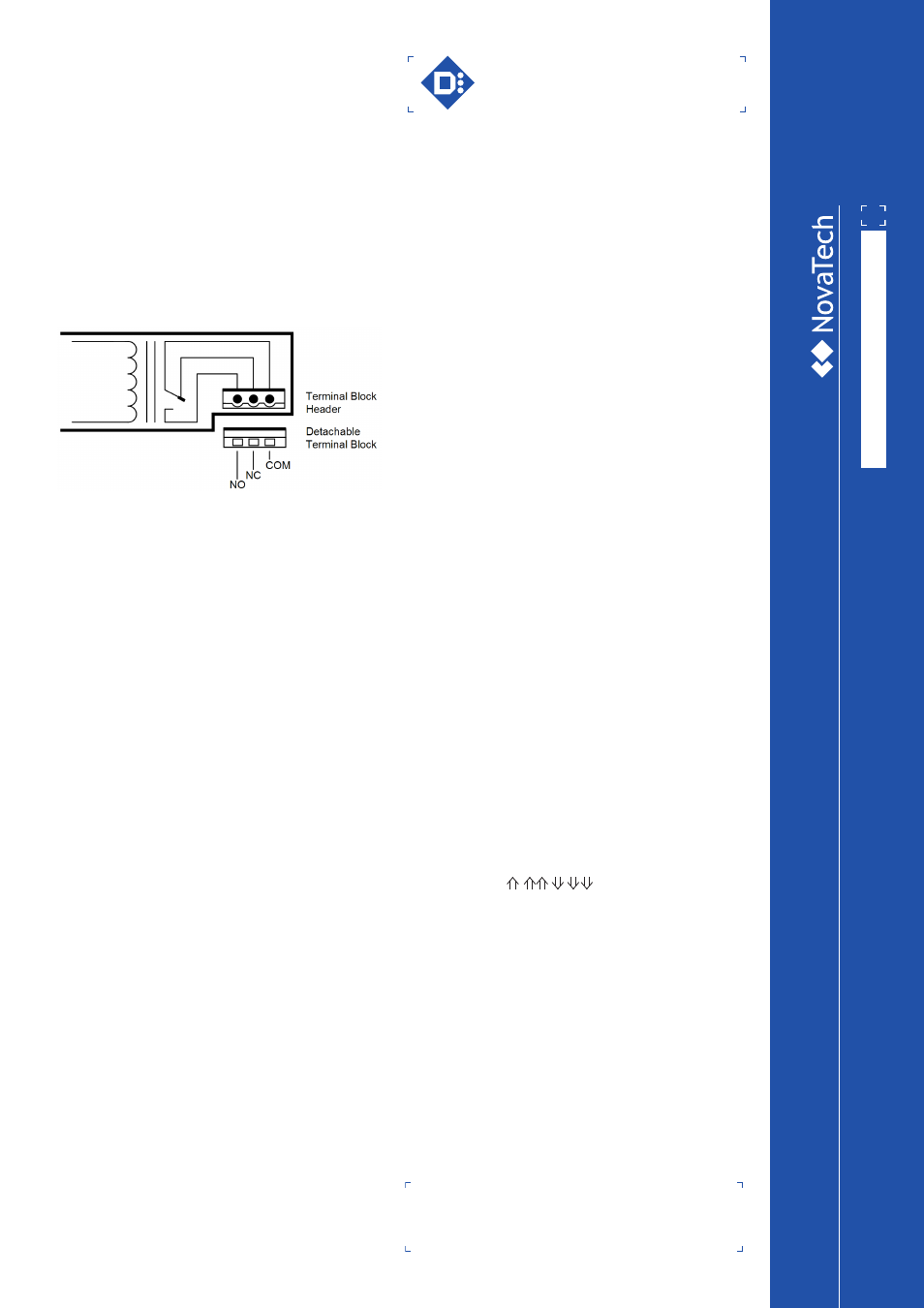

Form C Relay Contacts
Max. switching power
60W, 125VA
Max. switching voltage 220 VDC, 250 VAC
Max. switching current 2A DC or AC
Max. carrying current 2A DC or AC
Sonalert Audible Horn
Loudness
80dbA min.
Variable volume control in rear
12 Volt Alarm Power Supply
(Required for Alarm Functions Only)
Input Voltage Range
100 - 240 VAC, 47-63 Hz.,
0.4A
Output Voltage 12V at 1.25A max.
USB 1.0/2.0 Compatible
Data Exchange Rate
12 Mbps
Current draw 100 ma. max.
Supplied interface cable 3 meters
PC Connector USB A Male
Keyboard Connector USB B Male
CE Certification
Copy of certificate is available upon request.
Installation CD
Includes installation procedure and USB Driv-
ers and Virtual COM Port Software for Windows
2000, XP, Vista, and Server 2003.
Compatibility
The D/3 USB Keyboard is compatible with all
Windows OCMs supporting USB 1.0/2.0 connec-
tions.
Keys
Alphabetic Keys
*, Q, W,E ,R, T, Y, U, I, O, P, &, DEL, @, A S, D, F, G, H, J,
K, L, /, #, SPACE, Z, X, C, V, B, N, M, %, $, :, “, [, ]
Numeric Keys
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, ., -
Display Keys
OVERVIEW, FACEPLATE, SINGLE LOOP, SYSTEM
STATUS, GRAPHICS, GROUP LIST, LOOP MAINT,
CURR TREND, HIST TREND
Display Function Keys
CLEAR, SAVE, DISPLAY EDIT, COPY, GENERAL
FUNCTION, PAGE, PREVIOUS, GRAPHIC ASSOCIA-
TION (4), ASSOCIATED DISPLAY, WINDOW SELECT
Quick Select Keys
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Alarm Keys
ALARM P1, ALARM P2, ALARM P3, SILENCE,
ALARM ACK, LAST ALARM
Sequence Logic Keys
UNIT STATUS, UNIT VARS, RECIPE STATUS, PRO-
GRAM STATUS, PROGRAM STEPS, MESSAGE ACK,
LOAD RECIPE, QUERY HOLD
Digital Function Keys
CLOSE OFF (CMD 0), OPEN ON (CMD 1), CMD #,
OVERRIDE, MID IDLE (CMD 2), CLEAR FAULT
Continuous Control Function Keys
AUTO/MAN, SETPOINT, CASC, OUTPUT, VALUE,
Ramp Keys: , , ,
Parameter Modification Keys
CANCEL, MODIFY, SELECT, ENTER
