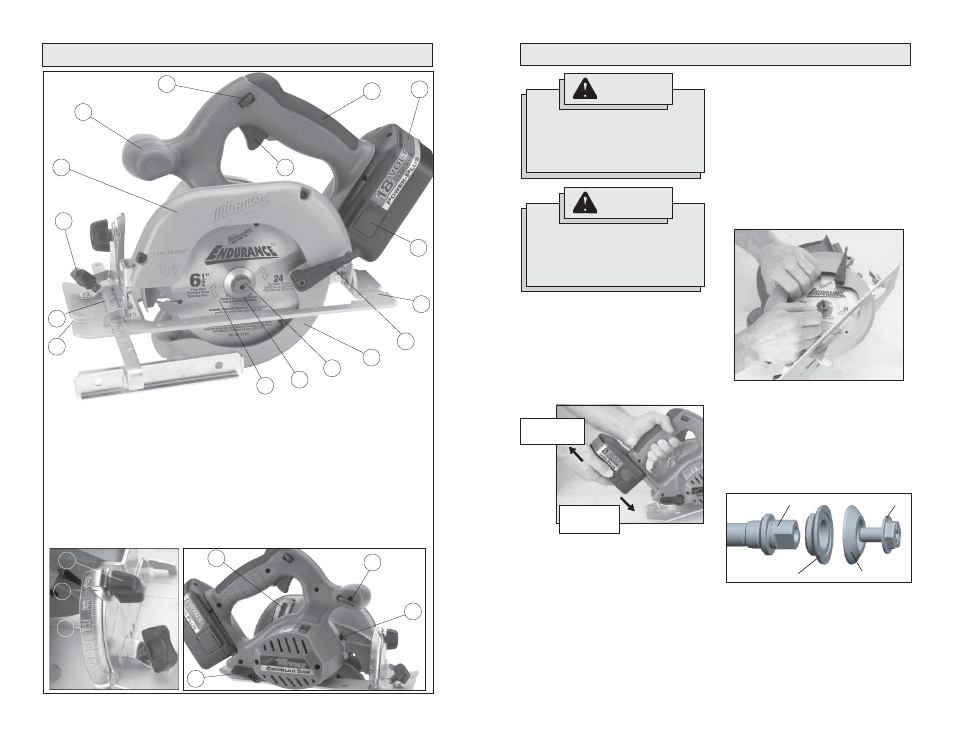

FUNCTIONAL DESCRIPTION

1. Lock-off

button

2. Trigger
3. Handle
4. Battery
5.

Battery pack release buttons

6. Shoe
7.

Lower guard lever

8. Lower

guard

9. Blade

bolt

10. Blade fl ange
11. Blade

12. Sight line
13. Rip fence slot
14. Rip fence adjusting knob
15. Upper guard
16. Front handle
17. Depth setting gauge
18. Wrench
19. Spindle lock button
20. Depth adjusting lever
21. Bevel adjusting knob
22. Bevel pointer
23. Bevel scale

TOOL ASSEMBLY

Bolt

Outer fl ange

Inner fl ange

Spindle

Fig. 3

WARNING

To reduce the risk of injury, always
remove battery pack before attaching
or removing accessories. Use only
specifi cally recommended accesso-
ries. Others may be hazardous.

Fig. 1

Removing Battery Pack from Tool

Push in the release buttons and slide the
battery pack away from the tool.

Inserting Battery Pack into Tool

To insert the battery pack into the tool, push
in the release buttons and slide it into the
body of the tool.

Inserting a
battery pack

Removing a
battery pack

Selecting Blade

Always use sharp blades. Dull blades tend
to overload the tool and increase the chance
of KICKBACK (see "Causes and Operator
Prevention of KICKBACK"). Only use thin
kerf blades with a maximum safe operating
speed greater than the no load RPM marked
on the tool's nameplate. Read the blade
manufacturer's instructions before use. Do
not use any type of abrasive cut-off wheel
or dry diamond cutting blades.

Fig. 2

Installing and Removing Blades

REMOVE BATTERY PACK BEFORE IN-
STALLING OR REMOVING BLADES.

2. Place the saw on a fl at surface with the

blade facing upwards. To remove the
bolt from the spindle, push in the spindle
lock button. While holding the spindle
lock button in, use the wrench provided
with the tool to turn the bolt clockwise
(Fig. 2). Remove the bolt and blade
fl ange.

3. Slide the lower guard lever up to raise

the lower guard. Remove the blade from
the spindle. Always clean the spindle,
upper guard and lower guard to remove
any dirt and sawdust.

NOTE: Do not remove inner blade
fl ange. Larger diameter of inner fl ange
(Fig. 3) should face the blade.

WARNING

Recharge only with the charger
specifi ed for the battery pack. For
specifi c charging instructions, read
the operator's manual supplied with
your charger and battery pack.
