CONNECTOR PIN ASSIGNMENTS
This appendix provides information about the RJ-45 plug and the vista RJ-45 connector used
for the 16-Port Fast Ethernet ProSwitch.
RJ-45 Plug
In a Fast Ethernet network, it is important that all 100BASE-T certified Category 5 cabling use
RJ-45 plugs. The RJ-45 plug accepts 4-pair unshielded twisted pair (UTP) or shielded twisted
pair (STP) 100-ohm cable and connects into the vista RJ-45 connector.

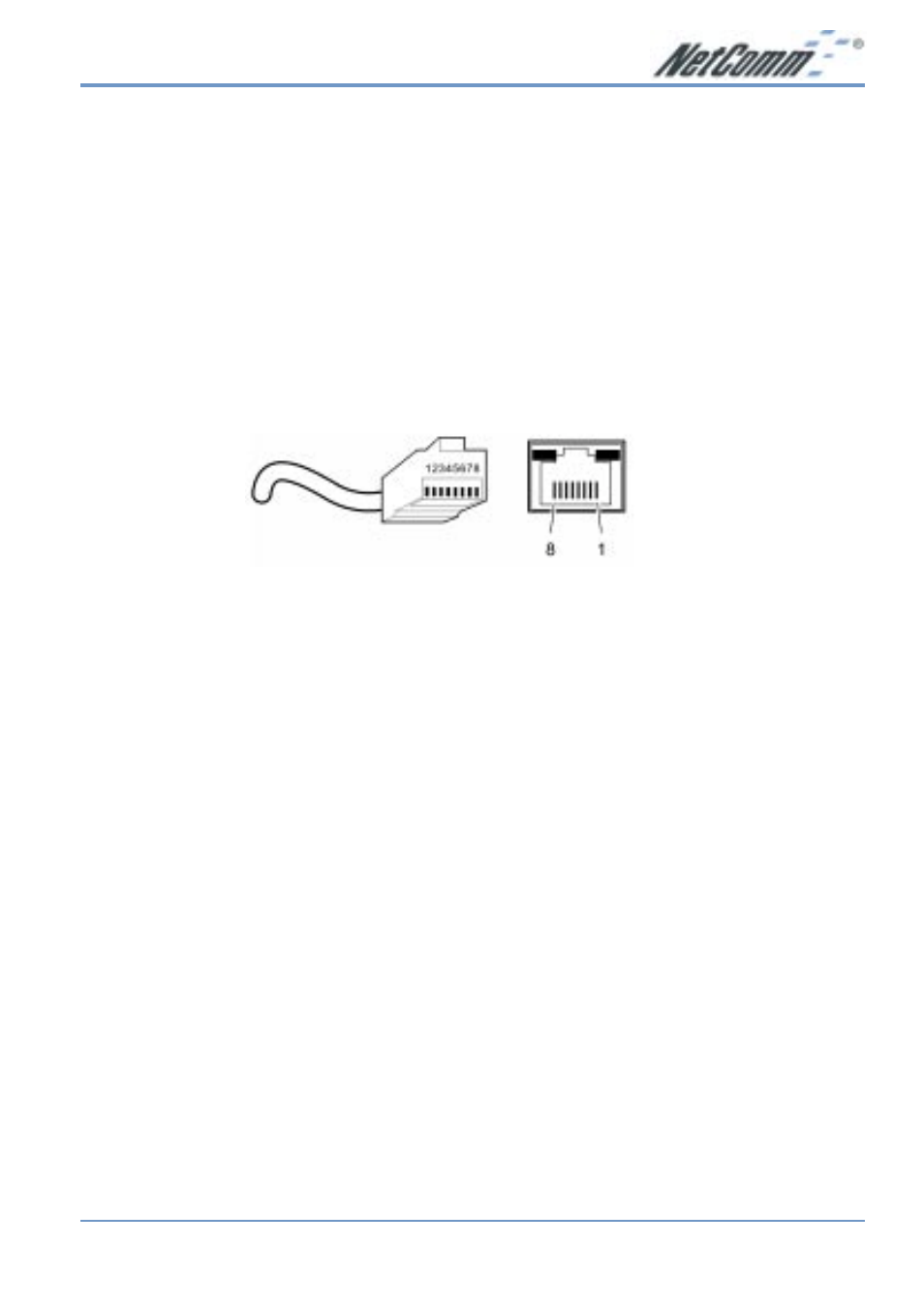

The RJ-45 plug connector is illustrated below.
Key:
1 to 8 = Pin numbers
The follow table lists the pin assignments for the RJ-45 plug and the vista RJ-45 connector.
Pin Assignments
PIN
Normal Assignment on Ports 1 to 16
1
Input Receive Data +
2
Input Receive Data –
3
Output Transmit Data +
6
Output Transmit Data –
4, 5, 7, 8
Internal termination, not used for data transmission
