CHAPTER 2 SYSTEM CONFIGURATION
Module Configuration
The NEAX 2000 IPS consists of Port Interface Modules (PIM) depending on the system configuration, and
there are two types of PIMs; “Physical” PIM and “Virtual” PIM.
The Physical PIM is a “hardware” PIM and is used to accommodate an MP, FPs, IP PADs, legacy LT an AP
cards, and power supply units. One Physical PIM provides up to 64 ports.
The Virtual PIM is a “software” PIM and is used to assign D
term IP telephones, D term SP30 or IP-BS by system
programming. One Virtual PIM provides up to 64 D term IP telephones. The system consists of up to 8 PIMs,
by the combination of Physical PIMs and Virtual PIMs, thus providing 448 ports for D term IP telephones and
512 ports for legacy LT cards. The total number of ports for D term IP telephones and legacy LT cards must be
512 or fewer, so that the number of Physical PIMs decreases when that of Virtual PIMs (= number of D term IP
telephones) increases. For example, when 256 legacy LT ports are required (= four Physical PIMs), the
maximum number of D
term IPs is 256.

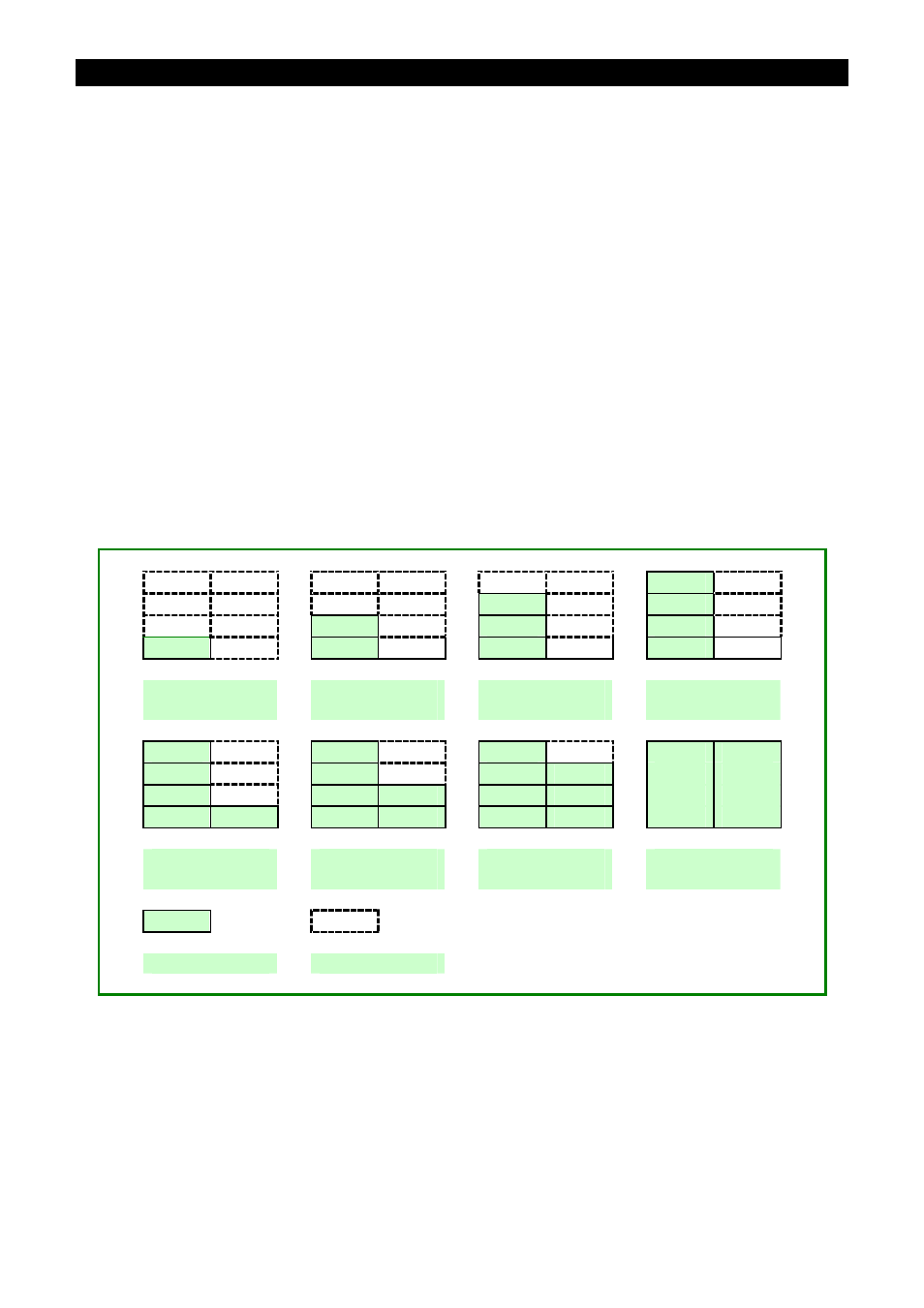

The figure below shows examples of 512-port configuration by combination of legacy LT ports and D
term IP
telephones.
PIM #3 PIM #7 PIM #3 PIM #7 PIM #3 PIM #7 PIM #3 PIM #7
PIM #2 PIM #6 PIM #2 PIM #6 PIM #2 PIM #6 PIM #2 PIM #6
PIM #1 PIM #5 PIM #1 PIM #5 PIM #1 PIM #5 PIM #1 PIM #5
PIM #0 PIM #4 PIM #0 PIM #4 PIM #0 PIM #4 PIM #0 PIM #4
64 LT ports
+ 448 D
term IPs
128 LT ports
+ 384 D
term IPs
192 LT ports
+ 256 D
term IPs
256 LT ports
+256 D
term IPs
PIM #3 PIM #7 PIM #3 PIM #7 PIM #3 PIM #7 PIM #3 PIM #7
PIM #2 PIM #6 PIM #2 PIM #6 PIM #2 PIM #6 PIM #2 PIM #6
PIM #1 PIM #5 PIM #1 PIM #5 PIM #1 PIM #5 PIM #1 PIM #5
PIM #0 PIM #4 PIM #0 PIM #4 PIM #0 PIM #4 PIM #0 PIM #4
320 LT ports
+ 128 D
term IPs
384 LT ports
+ 128 D
term IPs
448 LT ports
+ 0 D
term IPs
512 LT ports
+ 0 D
term IPs
PIM PIM
Physical PIM Virtual PIM
Figure 2-1 Module Configuration of NEAX 2000 IPS
