Installing the Security Bracket and Cable
1. With the loudspeaker in the proper location, turn the loudspeaker over so the
bottom of the loudspeaker is facing you, as shown in Figure 7.
2. Take the nylon security cable, supplied with the loudspeaker and fold it in half.
Using the middle of the cable, feed it through the Security Attachment Eyelet as
shown in Figure 8.
3. Feed the opposite end of the nylon security cable through the exposed portion
of the cable that was just fed through the security eyelet, as shown in
Figures 9 and 10.
4. Pull the ends of the security cable with
the loops as tight as you can until the
knot around the security eyelet is
tightened as shown in Figure 11.
5. Feed the Security Stake through the
loops at the end of the security cable
and insure that they are inserted into the
cable holder provided at the top of the
stake, as shown in Figure 12.
INST
ALLA
TION
15

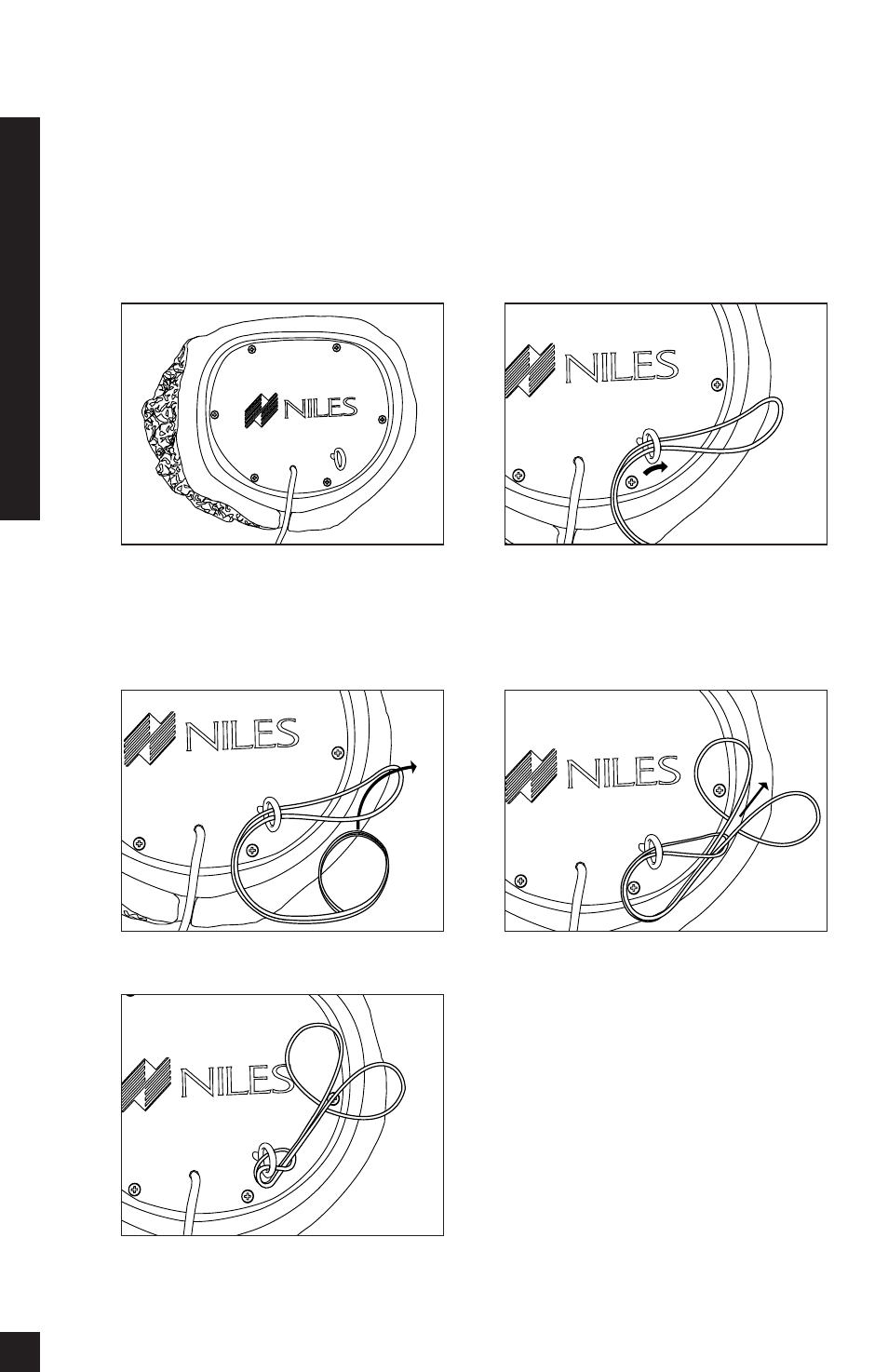

Figure 7 Bottom of Loudspeaker Figure 8 Security Cable in Eyelet
Figure 9 Security Cable
Looping Through
Figure 10 Security Cable after Looping
Figure 11 Security Cable
Connected and Tightened
