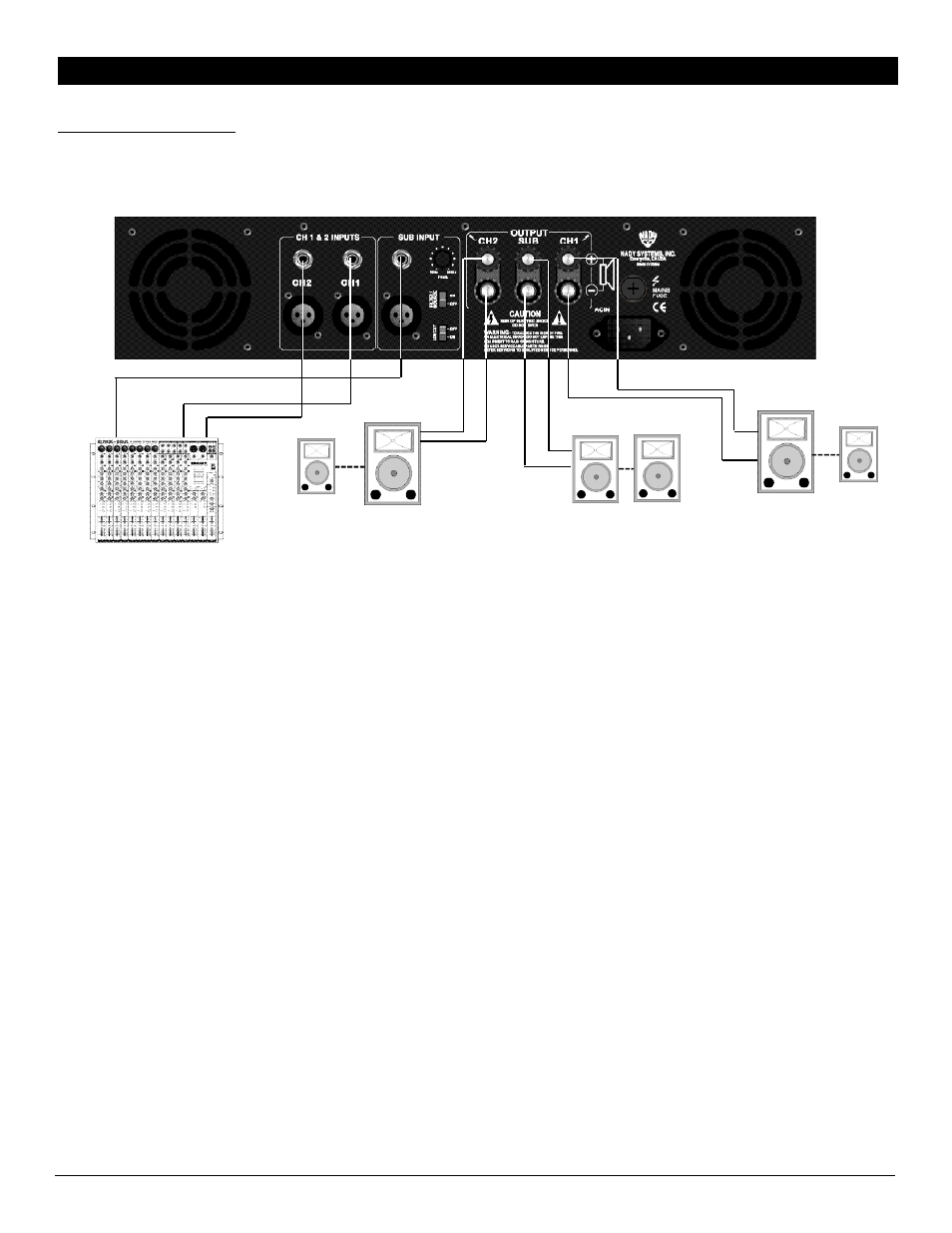

S P E A K E R C O N N E C T I O N S
8
• Mains & Monitor Mode
1. Input main Left and Right signals from your crossover into Channels 1 and 2.
2. Input Monitor or Aux full-range signal from your mixer into the Subwoofer input.
3. Set the Filter/Source switch to OFF.
(Note: Do not connect a speaker load less than 4
Ω to either channel as it can damage your amplifier.)
L
4
Ω min
-
+
R
R
8 Ω
8 Ω
+
-
MONITORS
SOUND REINFORCEMENT
+
-
L
8 Ω
8 Ω
4
Ω min
8
Ω 8 Ω
4
Ω min AUX SEND/
MONITOR
