RSM 191
Technical Data
Acoustical operating principle ............ M: Pressure gradient/interference
transducer
S: Pressure gradient transducer
Directional pattern ............................................................................. M: Lobe-shaped
S: Figure-8
Frequency range .................................................................................. 20 Hz...20 kHz
Sensitivity at 1 kHz into 1 kohm ........................................................... 23 mV/Pa
Rated impedance ................................................................................................ 50 ohms
Rated load impedance .............................................................................. 1000 ohms
Signal-to-noise ratio, CCIR
1) (rel. 94 dB SPL) .............................. 69/63 dB 2)
Signal-to-noise ratio, A-weighted 1) (rel. 94 dB SPL) ............... 78/72 dB 2)
Equivalent noise level, CCIR 1) ................................................................ 25/31 dB 2)
Equivalent noise level, A-weighted 1) ............................................ 16/22 dB-A 2)
Maximum SPL for THD 0.5% 3) .................................................................. 134 dB
Maximum SPL for THD 0.5% with preattenuation 3) ................... 144 dB
Maximum output voltage ........................................................................... 2540 mV
Supply voltage (P48, IEC 61938) .......................................... 2 x 48 V ± 4 V
Current consumption (P48, IEC 61938) ..................................... 2 x 1.9 mA
Matching connector ..................................................................................... 2 x XLR3F
Weight ............................................................................................................................. 170 g
Diameter ...................................................................................................................... 30 mm
Length ........................................................................................................................ 212 mm
an excellent impulse response, reproducing all
transient phenomena in music and speech
without coloration. The entire internal con-
struction is decoupled from the housing to
avoid structure borne and handling noise.
Electrical features

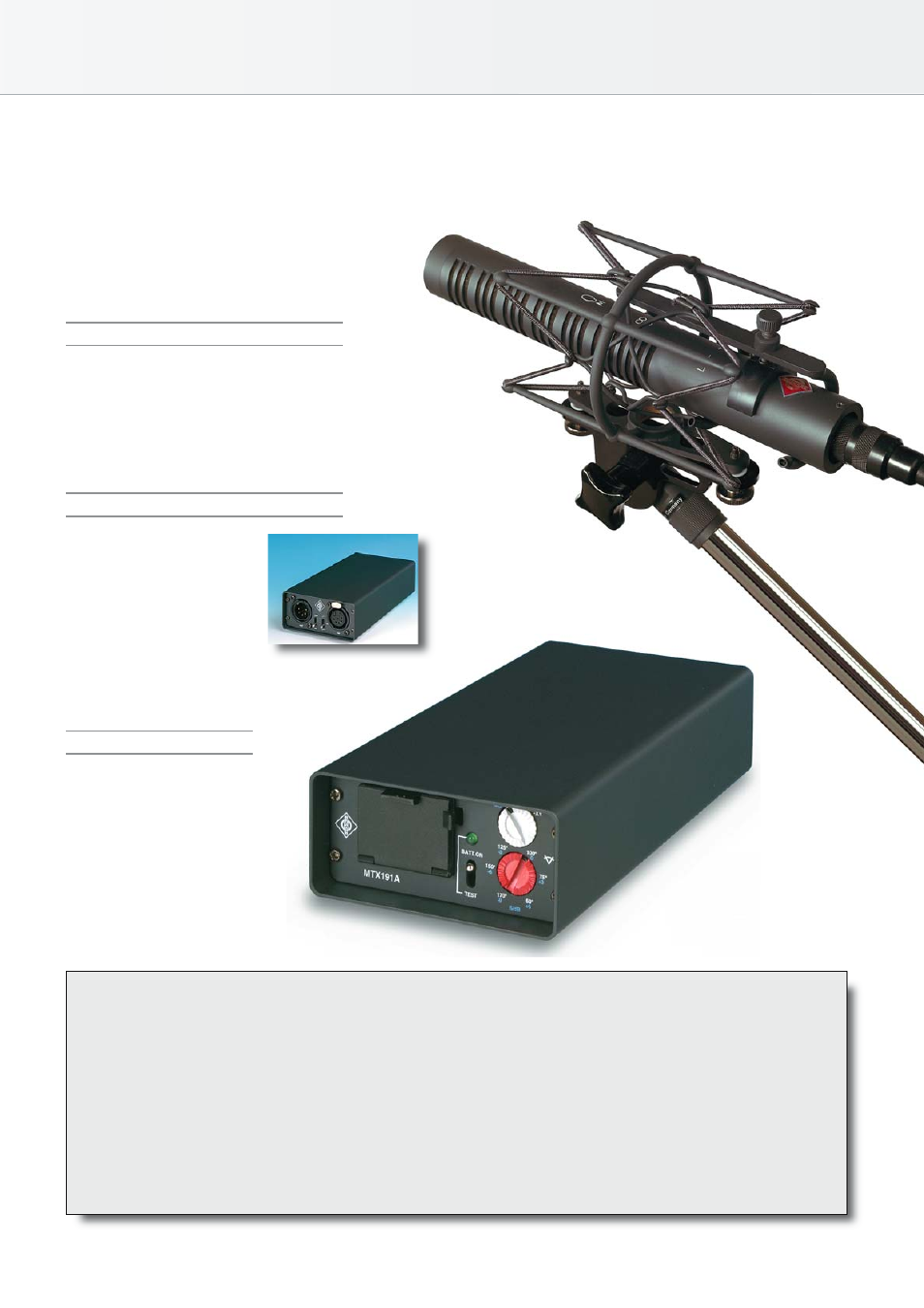

The output signals of the included matrix am-
plifier are in either MS or XY format. The small
capsules are mounted in close proximity to en-
sure transparent and coloration-free stereo
sound with excellent mono-compatibility. The
stereo acceptance angle is variable and con-
trolled remotely.
Filter and attenuation
For the handling of very high
sound pressure levels, a 10 dB
attenuation can be switched
ON to avoid overloading of the
following equipment.
To suppress structure borne
noise, a high-pass filter in the
matrix box provides cutoff fre-
quencies of 40 Hz, 80 Hz, and
200 Hz.
Battery supply
The RSM 191 system is fed
from either 2 x P48 phantom
power or from a 9 V battery in-
side the matrix box.
One alkaline battery provides
8 hours of operation.
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS 2) M/S 3) measured as equivalent el. input signal
