North Star 157596 - Manual (Page 14)

Pos Code Description Note Q.Ty
1 3218 0114 Manifold brass 1
2 3609 0150 Screw M6x35 5
3 1210 0392 O-Ring 2,0x16 4
4 1205 0031 Suct./Del. Valve Cage 3
5 1802 0175 Suct./Del. Valve Spring 3
6 3604 0026 Suct./Del. Valve 3
7 3009 0121 Suct./Del. Valve Seat 3
8 1220 0039 Suct./Del. Valve Ass.y kit 3
9 1210 0415 O-Ring 1,78x12,42 3
10 0601 0274 Spacer 2
11 2421 0010 Pressure Switch (Red) G1/8 - 25 bar 1
12 1816 0125 Gauge Ø40 G1/8 1
13 0424 0418 Body 1
14 3609 0148 Screw M5x35 2
15 2403 0081 Plate 1
16 3607 0103 Hexagonal Screw M5x40 2
17 3005 0023 Pin 3,5x29,8 1
18 3001 0133 T.S. Electrical Box 1
19 1825 0011 Total Stop Switch 1
20 1201 0136 Gasket 1
21 0402 0200 Cover 1
22 3625 0047 Screw 2,9x31,7 2
23 3625 0048 Screw 3x10 3
24 0009 0229 Ring 1
25 2416 0112 Protection 1
26 1201 0137 Gasket 1
27 1200 0056 Wing Nut 1
29 0456 0308 T.S. Cable Kit 1
30 2434 0040 Cable Holder 1
33 2803 0383 Detergent Coupling 1
34 1210 0014 O-Ring 1,78x4,48 1
35 1210 0039 O-Ring 1,78x7,66 1
36 3003 0024 Ball 7/32" 1
37 1802 0254 Conic Spring 1

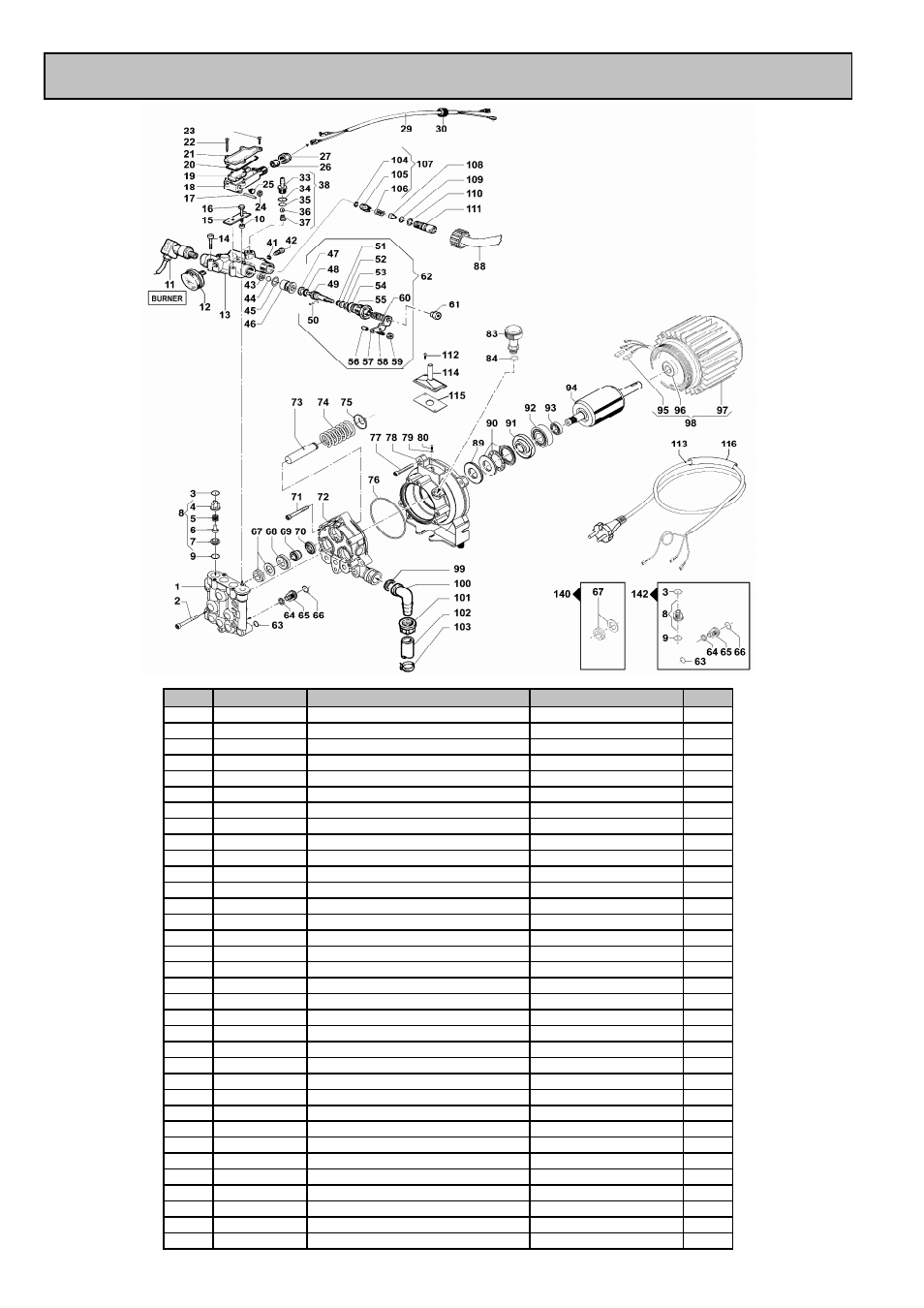

PUMP, MOTOR ASSEMBLY EXPLODED WIEW
