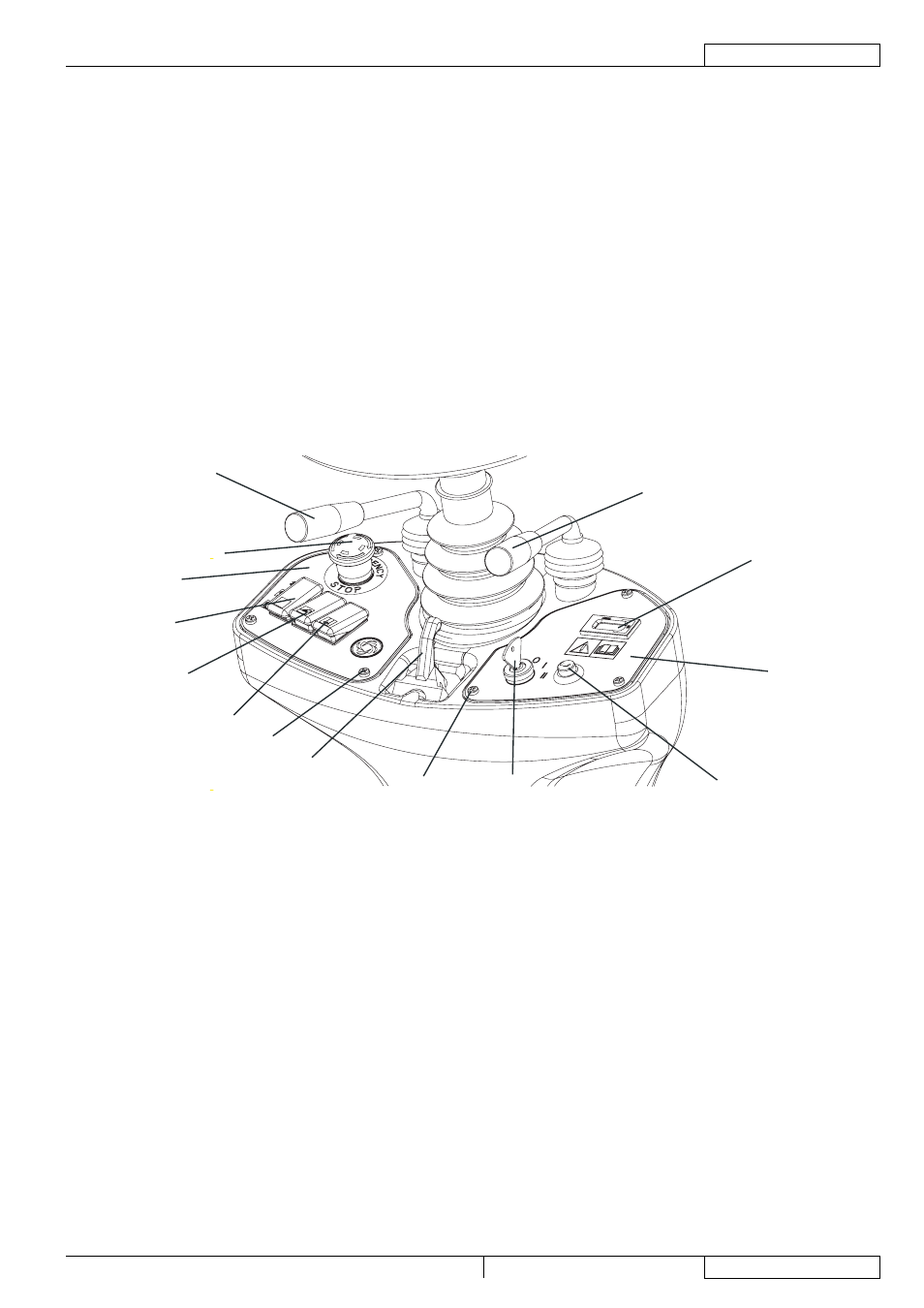

CONTROL PANEL
Left control panel
Ignition key
Position "0": the machine is off and all functions are disabled
Position "I": Electrical system turned on (before starting the engine)
Motor running (after starting the engine)
Flashing light turned on
Position "II": Starter activation
Hour counter
Horn switch
Vacuum fan/fi lter shaker switch
Manual vacuum system switch (optional)
Working light switch (optional)
Emergency push-button. Press it in case of emergency to stop all the machine functions. To deactivate the emergency push-
button, turn it in the direction shown by the arrow.
Panel fastening screws
Right control panel
Left and right side broom lifting/lowering lever
Main broom lifting/lowering lever
Steering wheel adjusting lever
92
83
90
84
91
88
81
85
87
86
89
93
89 82
S311387
ACCESSORIES/OPTIONS
In addition to the standard components, the machine can be equipped with the following accessories/options, according to the
machine specifi c use:
Main and side brooms with harder or softer bristles
Antistatic polyester or polyester BIA C dust fi lter
Left side broom
Manual vacuum system
Working light
Flashing light
Skirts of various materials
Protective roof
For further information concerning the optional accessories, contact an authorised Retailer.
81.
82.
•
•
•
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
–
–
–
–
–
–
–
–
