1 INSTALLATION
(7) Power indicator
Indicates the power-on status, as follows:
Solid green:
Power is ON (normal mode)
Flashing green: PowerManager Mode 1 (power-saving mode)
Yellow:
PowerManager Mode 2 (maximum power-saving)
(8) Power switch
Switches the monitor’s power ON and OFF.

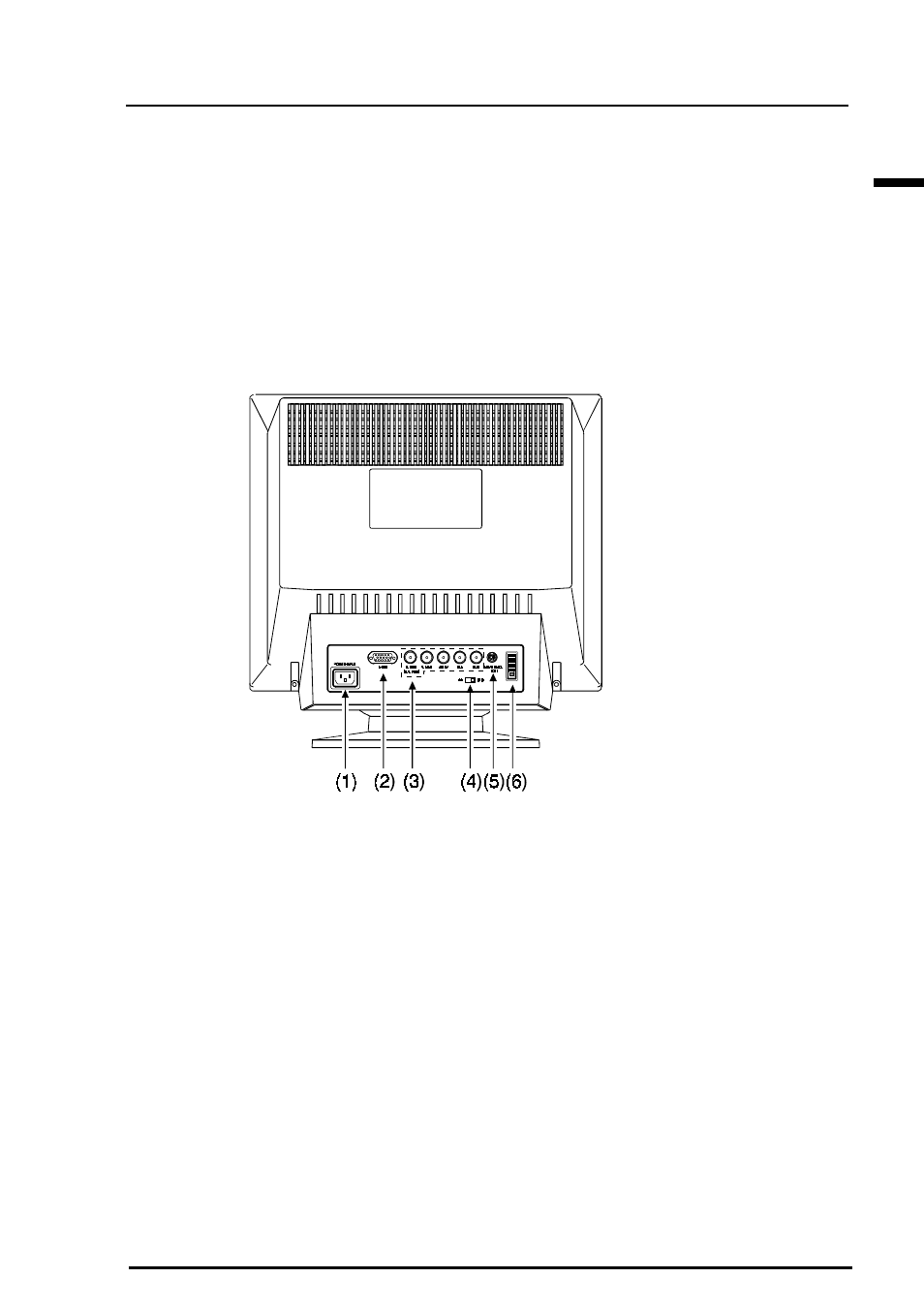

Rear
(1) Power connector
Use the supplied power cord only.
(2) D-Sub mini 15 pin input connector
(3) BNC input connector
(4) Termination switch
Allows multiple monitors to be chained together (Default termination is
75
Ω
).
(5) Maintenance port
Allows EIZO optional utilities to be attached.
(6) USB ports (Upstream port x1, Downstream ports x 3)
See page 44 for further details.
