INSTALLATION
Notes:

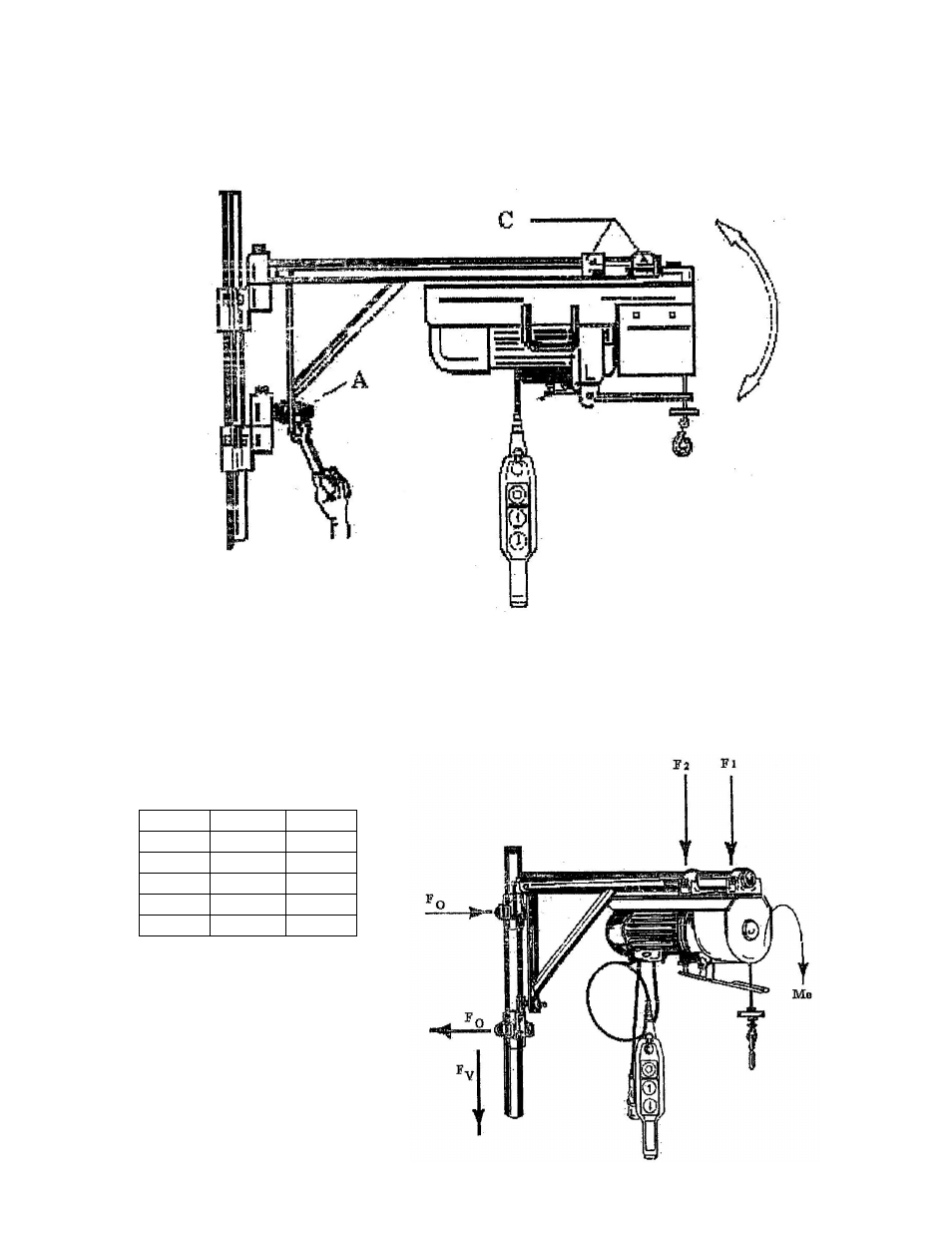

A) Before starting the electric hoist, first check two hinge type fixing clamps and
positioning clamp (C) for being aligned and properly tightened.
B) For smooth winding of rope, the roll axis must be kept level: Loose lock nuts, adjust
nut (A), locate precise position, the finally re-tighten lock nuts.
Special frame
Newton kgf
F
O
7333 748
F
V
2927 299
F
1
3082 315
F
2
-254 -26
Me 202Nm 21Kgm
