INSTALLATION INSTRUCTIONS

READ & SAVE THESE INSTRUCTIONS!

Heat-A-Vent

®

Combination

MODEL: 605RP

LOCATION

1. Mount heater to ceiling joists, or if necessary, to a header

installed between joists.

2. Caution: Do not mount heater closer than 12" to a

vertical surface. Do not mount over tub or in shower
enclosure.

3. Installation in existing construction requires an accessible

area above the desired location. Make sure that wiring
can be run to the location.

4. For installation in sloped ceilings up to 12/12 pitch.
5. Ductwork must point up.

MOUNTING HEATER HOUSING

NEW CONSTRUCTION

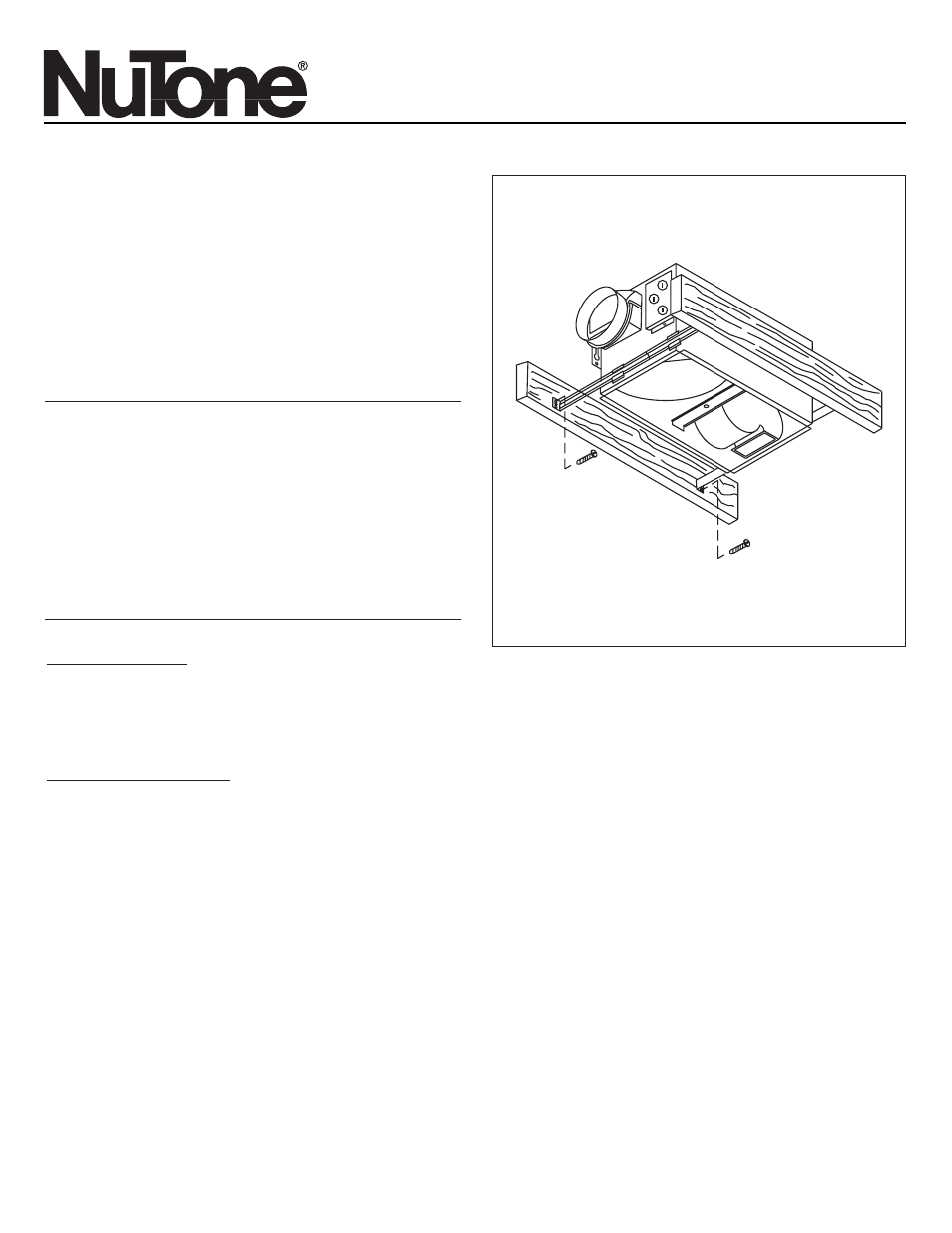

FIGURE 1

Using Hanger Bars
Refer to Fig. 1
1. Insert hanger bars in slots provided in housing.
2. Locate heater housing between joists so that bottom of heater housing is even with the planned finished ceiling.
3. Use screws or nails (not provided) to secure hanger bars to ceiling joists.

Using Side Mounting Tabs

1. Locate heater housing next to ceiling joist.
2. Use wood screws (not provided) through keyhole slots in mounting tabs to loosely attach housing to ceiling joist.
3. Adjust housing so that it will be flush with the finished ceiling. When housing is properly adjusted, tighten screw in slots to

secure housing.

EXISTING CONSTRUCTION

1. Determine desired location for heater.
2. Drill a small hole through the ceiling at the desired location and stick a coat hanger or stiff wire through hole into attic to

help find the location from above.

3. Check the area above to make sure that wiring can be installed and that the installation will not interfere with existing

electrical wiring.

4. From above, place the housing between ceiling joists at the desired location. Using the housing as a template, mark the

area to be cut out along the bottom flange of the housing.

5. After making the cutout, install the housing in the opening using the hanger bars or mounting tabs as described above.

Make sure that the bottom of the housing is flush with the bottom of the finished ceiling.
