Transmission Standards
DVB, MPEG 2
LNB / Tuner input
Connector
1x F-type (LNB)
RF input frequency
950-2150 MHz
RF input power level -20 to -70 dBm
Supply voltage
13,5 /18,5 V
±
5%
Max. current
400 mA, overload protected
Control voltage
22 kHz, 0,65 V
pp
DiSEqC
Tone burst A/B or
Level 1, 1-4
RF impedance
75
Ω
TV SCART
Video output
1 V
pp
(
±
1 dB) / 75
Ω
Audio output
0,5 V
rms
/ R
L
>10 k
Ω
RGB output
Internal RGB or from
SATELLITE SCART
RGB bandwidth
6 MHz
±
3 dB
Fast blanking output Internal RGB or from
SATELLITE SCART
Status output
0/6/12 V / R
L
10 k
Ω
VIDEO SCART
Video output
1 V
pp
(
±
1 dB) / 75
Ω
Video input
1 V
pp
/ 75
Ω
Audio output
0,5 V
rms
/ R
L
>10 k
Ω
Audio input
0,5 Vr
ms
/ R
L
>10 k
Ω
Status input
0/6/12 V / R
L
>10 k
Ω
SAT SCART
Video input
1 V
pp
/ 75
Ω
RGB input
Yes
Fast blanking input
Yes
Audio input
0,5 V
rms
/ R
L
>10 k
Ω
Status input
0/6/12 V / R
L
>10 k
Ω
AUDIO R L
Connector
2 x RCA (R+L)
Output
0,5 V
rms
/ R
L
10 k
Ω
Low speed serial data (RS 232)
Connector
9-pin D-sub
Signals
RS232, max. 19.2 kbit/s
Pin 1 not connected 2 RXD
3 TXD
4 Set to high
5 GND
6 not connected
7 RTS
8 CTS
9 not connected
SCSI
Connector
50 pol.
Signal
SCSI-2 (max. 3,8 MB/s)
Control output, 0/12 VOLT
Connector
1 x RCA / Cinch
Voltage
0/12 V 50 mA
Conditional access system:
Interface for the Common Interface
CA-module (DVB Standard)
Front panel
Display 8 character alphanumeric matrix,
5x7 pixels. Buttons: , (standby,
progr. number up and down)
General data
Article code
The model code, variant and serial number,
are located on a label on the underside of
the housing.
Software
Software version (V.x.xxx) and Boot version
(Bx.xx or Boot x.xx) are displayed in the
matrix display when the Mediamaster is
powered up.
Supply voltage
230 V AC
±
15%, 50-60 Hz
Power consumption max
40 W
Power consumption in
standby
2 W
Working temperature
+5
°
C to +40
°
Storage temperature
-
40
°
C to +65
°
C
Operating distance for
remote control
max 10 meters
Dimensions (w x d x h)
380 x 240 x 65 mm
Weight
2,2 kg approx

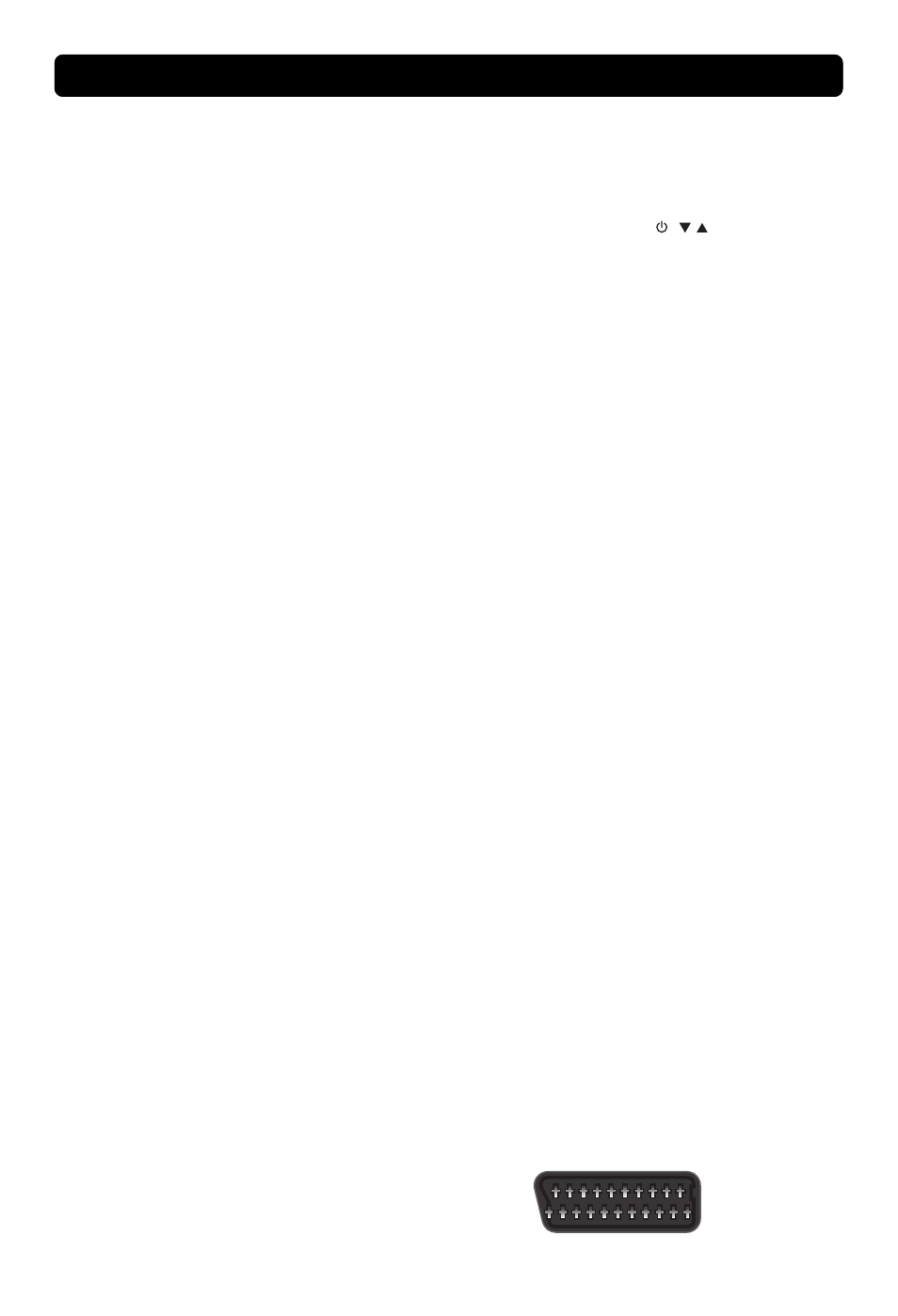

SCART-sockets
TV
SAT
VIDEO
1
Audio out right ch.
-
Audio out right ch.
2
-
Audio in right ch.
Audio in right ch.
3
Audio out left ch.
-
Audio out left ch.
4
Audio ground
Audio ground
Audio ground
5
RGB blue ground
RGB blue ground
-
6
-
Audio in left ch.
Audio in left ch.
7
RGB blue signal out
RGB blue signal in
-
8
Switch voltage out
Switch voltage in
Switch voltage in
9
RGB green ground
RGB green ground -
10 -
-
-
11 RGB green signal out RGB green signal in -
12 -
-
-
13 RGB red ground
RGB red ground
-
14 Fast blank. ground
Fast blank. ground
-
15 RGB red signal out
RGB red signal in
-
16 Fast blanking out
Fast blanking in
-
17 Video out ground
-
Video out ground
18 -
Video in ground
Video in ground
19 Video out
-
Video out
20 -
Video in
Video in
21 Ground (casing)
Ground (casing)
Ground (casing)
The EMC Directive 89/336/EEC is applied to this product.
Technical Specifications
1
21
2
20
