Nady Systems Encore I User Manual
Page 9
38

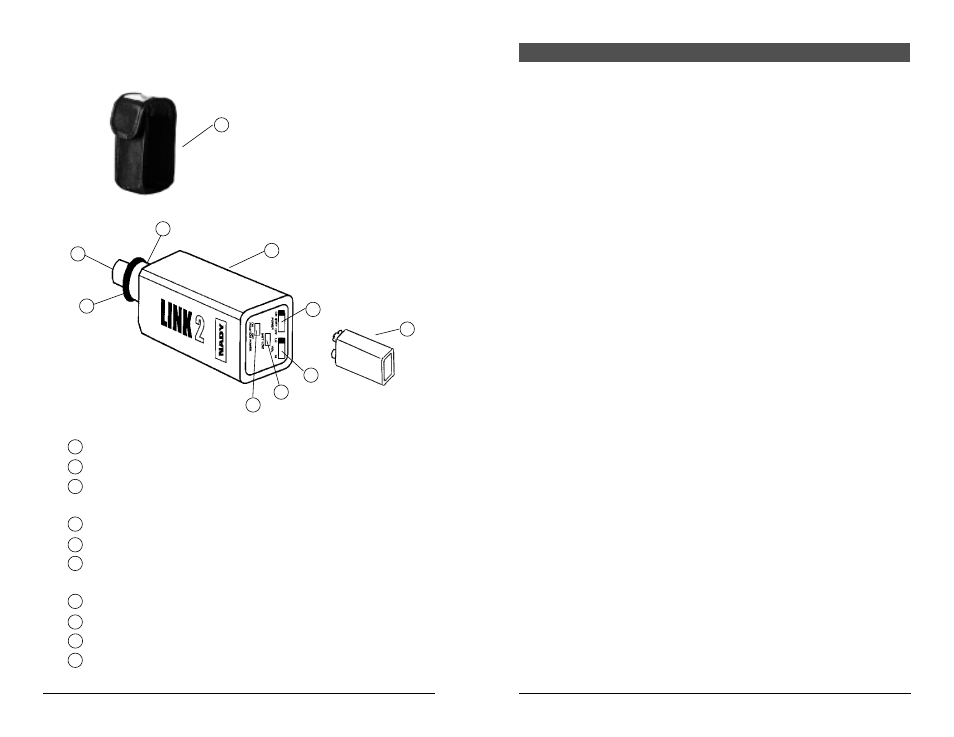

XLR Connector
– Connects microphone to the transmitter module for signal input
Locking Ring
– Locks microphone to the transmitter
Optional Pouch
– For lavalier bodypack operation (with beltclip and strap ring for
securing)
Gain Control Switch
– Adjusts the input sensitivity (LO or HI)
Low Battery LED
– Single flash (power on), lit steady (low battery)
Power Switch
- Turns the power ON/STANDBY/OFF. In standby position, the power is
on and the audio is off.
Phantom Power ON/OFF Switch
– Turns the phantom power ON/OFF
Battery Compartment
Release Button
– Press to release XLR connector
9V Alkaline Battery
36
37
38
39
40
41
42
43
44
45
16
44
36
37
43
41
42
40
39
45
SPECIFICATIONS
17
ENCORE I OVERALL SYSTEM PERFORMANCE
Frequency Response
25-20,000 Hz, +/-3dB
Dynamic Range
120dB
Total Harmonic Distortion
< 0.3%
RF Carrier Frequency Range
169-216 MHz
Frequency Stability
+/- 0.005%, crystal controlled
Modulation
FM (F3E), +/-20KHz max.
Operating Range
Up to 250 ft. typical (depending on site
conditions); up to 500+ feet optimum
line-of-sight
TRANSMITTERS
Audio Inputs
•WHT-15
Nady DM-10D neodymium dynamic cartridge
•WLT-15/WGT-15
3.5mm mono locking jack for connecting to omni
or unidirectional lavalier mic or unidirectional
head worn mic, with phantom power (WLT-15);
or connecting to instrument cable (WGT-15)
•LINK 2™
Locking XLR jack for connecting to microphone or
cable, with selectable phantom power
Controls
•WHT-15
OFF/STANDBY/ON switch
•WLT-15/WGT-15
OFF/STANDBY/ON switch, input level adjust
•LINK 2™
OFF/STANDBY/ON, LO/HI Level, and ON/OFF
Phantom power switch
LED Indicator
Unit "ON" (single flash),
Low Battery Alert (steady)
RF Power Out
50mW (Max. allowed by FCC)
Harmonic & Spurious Emissions
> –40dB
Battery
9V Alkaline
Battery Life
Up to 15 hours
Dimensions
•WHT-15
9.5" X 1.4" Diam. (24.1 X 3.5 cm)
•WLT-15/WGT-15
4.1" X 2.4"X 0.8" (10.4 X 6.1 X 2.0 cm)
•LINK 2™
4.5" X 1.5" X 1.25" (11.4 X 3.8 X 3.2 cm)
Weight (w/o battery)
•WHT-15
6.9 oz (193 g)
•WLT-15/WGT-15
3.6 oz (101 g)
•LINK 2™
2.6 oz (71 g)
