Upgrade ap firmware – NDC comm NWH650 User Manual
Page 28

22 InstantWave
High Rate
11Mbps
Access Point

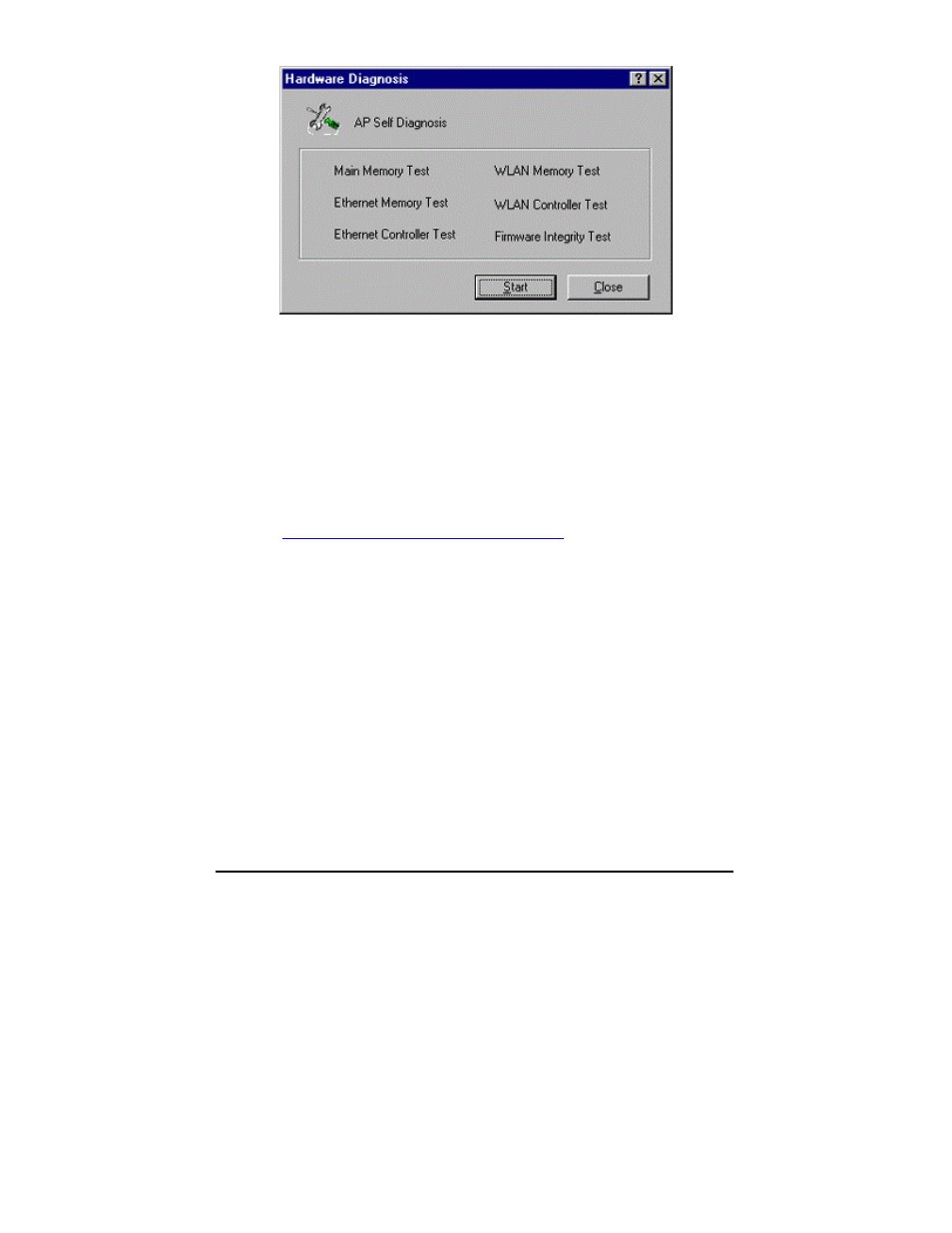

Figure 16. Hardware Diagnosis
Click Start and the tests will commence. As each item is tested, a yellow arrow
will appear alongside it. If the test is successful, the arrow will change to a green
tick. If a failure occurs, an “X” will appear. You can click Cancel at any time to
stop the tests. When the tests have completed, the Cancel button changes to a
Close button. Click Close to return to the Service card.
Upgrade AP Firmware
From time to time updated firmware is released and may be downloaded from our
websit
The updated firmware may be installed via a COM port using the AP COMFig tool.
Click on Upgrade AP Firmware (Figure 9, page 12). The Upgrade AP Firmware
dialog box will open (Figure 17).
