HDMI CONNECTION
If you have a HDMI TV or monitor, you can connect it to this player
using a HDMI cable.

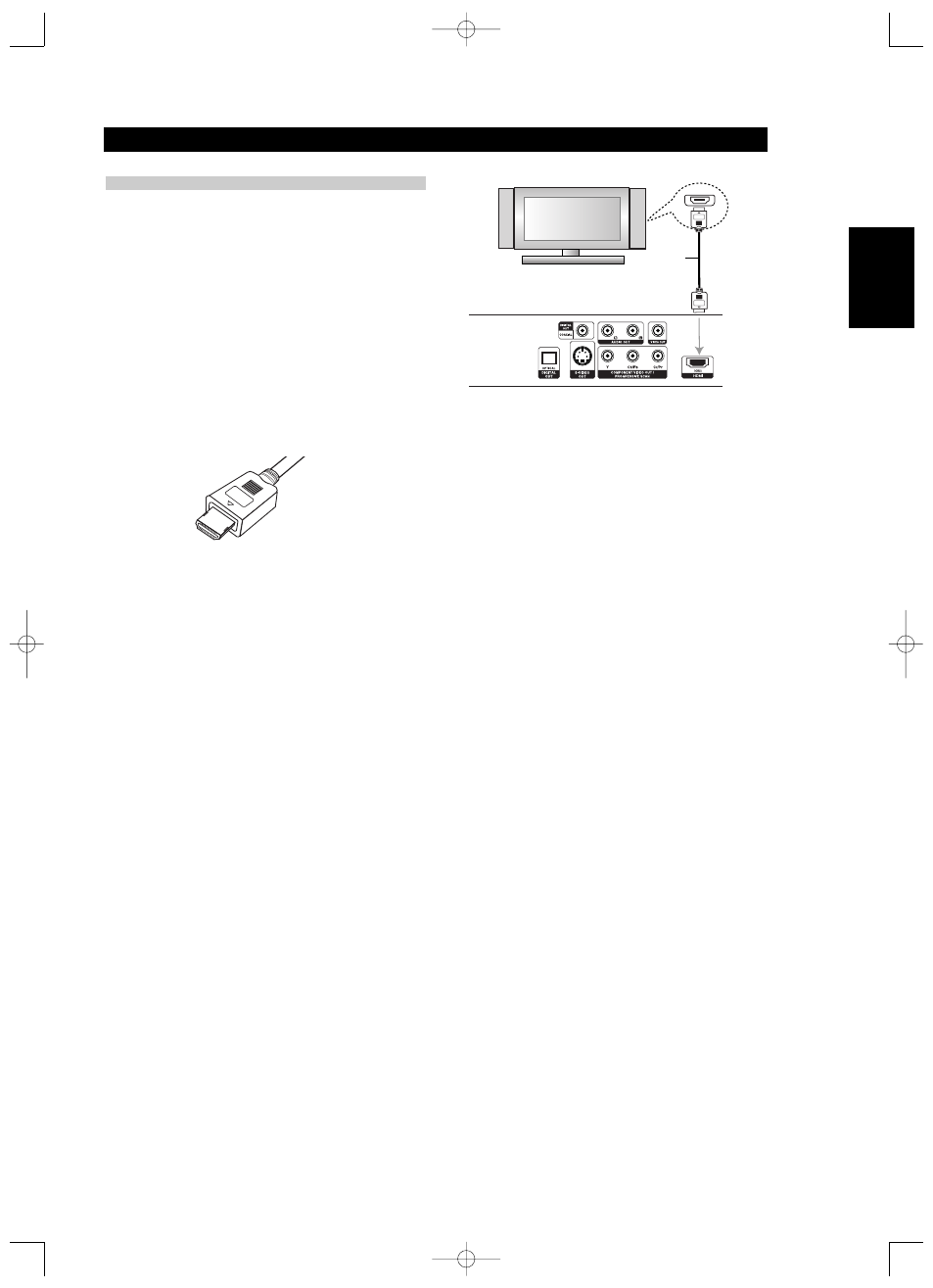

1 Connect the HDMI OUT jack on the player to the HDMI jack on a
HDMI compatible TV or monitor (H).
2 Set the TV’s source to HDMI (refer to TV’s Owner’s manual).
3 In stop mode, set the video output switch to HDMI.
Press RESOLUTION repeatedly to select the resolution you wish to
change to then press PLAY.
The DVD disc must not be playing in order to set the resolution.
NOTES
• No sound will be output from HDMI cable if the AUDIO setup is not
set to PCM.
• The arrow on the cable connector body should face up for correct
alignment with the connector on the player.
• When you use HDMI, the other connections (Yellow VIDEO OUT,
S-Video and Component Video (Y Cb/Pb Cr/Pr)) will not work.
• If there is noise or lines on the screen, please check the HDMI cable.
TIP
When you use HDMI connection, you can change the resolution
(480p, 720p, 1080i) for the HDMI output by pressing RESOLUTION.
480i is not available. You can only change the resolution within your
TV’s and Monitor’s resolution capabilities.
For S-VIDEO OUT connection, black and white scramble signal
will appear if you select an incompatible resolution.
ABOUT HDMI
HDMI (High Definition Multimedia Interface) supports both video and
audio on a single digital connection for use with DVD Players, Set-Top
Boxes, and other AV devices.
HDMI was developed to provide the technologies of HDCP (High
Definition Contents Protection). HDCP is used to protect digital content
transmitted and received.
HDMI has the capability to support standard, enhanced, or high-
definition video plus standard to multi-channel surround-sound audio,
HDMI features include uncompressed digital video, a bandwidth of up
to 5 gigabytes per second, one connector (instead of several cables and
connectors), and communication between the AV source and AV
devices such as DTVs.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI licensing LLC.
