Installation Considerations
Placement of the PAR4
Place the PAR4 conveniently close to the main system unit it
will connect to. Generally, the PAR4 is placed in a concealed
location because its indicator lights are only used during instal-
lation. Placement possibilities include:
1. Table-top (on the floor or shelf behind the equipment)
(Figure 2).
2. Wall-mount (affixed to the back of the equipment cabinet
or a nearby wall) (Figure 3).
5
S I M P L I F I E D I N F R A R E D R O U T E R
Figure 2: Table-top placement
Affix the enclosed self-adhesive
rubber feet to the base of the PAR4.
Self-Adhesive
Rubber Feet
1 2 3 4
POWER
+12V DC
FLASHER OUTPUTS
MSU14
IR MAIN SYSTE
INPUT 1

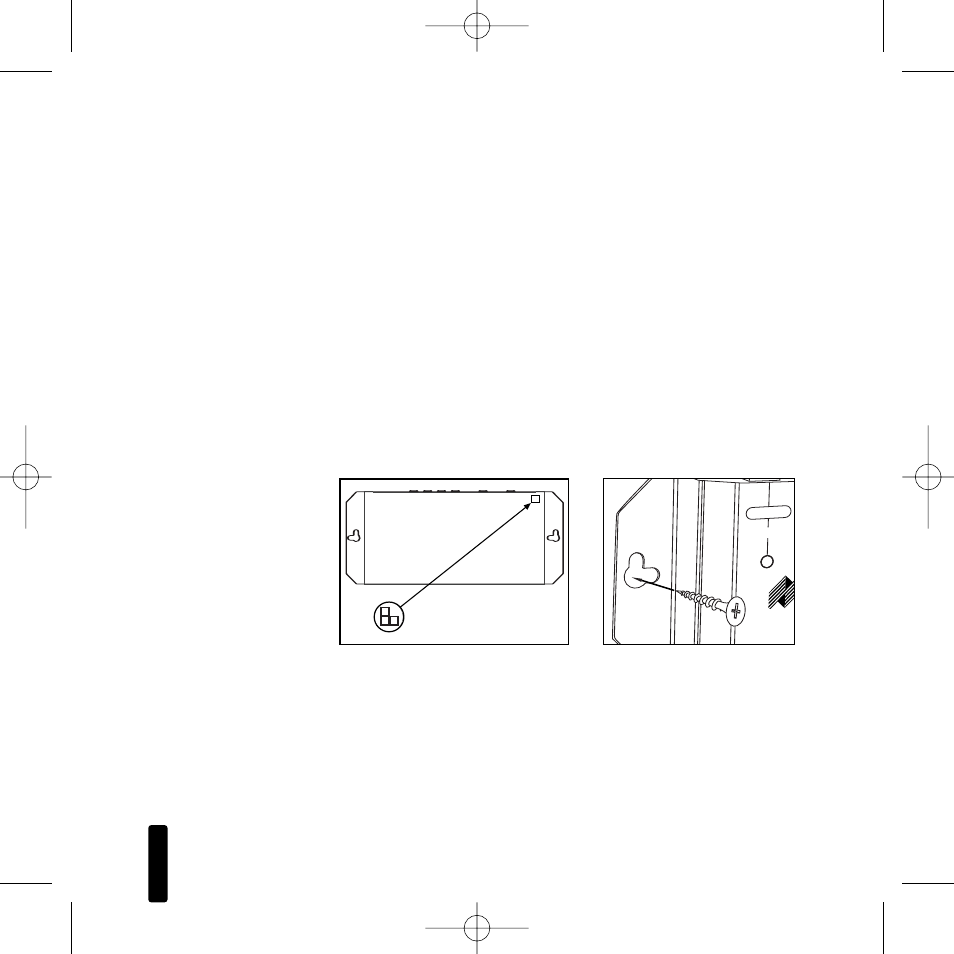

Figure 3: Wall-mount placement
Use sheetrock screws.
PAR4 Base
