A.5 Open-Ended SMART ANTENNA Cable
For the RS-232 SMART ANTENNA, this cable provides an unterminated cable end for connecting directly to
other equipment. Figure 22 shows the 6-pin version of the cable. See also Table 2, Cable Variations on Page 17
and the 7-pin and 6-pin connector pin assignments on the SMART ANTENNA in Section A.3.1, RS-232
starting on Page 38.
For the RS-422 SMART ANTENNA, two lengths of this cable are available. See also Table 2 on Page 17 and
the 12-pin connector pin assignments on the SMART ANTENNA in Section A.3.2, RS-422 on Page 40.
See also the Open-Ended SMART ANTENNA Cable on Page 16 and Table 6, Connector Variations on Page 41.

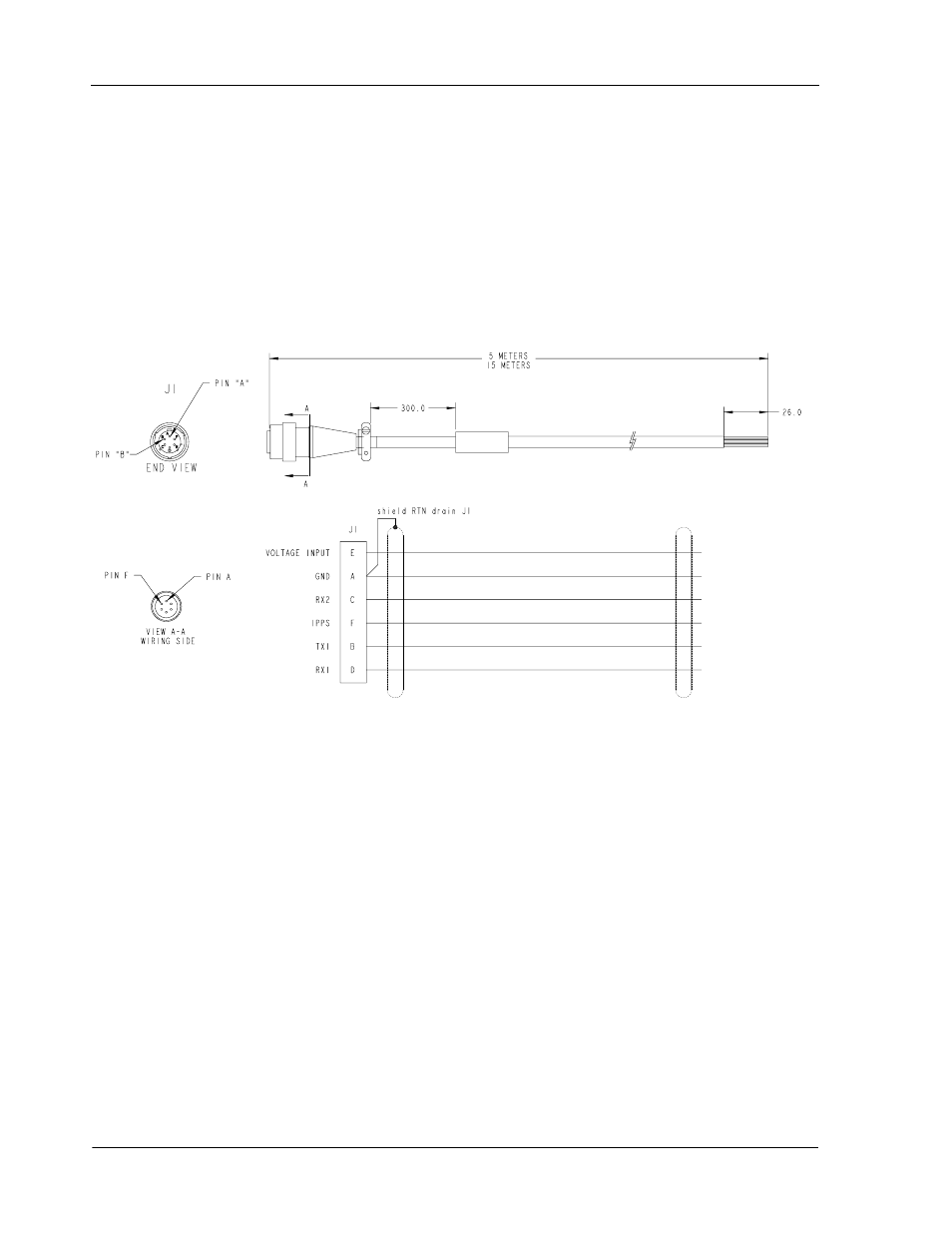

Figure 22: RS-232 6-Pin Open-Ended SMART ANTENNA Cable
