ALL OFF button
turns your entire
system off.
Individual ON / OFF but-
tons for each pair
of speakers.
FEATURES AND BENEFITS
RSL-6
P R E L I M I N A R Y T E C H N I C A L D A T A S H E E T
SPECIFICATIONS
IR Range
30 feet @ 30 degrees
off-axis
Audio Power
Handling
250 watts/channel con-
tinuous music power
Frequency Response
20 Hz to 20kHz +0dB,
-0dB (flat)
Mounting
Table-top component
Wiring Requirements
Individual runs of
2-conductor speaker
wire. Connectors can
accommodate 14-22
gauge
Overall Dimensions
17" Wide x 2" High x
8-3/4" Deep
Weight 6-1/2 LBS
RSL-6
Remote Controlled Speaker Selection System
CONTINUED OTHER SIDE
FEATURES AND BENEFITS
RSL- 6 REMOTE HIGH DEFINITION SPEAKER SELECTION SYSTEM
ALL ON ALL OFF
1 2 3 4 5 6
INTRODUCTION INTRODUCTION
The RSL-6 is a Infrared Remote
Controlled Speaker Selection
System for up to six pairs of
speakers. The supplied remote
control enables you to select
any pair, any combination
of pairs, or all six pairs of
speakers at once. You don’t have
to worry about overloading your
amplifier. The RSL-6 has a programmable
microprocessor that constantly monitors
which speakers are playing and selects exact-
ly the right amount of protection for your
amplifier.
Remote Control
The slim, elegant remote con-
trol (included) allows you to
completely control which
speakers are playing. Each pair
of speakers has its own
ON / OFF
button. In addition, a program-
mable
ALL ON button (you
select which rooms will turn
on) and an
ALL OFF button
allow you to conveniently stop
or start your music with one
touch!
Computerized Protection
The brain of the RSL-6 is an eight
bit modified Harvard Architec-
ture Microcontroller. The micro-
controller is programmed to
remember the impedance of
each of your speaker pairs and
your amplifier’s ideal load. It
constantly monitors how many
speaker pairs are playing (and
which pairs), calculates the
exact amount of impedance
protection necessary, and pro-
vides the proper amount of pro-
tection for your amplifier.
Room LED’s and Labels.
Red LED’s indicate when a pair
of speakers is on. 72 pre-print-
ed room labels are included for
easy identification.
X-10 ® Powerline Control
Using optional X-10 wireless
remotes and controllers you
can control the RSL-6 through
the existing 120v AC electrical
wires in your home. Optional
Niles TW-523 interface module
is required.
Proudly Made in USA
The RSL-6 is made in Miami,
Florida and comes with a limit-
ed two year parts and labor
warranty.

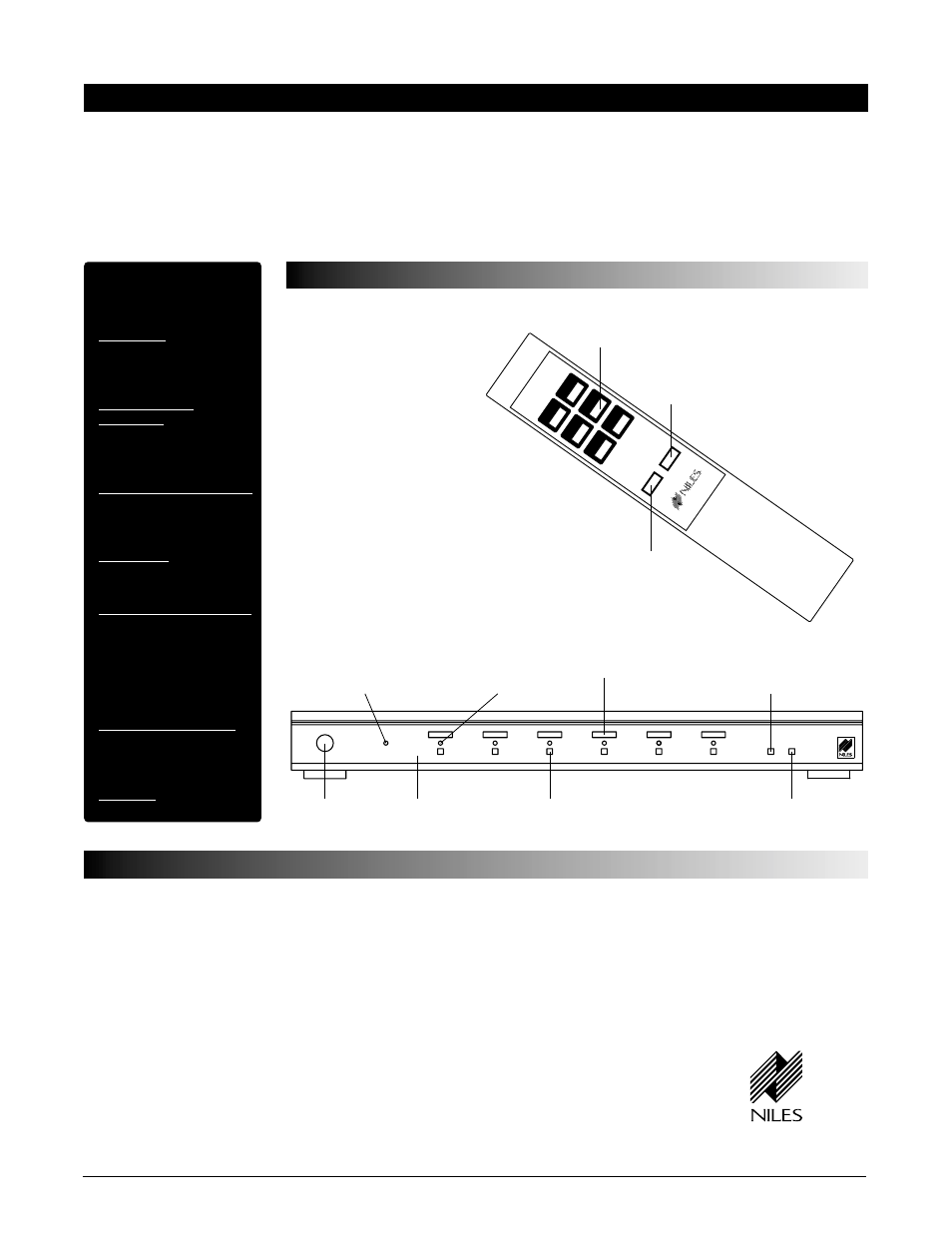

ALL OFF button turns your
entire system off.
ALL - ON button enables you to
turn on all or some of your speakers
depending upon the rear panel DIP
switch settings.
Recessed areas for
custom room labels.
Attractive low-
profile design.
Red POWER LED turns green
momentarily confirming that an
IR command was detected.
ALL - ON button enables you to turn on
all or some of your speakers depending
upon the rear panel DIP switch settings.
Infrared Sensor
Hand-held IR
remote gives you
convenient control.
Red LED indicators
for each pair of
speakers.
Simple push-button ON / OFF
operation for each pair.
B L E N D I N G H I G H F I D E L I T Y
A N D A R C H I T E C T U R E ®
SPEAKER
SELECTOR
REMOTE
SPKR
1
SPKR
2
SPKR
3
SPKR
4
SPKR
5
SPKR
6
ALL
O
N
A LL OFF
