Installation of
Brackets, Frames
and Grilles in
New Construction
Stage One: Before Drywall is Hung
Insulating the Wall Cavity.
If feasible, fill the wall cavity with insula-
tion at this point.
Attach the wings to the bracket by snapping
them into the sides of the bracket. The
wings can be shortened by breaking them
along the scored lines if their length will
interfere with a corner or eaves. You can
mount the bracket horizontally or vertically
(See Figure 13).
Ins
talla
tion o
f Br
ack
ets, F
rames and Grilles in Ne
w Cons
tr
uc
tion

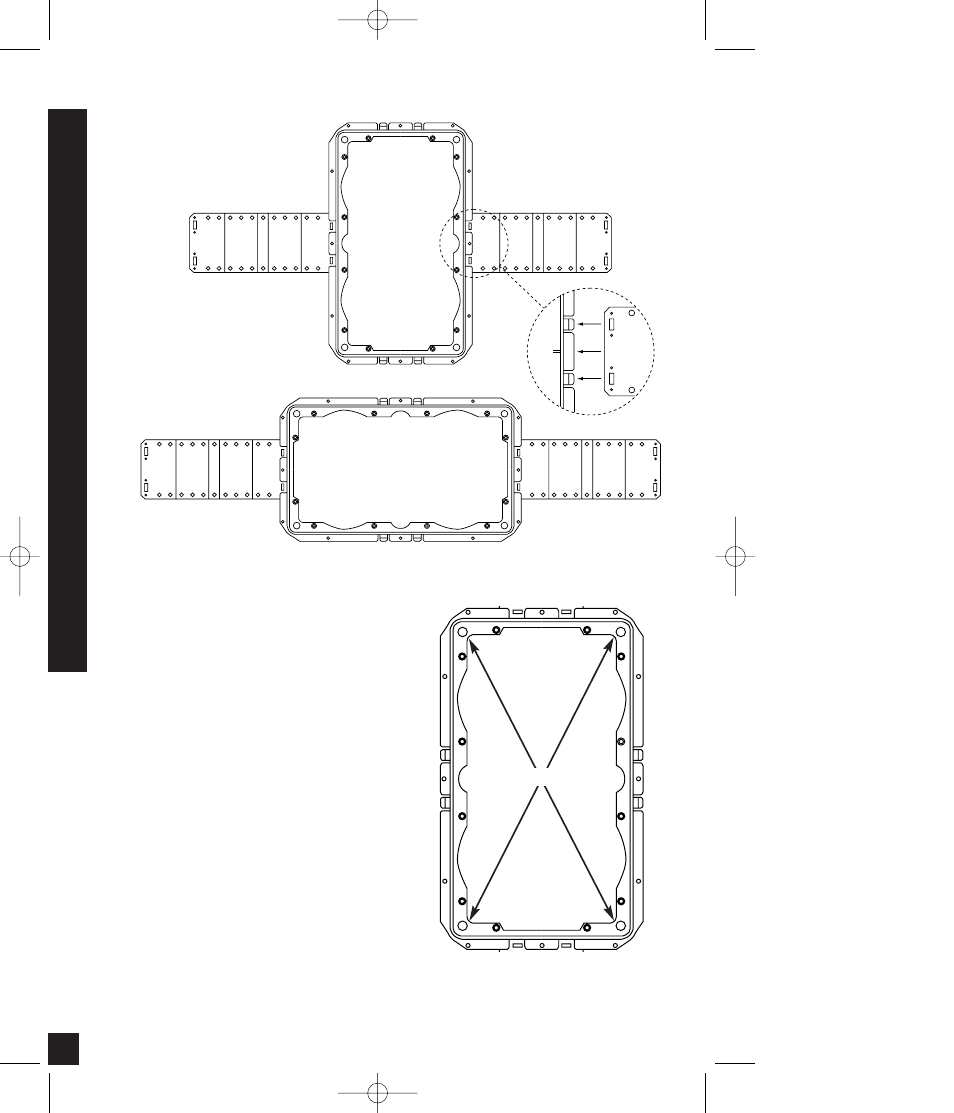

Figure 13
Figure 14
4 Wire Ties
14
