NEW CONSTRUCTION: INSTALLING A BRACKET
The hole-saving bracket enables a faster and cleaner fi nal installation of the loudspeaker. It forces
the drywall installer to cut out the loudspeaker hole for you and provides wire ties for the loud-
speaker wire, reducing the risks of accidental loss or movement of the wire. In addition, it enables
you to align your loudspeakers with other ceiling fi xtures with greater accuracy, since you can see
exactly where the loudspeaker will be.
INSTALLING THE BRACKET
1. Attach the QuickSnap™ new-construction wings to the bracket by snapping them into
the bracket sides, as shown in Figure 10. If the length will interfere with corner or
eaves, shorten the wings by breaking them along the scored lines.
2. Screw one side of the assembled bracket with wings to the stud or joist, using one
of the supplied screws. Level the bracket, and then screw the other side of the
bracket/wing assembly to the stud or joist. Two screws on each side make for a
very secure installation.
3. Attach the wire to the bracket at the indicated wire tie points, as shown in Figure 11.
14
4 Wire T
ies

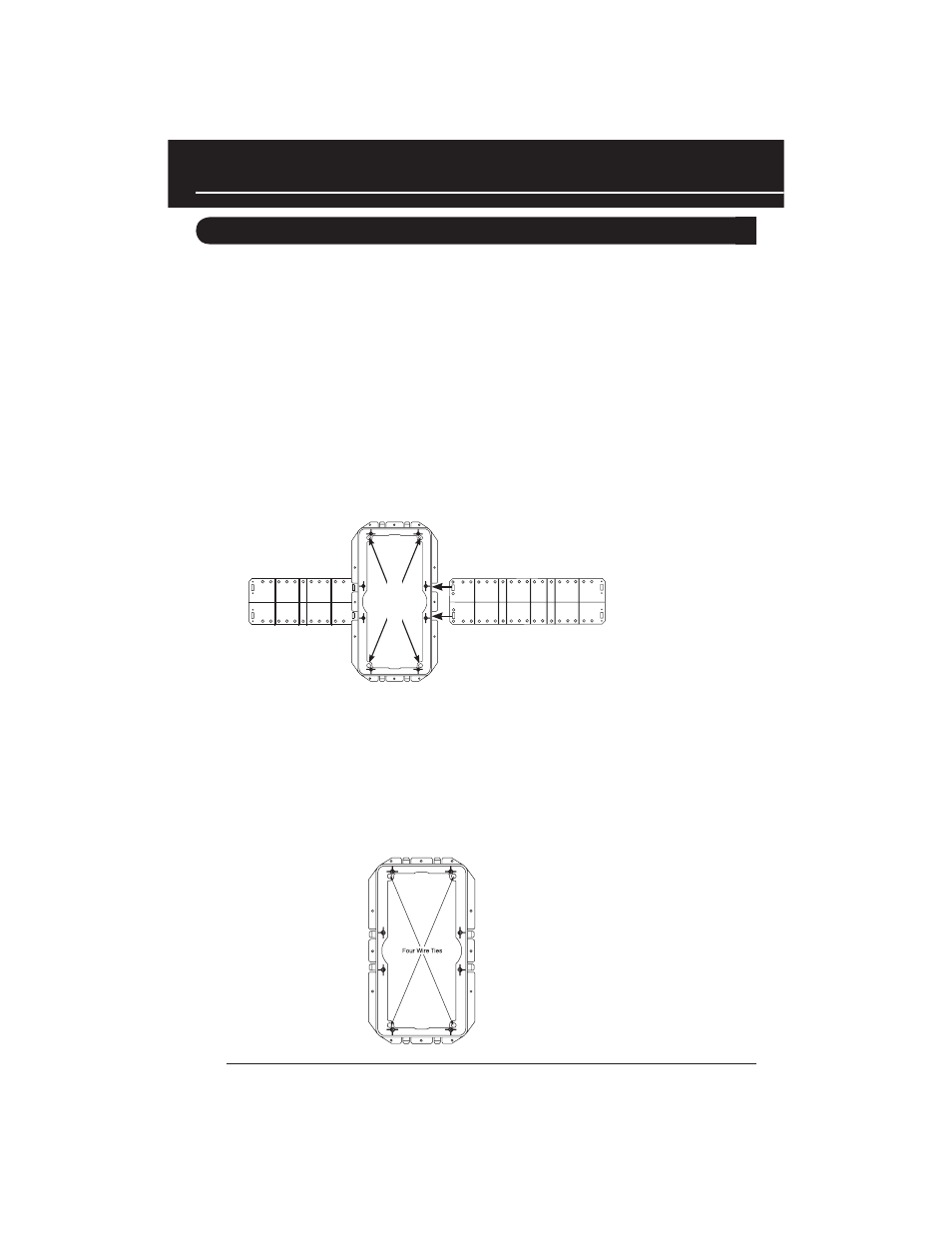

Figure 10. The hole-saving brackets include
QuickSnap new-construction wings.
Figure 11. The brackets have
four wire-tie points.
