NTI UNIMUX SERIES USB KVM SWITCH
4
FEATURES AND FUNCTIONS
1. RS232- DIP switches for configuring switch address when RS232 is used
2. DDC- for refreshing the DDC information between the monitor and CPU
3. CPU Select Switches- push to manually switch to a specific CPU or change the switch operating mode
4. CPU Status LEDs- for visual indication of connection between the user and a specific CPU.
5. Mode Status LEDs- for visual indication of switch operating mode
6. IEC Connector w/Built-in 2A 240VAC Replaceable Fuse- for attachment of the IEC power cord to power the UNIMUX
7. Switch- for powering ON and OFF the UNIMUX
8. RS232- RJ45 serial connector- for attachment of RS232 control cable
9. CPU x- HDMI Type A female connector- for connection of the cable from the CPU(s)
10. MONITOR- female DVI connector- for connecting DVI cable from user monitor
11. USB- USB type A female connector- for connection of user USB keyboard and mouse
9

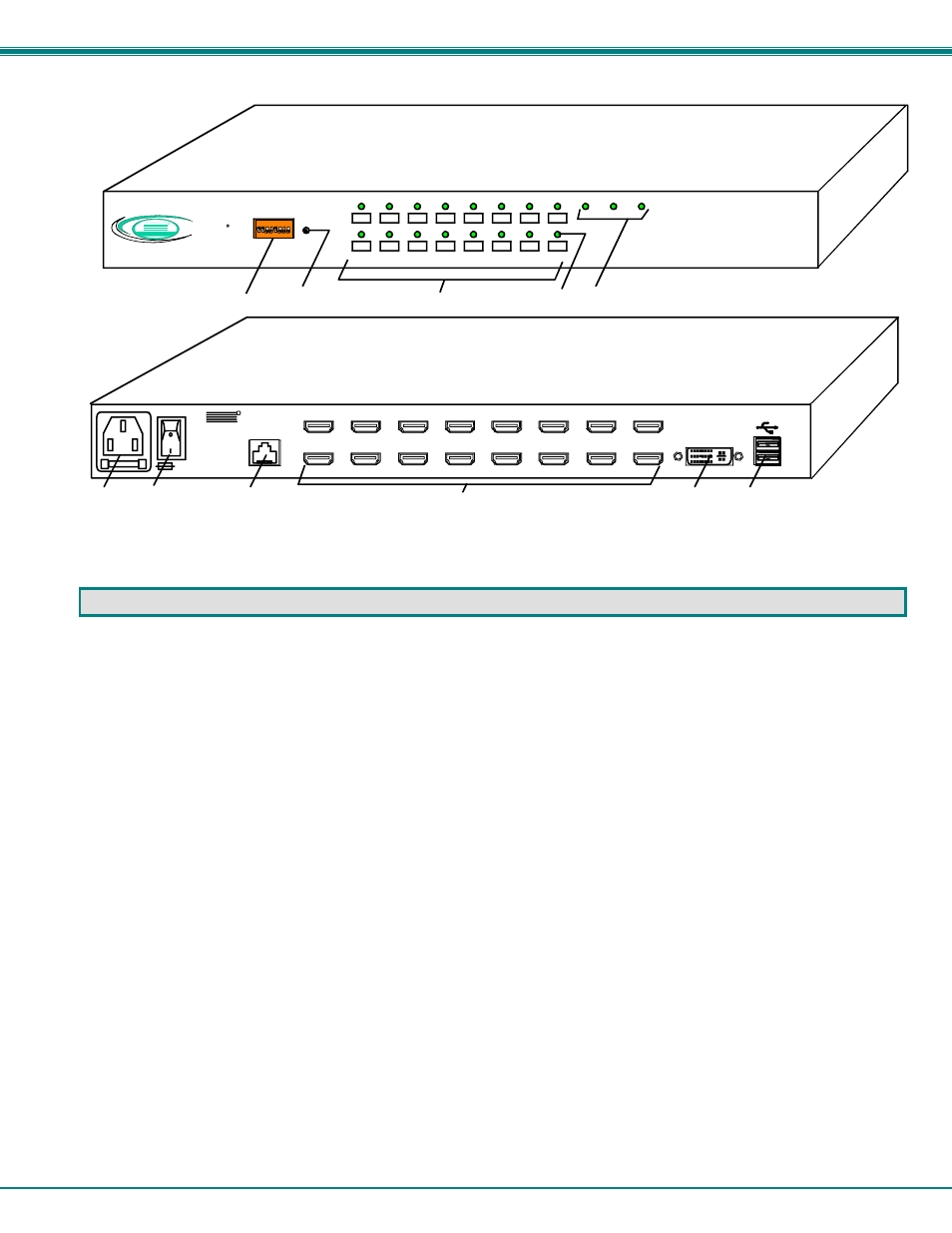

Rear View of UNIMUX-DVI-16HD
1
3
5
Front View of UNIMUX-DVI-16HD
6
8
2
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Scan
Command
Broadcast
RS232
UNIMUX
R
DDC
NTI
R
Network Technologies Inc
CPU 1
CPU 2
CPU 3
CPU 4
CPU 5
CPU 6
CPU 7
CPU 8
CPU 9
CPU 10
CPU 11
CPU 12
CPU 13
CPU 14
CPU 15
CPU 16
RS232
250V,2A
MONITOR
NTI
Tel:330-562-7070
Fax:330-562-1999
1275 Danner Dr
Aurora, OH 44202
www.networktechinc.com
R
7
11
10
4
1
8
ON
