WHAT’S ON THE BACK PANEL
WHAT’S ON THE FRONT PANEL

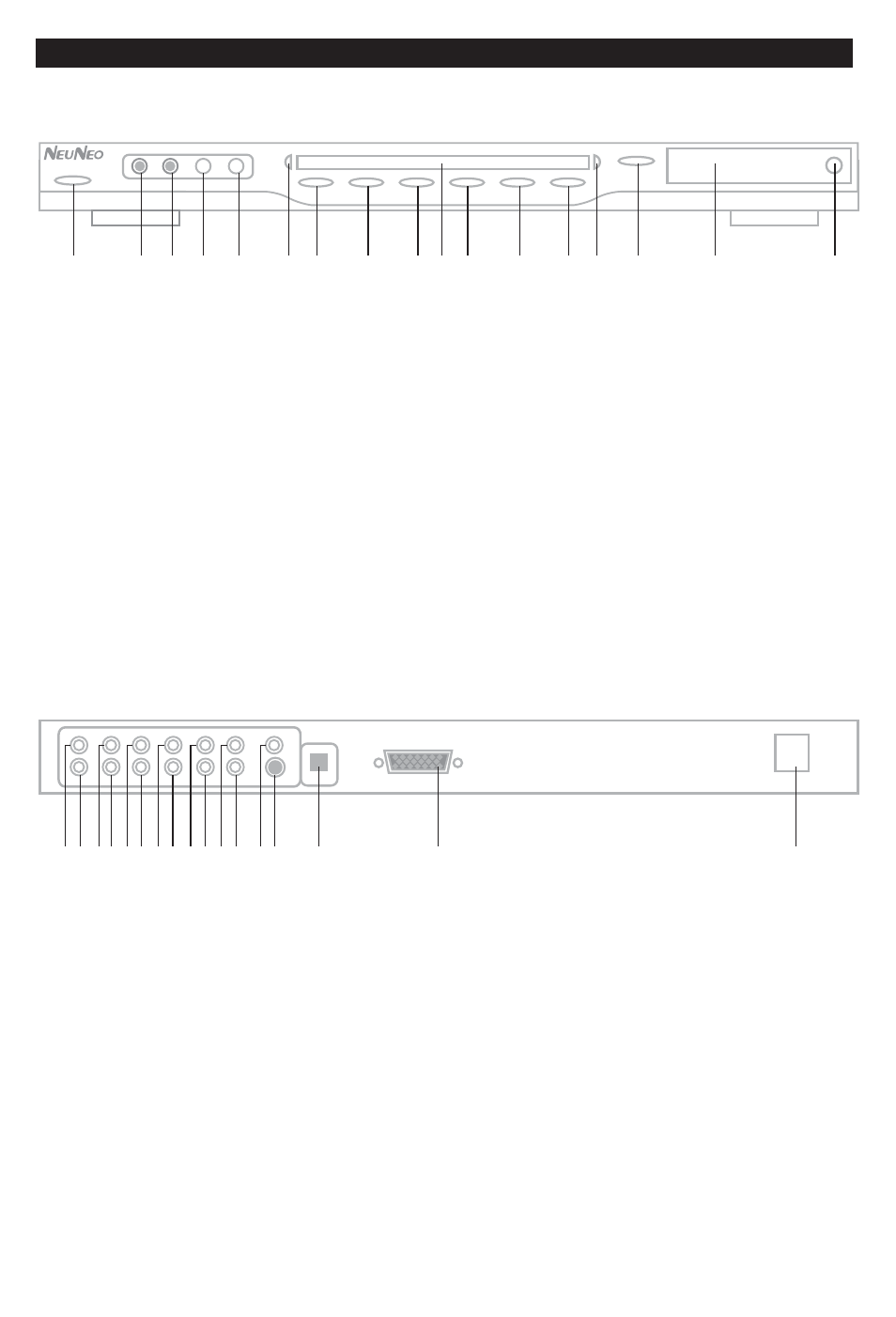

GET TO KNOW THIS PLAYER
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
1. Power button
2. Microphone Jack 1
3. Microphone Jack 2
4. Microphone Volume 1
5. Microphone Volume 2
6. Power LED Light
7. Previous
8. Next
9. NTSC/PAL switch
10. Disc tray
11. Left / Right channel switch
12. Play / Pause
13. Stop
14. Power LED Light
15. Disc tray open/close button
16. Display window
17. Remote control signal sensor
R
L CENT
SW
SUR-L
SUR-R
FRONT-L
FRONT-R
Y
COAXIAL
Pb/Cb
Pr/Cr
VIDEO
S-VIDEO OPTICAL VGA AC 100-240V
1 2 7 3 4 5 6 8 9 10 1112 1314 15 16 17
1. 2 channel stereo left channel output
2. 2 channel stereo right channel output
3. 5.1 channel center speaker output
4. 5.1 channel subwoofer output
5. 5.1 channel left surround speaker output
6. 5.1 channel right surround speaker output
7. 5.1 channel left front speaker output
8. 5.1 channel right front speaker output
9. Component Y output ( to yellow line)
10. Coaxial output
11. Component Pb/Cb output (to blue line)
12. Component Pr/Cr output (to red line)
13. Composite video output
14. S-video output
15. Optical output
16. VGA output
17. Power cable to 110-240V power source
