Flexible Arm Installation
This LCD monitor is designed for use with a fl exible arm.
To prepare the monitor for alternate mounting purposes:
•
Follow the instructions provided by the manufacturer of the display mount.
•
To meet the safety requirements, the mounting stand must be able to support the weight of the monitor and be UL-certifi ed.
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place a hand on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface (Figure S.1).
NOTE:
Handle with care when the monitor is facing down.

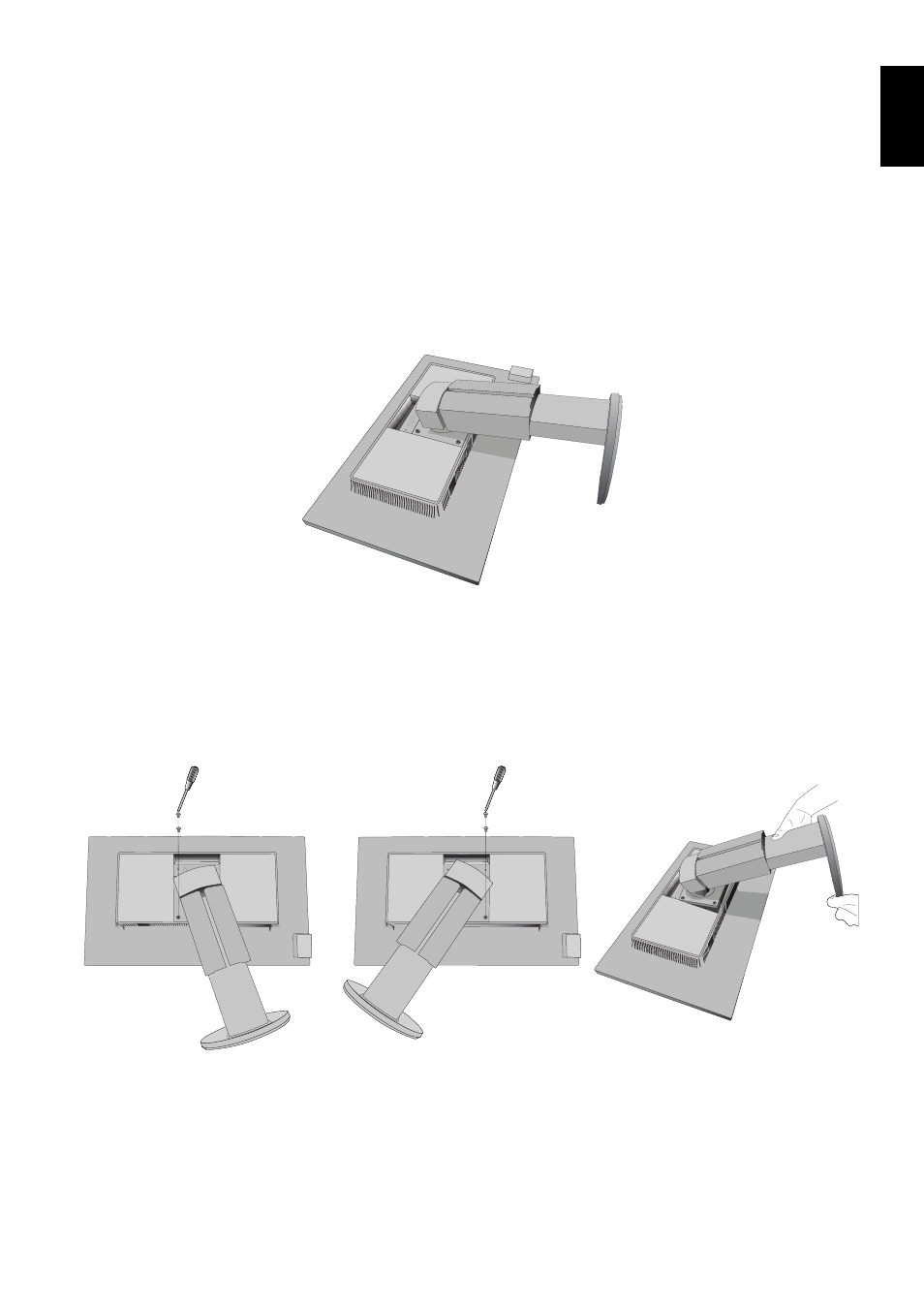

Figure S.1
4. Remove 2 bottom screws fi rst: Move stand left and right to remove bottom 2 screws (Figure S.2, S.3).
5. Remove 2 top screws.
6. Remove the stand (Figure S.4).
7. The monitor is now ready for mounting in an alternate manner.
8. Connect the cables to the back of the monitor.
NOTE:
Handle with care when removing monitor stand.
Figure S.2
Figure S.3
Figure S.4
