PHAZER TM logs and glowing embers, exclusive to Napoleon
Fireplaces, provide a unique and realistic glowing effect that
is different in every installation. Take the time to carefully
position the glowing embers for a maximum glowing effect.
Log colours
may vary. During the initial use of the fireplace,
the colours will become more uniform as colour pigments
burn in during the heat activated curing process.
1. Place the back log (#1) onto the log support tray and
in front of the tabs. The tabs maintain an air space between
the log and firebox back to facilitate combustion air flow.
Ensure that the back of the log rests against the brackets
on the back wall of the firebox.
2. Move the two small logs (#2 & #3) into position, lining
up the studs located on the
burner with the holes on the bottom of the logs.
3. Tear the glowing embers into pieces and place along
the front row of ports covering all of the burner area in front
of the small logs (#2 & #3). Care should be taken to shred
the embers into thin, small irregular pieces as only the ex-
posed edges of the fibre hairs will glow. The ember material
will only glow when exposed to direct flame; however, care
should be taken to not block the burner ports. Blocked burner
ports can cause an incorrect flame pattern, carbon deposits
4. Place the bottom of the left crossover log (#4) against
the left outermost grate post and the top into the pocket
provided on the back log. Position the notch located on the
end of the center log (#5) against the middle grate post
with the other end of the log resting in the pocket of the left
crossover log.
5. Place the bottom of the right crossover log (#6) against
the right outermost grate post and the top into the pocket
provided on the center log (#5).
Randomly place the charcoal embers along the front and
sides of the log support tray in a realistic manner.
Fine
dust found in the bottom of the bag should not be used.
Sprinkle vermiculite around the charcoal embers.
Note: Both charcoal embers and vermiculite are not to
be placed on the burner.
Place the lumps between the logs in a realistic manner
taking care not to block any of the burner ports.
#3
GLOWING EMBERS
#4
#5
#1

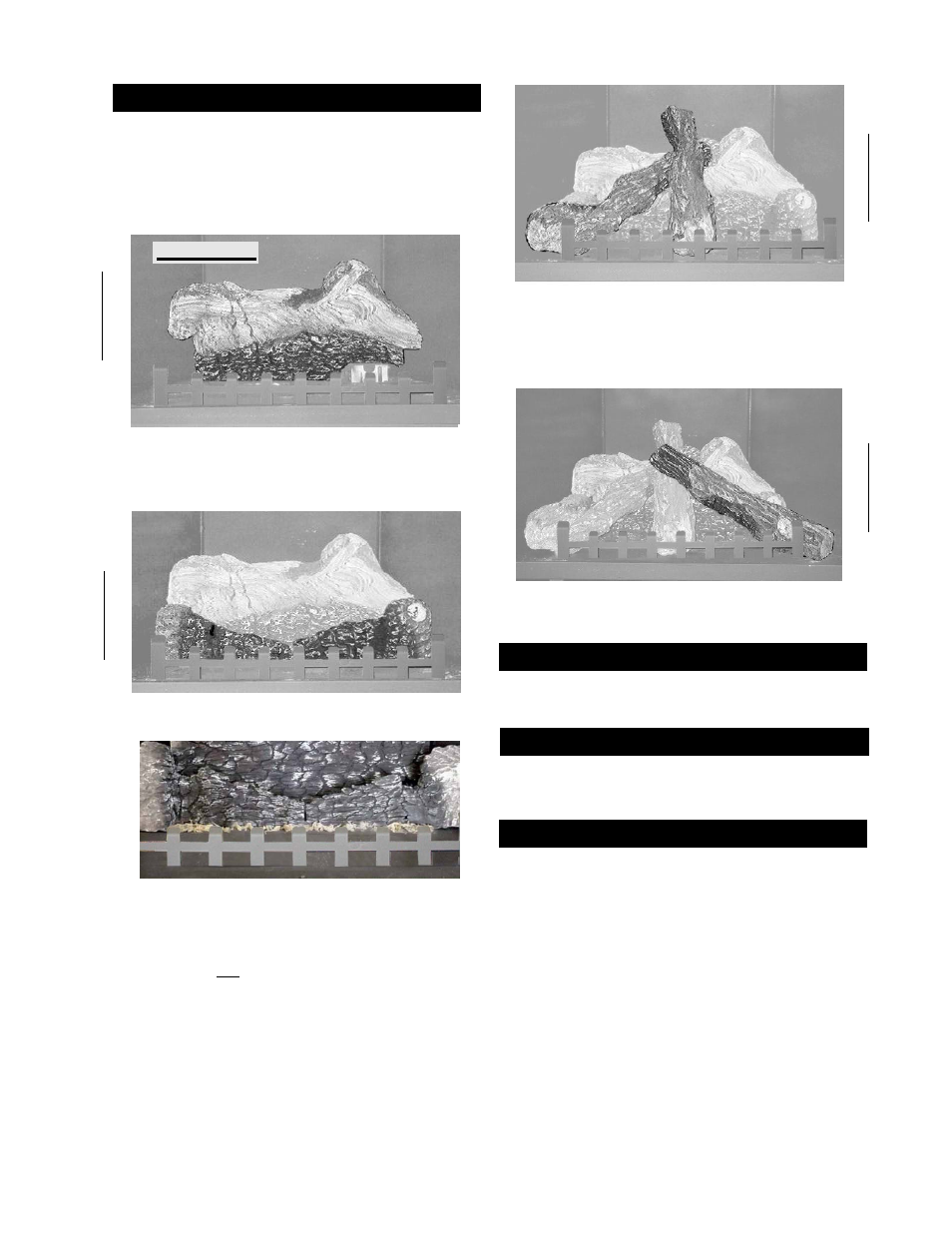

FIGURES 19a-e
#6
LOG PLACEMENT
CHARCOAL EMBERS
VERMICULITE
CHARCOAL LUMPS
#2
