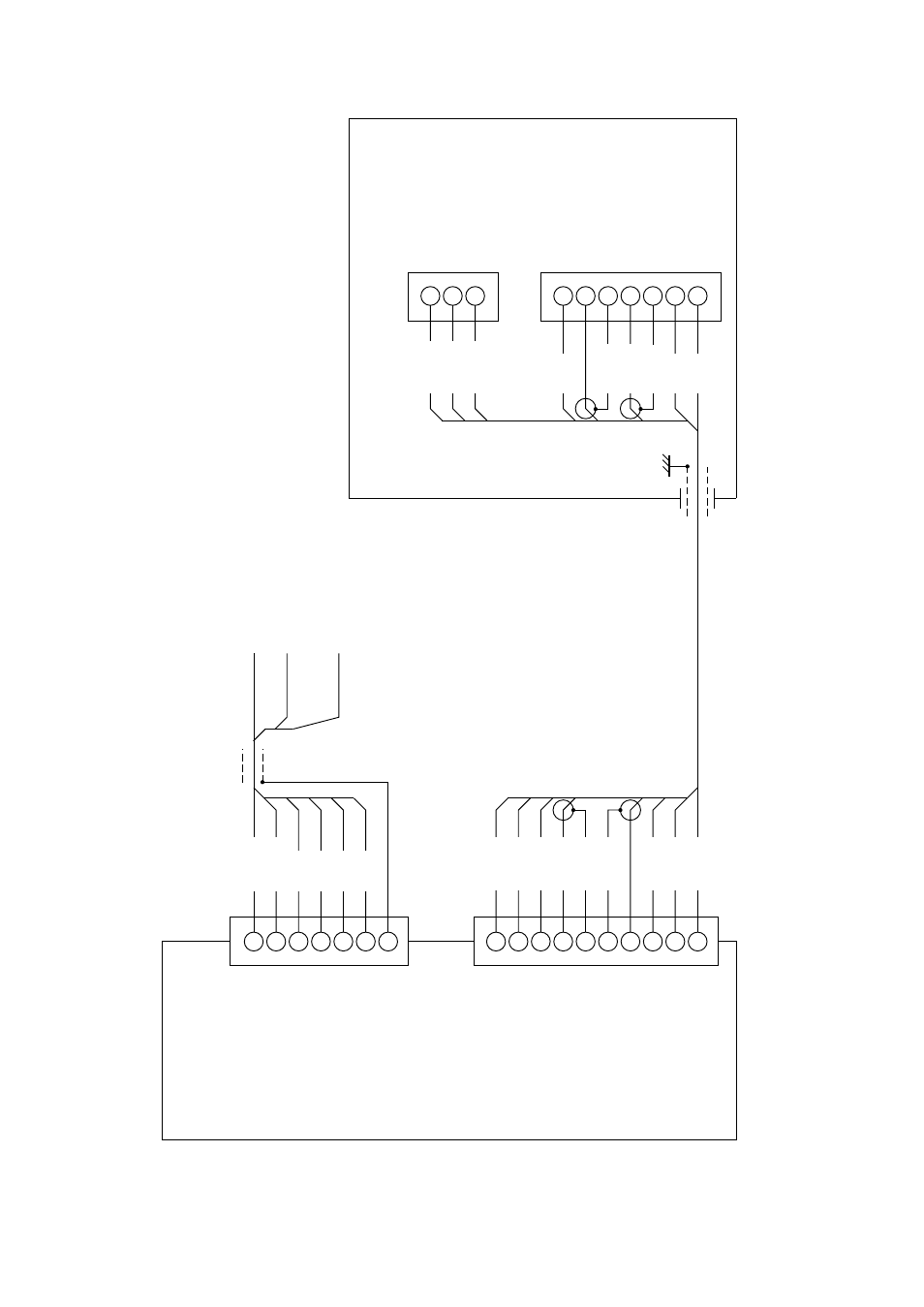

FIG. 3-7 INTERCONNECTION DIAGRAM
SHIP'S MAINTS (+) SHIP'S MAINTS (
–
)
NAV-AID (+) NAV-AID (
–
)
COMPASS (+) COMPASS (
–
)
E
1A 2A +12V TUNV TI/GS TIR/GSR VD VDR BZ/TUNI PW
1A 2A PW VD VDR TIR/GSR TI/GS BZ/TUNI TUNV +12V
P2 P1
P1 P2
T.RED T.BLK YEL GRN BLU WHI
TO SHIP'S POWER
DISPLAY UNIT NCD-3970
SCANNER UNIT NKE-1063
TO NAV-AID'S +:Data Output
–
:Data Ground
TO COMPASS'S +:Data Output
–
:Data Ground
T.RED T.BLU GRN COAX SHLD SHLD WHT YEL T.ORN
CFQ-8571-10(10m) CFQ-8768-15(15m) CFQ-8768-20(20m)
CFQ-8572 (2m)
T.RED T.BLU T.ORN YEL SHLD COAX SHLD WHI GRN
