Repair parts list – Pentair System 3 S8M600 User Manual
Page 10
Model No.
Key
S8M600
No.
Part Description
Qty. 600 Ft
2
Filters
1
2 Inch Gauge
1
33600-0023T
2
Air Release Valve
1
WC212-120P
3
Close Nipple 1/4 In.
1
35202-0959
4
Adapter Bushing
1
24900-0504
5
O-Ring
1
35505-1423
6
Large Cartridge
1
25022-0228S
7
Small Cartridge
1
25021-0225S
8
Air Bleed Filter
1
WC8-126
9
Air Bleed Tube
1
25021-0003
10
Baffle and Bulkhead Fitting
1
25021-0101
11
O-Ring
1
35505-1428
12
O-Ring
1
35505-1429
13
Elbow and Bulkhead Assembly
1
25021-0102
14
O-Ring
2
35505-1425
15
O-Ring
2
35505-1424
16
Adapter Fitting
1
24900-0509
17
1-1/2" NPT Plug
1
27001-0022S
18
Drain Plug
1
24900-0503
19
Bulkhead Retaining Nut
2
24752-0050
20
Clamp Assembly
8
24850-0200
21
Clamp Bolt
8
24850-0010
22
Lower Tank Half
1
24851-0103S
23
Cord Ring
1
24850-0009
24
Upper Tank Half Kit**
1
24851-9001
25
Valve and Gauge Assembly
(Includes Key Nos. 1-5)
1
24850-0105
*
Model Plate
1
32155-4178
*
Instruction Label
1
32155-4039
*
Warning Label
1
32165-4005
*
2" Slip 1/2 Union Kit
1
PKG 188
* Not Illustrated ** Includes all decals and labels.
10

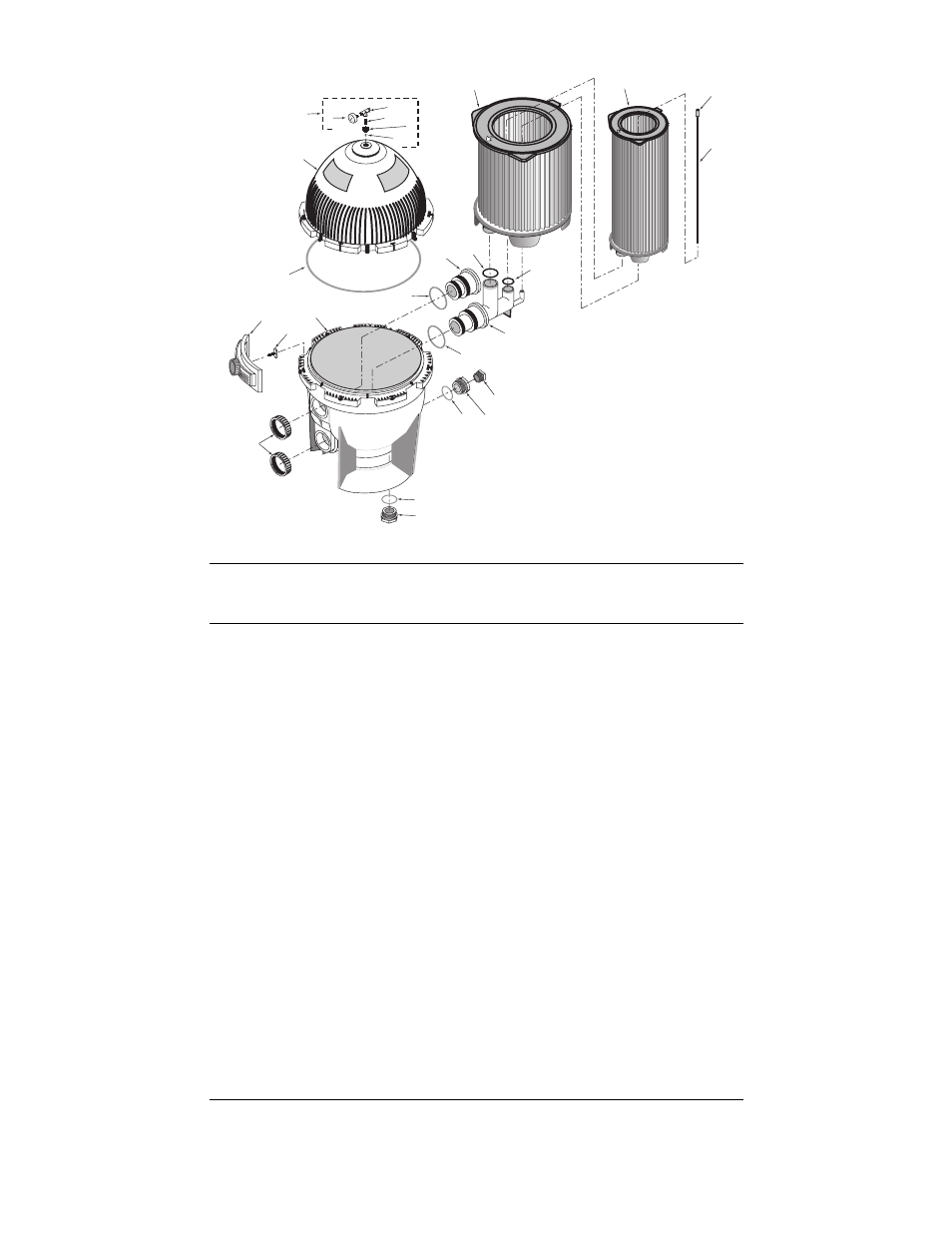

REPAIR PARTS LIST
