Page 44
Hardware Setup
2-9

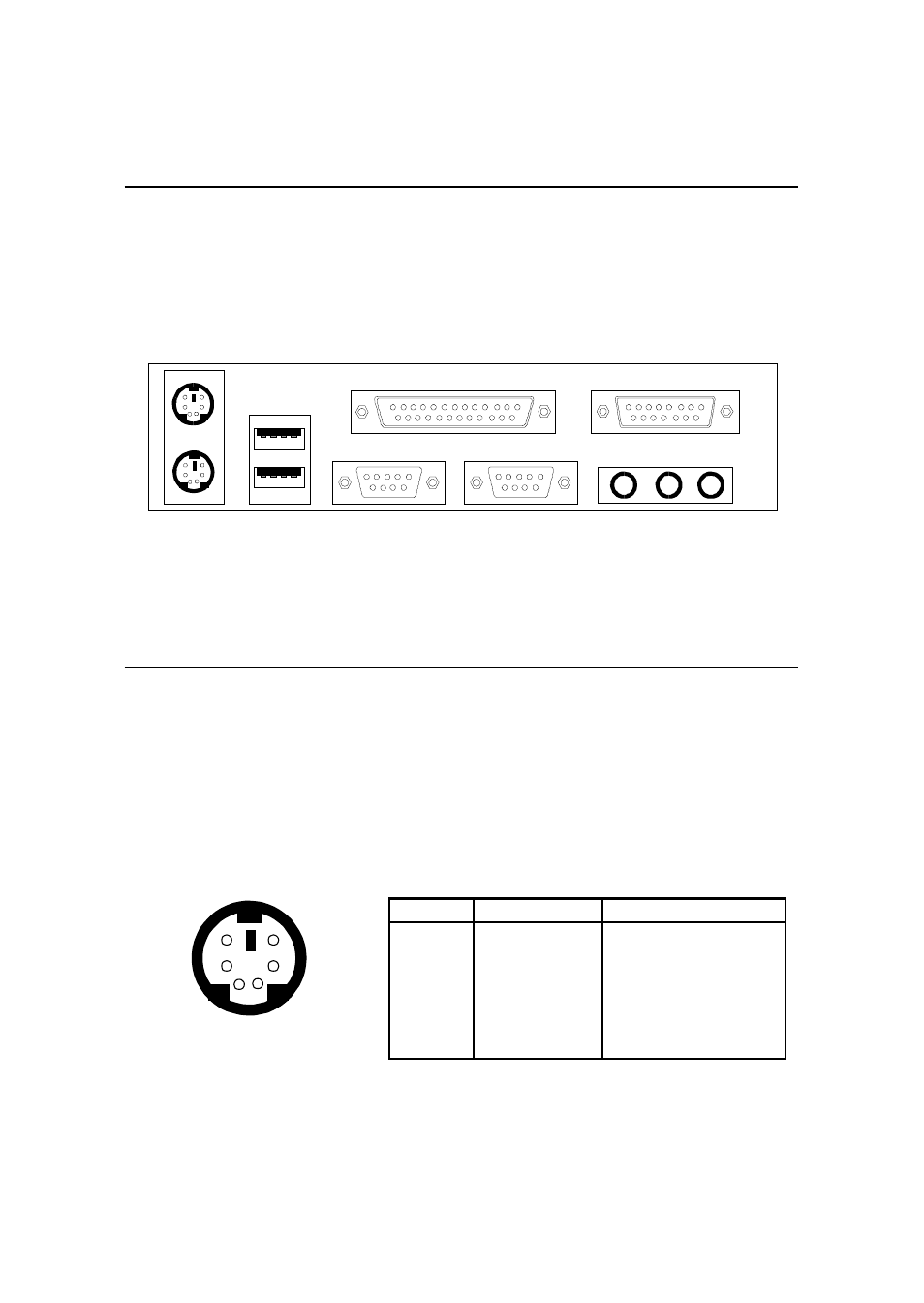

The Back Panel provides the following connectors:
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector
for attaching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this
connector.
Back Panel
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
PIN
SIGNAL
DESCRIPTION
1
Mouse DATA
Mouse DATA
2
NC
No connection
3
GND
Ground
4
VCC
+5V
5
Mouse Clock
Mouse clock
6
NC
No connection
Pin Definition
M o u s e
Keyboard
USB
Parallel
COM A
COM B
L-out
L-in MIC
Midi/Joystick
