Pentair D.E. Cartridge Style Filter Quad D.E. - Manual (Page 21)

15
Quad D.E. ® Filter Installation and User’s Guide
Section 7
Replacement Parts

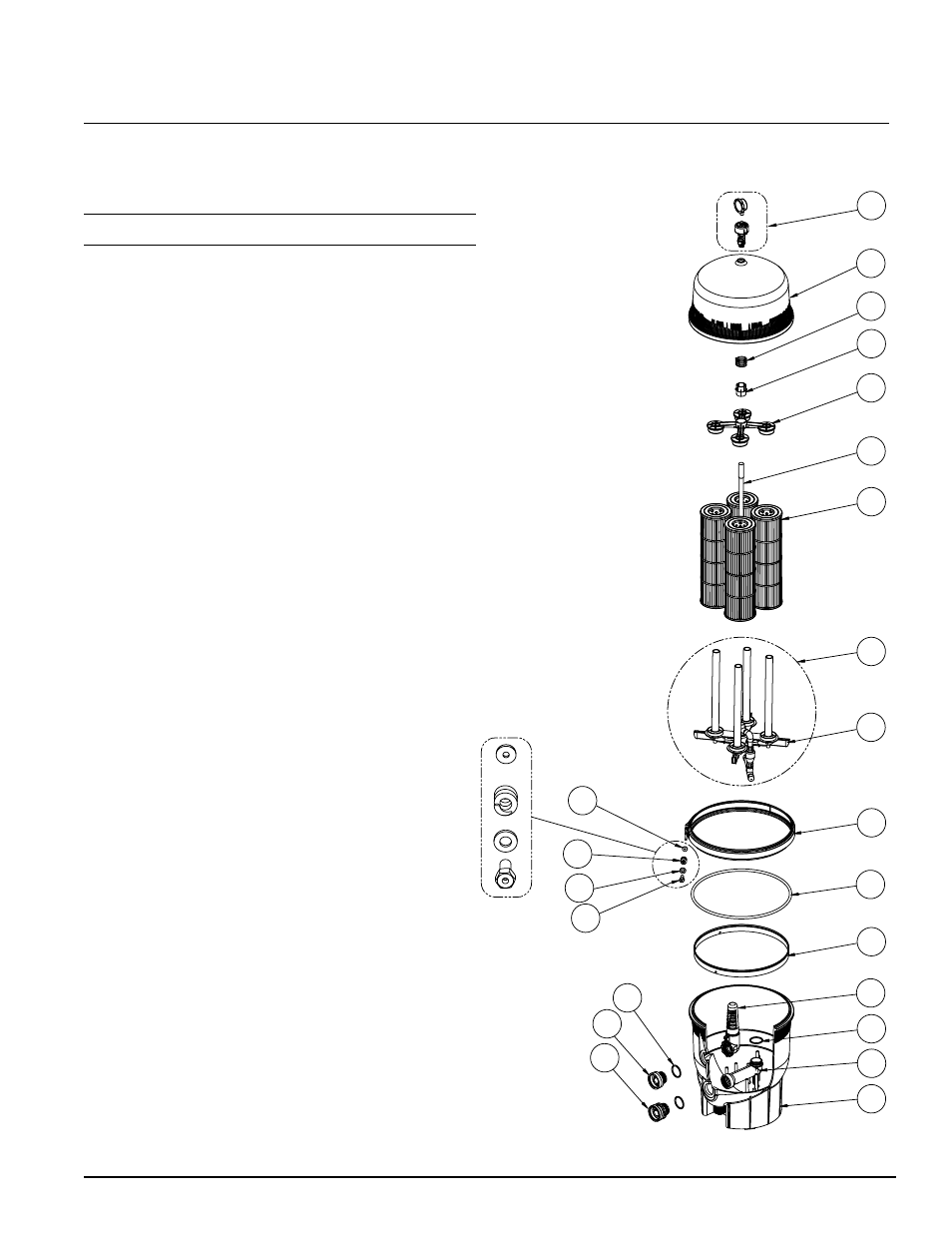

Replacement Parts List
ITEM P/N DESCRIPTION
1 98220100 ASSY. MANUAL AIR RELIEF VALVE
2 170024 LID, QUAD 60
2 178581 LID, QUAD 80
2 178582 LID, QUAD 100
3 178616 SPRING COMPRESSION - CNC PLS
4 178576 ADAPTER, SHORT
5 170014 MANIFOLD TOP CART - CNC PLS
6 170029 AIR BLEEDER ASSY., QUAD 60
6 170028 AIR BLEEDER ASSY., QUAD 80
6 178583 AIR BLEEDER ASSY., QUAD 100
7 190156 CARTRIDGE, QUAD 100
7 190152 CARTRIDGE, QUAD 80
7 190151 CARTRIDGE, QUAD 60
8 195981 BACKWASH ASSY. - QUAD DE 60
8 195982 BACKWASH ASSY. - QUAD DE 80
8 195983 BACKWASH ASSY. - QUAD DE 100
9 170059 MANIFOLD ASSY. BOTTOM - QUAD DE
10 53008600 CLAMP RPM FLT FINISHED
11 39010200 O-RING RPM TANK CLAMP
12 195339 RING BACKUP- FNS PLS CNC PLS
13 190039 BAFFLE ASSY. - CNC PLS
14 354571 O-RING 200-830 QUICK CONN.
15 178567 PIPE OUTLET - RPM FLTR
16 190089 BOTTOM TANK W/DRAIN PLUG 7.5"
17 178575 BULKHEAD BOTTOM - FNS PLS
18 194801 BULKHEAD - FNS 2 3/8-8 BUTT
19 86006900 O-RING 2-329 BULKHEAD RPM
20 194997 NUT - FNS/INS SPL
21 195611 WASHER - FNS/INS LG ID
22 195612 SPRING- FNS/INS
23 195610 WASHER - FNS/INS SM ID
1
2
3
4
5
6
7
9
10
8
11
12
13
19
18
17
22
21
20
23
14
15
16
