INSTALLATION
Note:

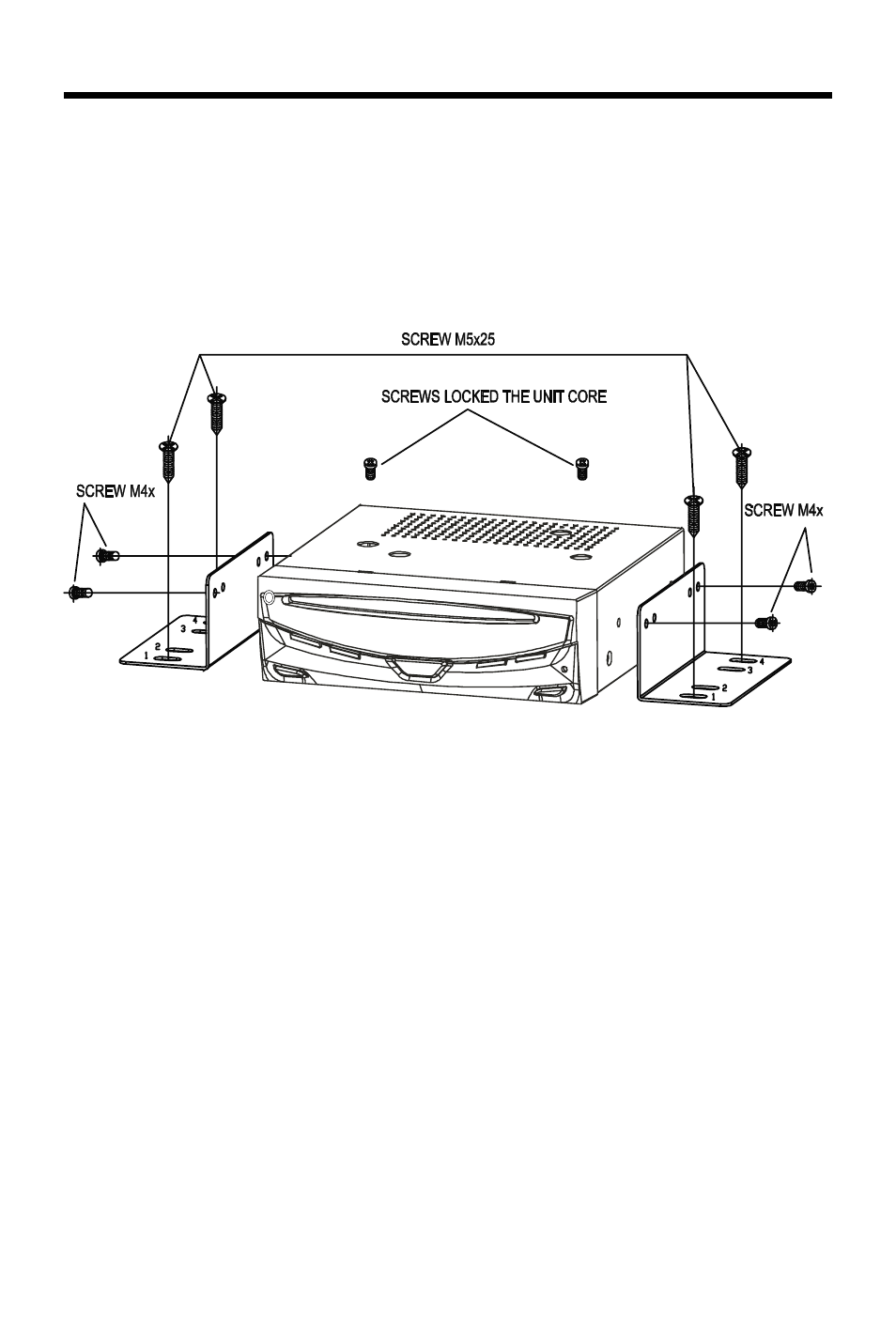

1. First remove the two screws that locket the unit core, then attach the brackets on
both sides of unit with screws (M4x6), last install the unit with screws (M5x25).
2. When fix the unit, you can slide the screw (M5x25) to left side or right side to meet
your needed position. In the figure above, select 1 and 3 position to fix the bracket,
and you can also select 2 and 4 position to fix the bracket.
