Parts list – Partner Tech 530084168 User Manual
Page 6
6
Note: Illustration may differ from actual model due to design changes

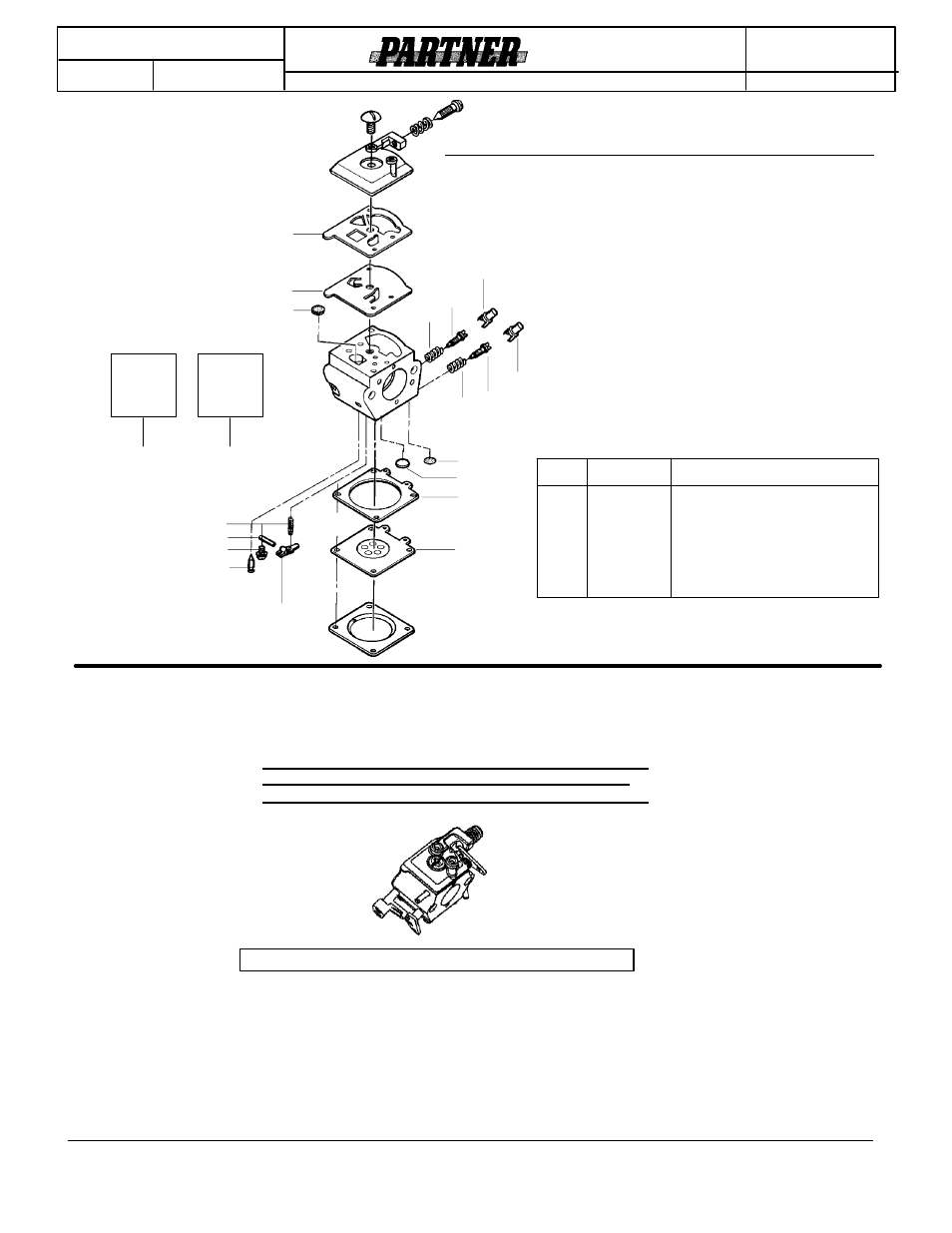

PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530084168
DATE
3/04/08
Replaces
PARTS LIST
530084168 --3/07/07
351,370,390,420
r
1.
530038479
Limiter Cap---High
2.
530038478
Limiter Cap---Low
3.
530069826
Carburetor Repair Kit
( KIT= Indicates Contents) &
Includes Limiter Caps
4.
530069844
Gasket/Diaphragm Kit
( D = Indicates Contents)
Ref.
Part No.
Description
3
Carb.
Repair
Kit
Carburetor Assembly --- WT---391 --- #530069722
1
2
KIT D
KIT D
KIT
KIT
KIT
KIT
KIT
KIT
KIT D
KIT D
KIT
KIT
Gasket/
Dia.
Kit
4
KIT
KIT
KIT
KIT
=
NEW PART NUMBER FOR THIS IPL
n
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
Kit -- Carburetor Assembly No. 530071621 -- WT--625
Note: No Repair kits are available for these carburetors
Kit -- Carburetor Assembly No. 530071820 -- W--20
Kit -- Carburetor Assembly No. 530071821 -- WT--662
