Overview of SL4050/10 key functions 17
SmartLink 4050 Series Getting Started Guide 1 • General information
Overview of SL4050/10 key functions

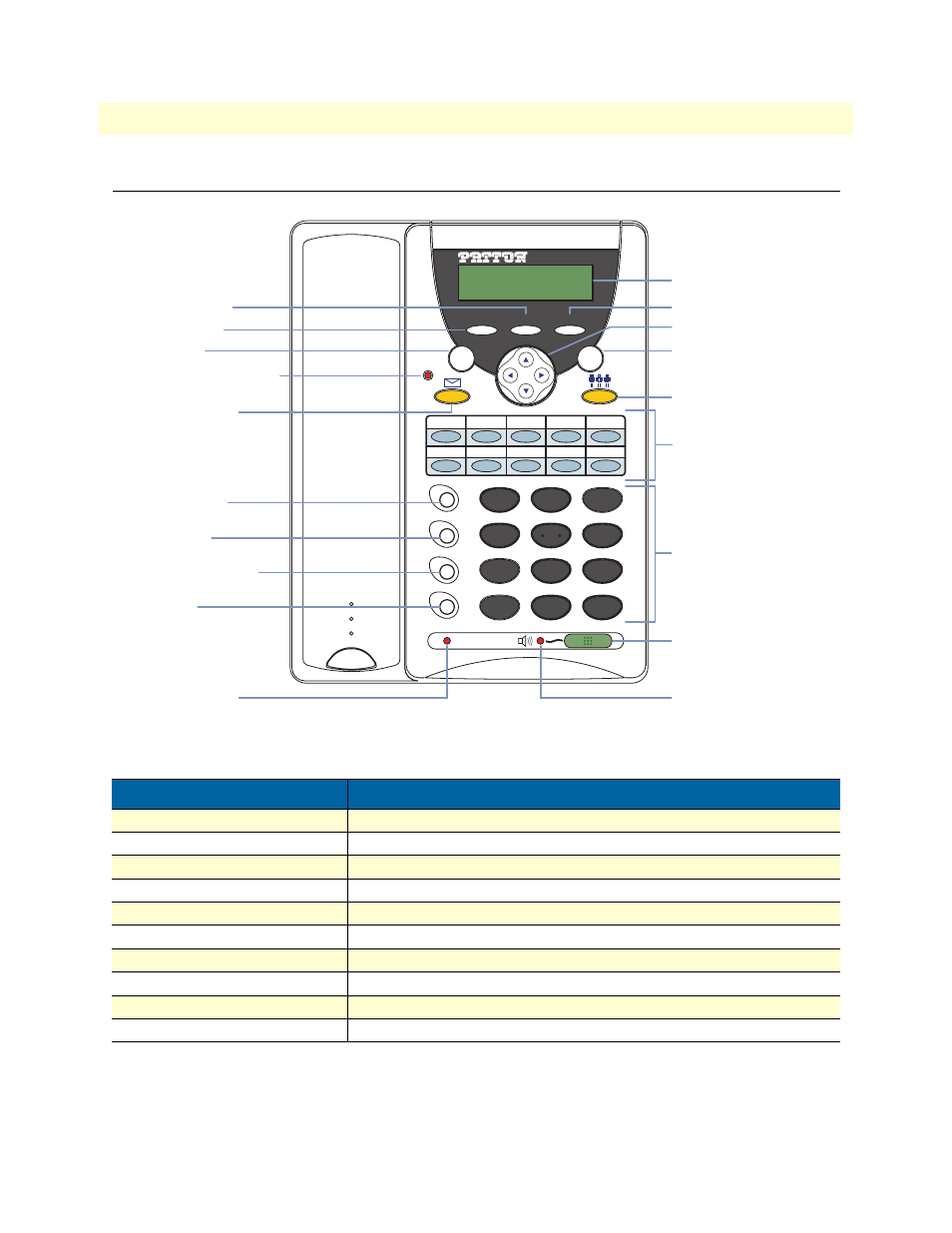

Figure 1. SmartLink 4050/10 SIP Phone controls and indicators
Table 2. Summary of SL4050/10 key functions
Item Description
LCD Display Displays menu, time, clock, name, phone number, call status
Menu Access the phone menu
OK Confirm setting change, exit menu, dial, save changes
Control Pad Backspace, scroll up or down, select enable or disable
3-Way Conference Enable 3-way conference
Local Multiline Switch to different lines
Numeric Keypad Input IP/phone number/alphabet characters
Speaker Phone Enable user to use the phone without using the handset
Speaker Phone Indicator Indicates that phone is currently in speaker phone mode
Phonebook Access the phonebook
PHONE BOOK MENU SPEED DIAL
CANCEL OK
M1 M2 M3 M4 M5
M6 M7 M8 M9 M10
Mute/Func.
Transf
er
Redial
Hold
1 2 3
ABC DEF
4 5 6
JKL MNO GHI
7 8 9
TUV WXYZ PQRS
* 0 #
OPER
SPEAKER
2x16 Characters LCD
Menu
OK
Control Pad
3-Way Conference
Local Multi-Line
Numeric Keypad
Speaker Phone
Speaker Phone Indicator
Phone Book
Speed Dial
Cancel
Voice Message Indicator
Voice Message
Mute/Func.
Transfer
Redial/Call History
Hold
Mute Indicator
