6
STEP 3:

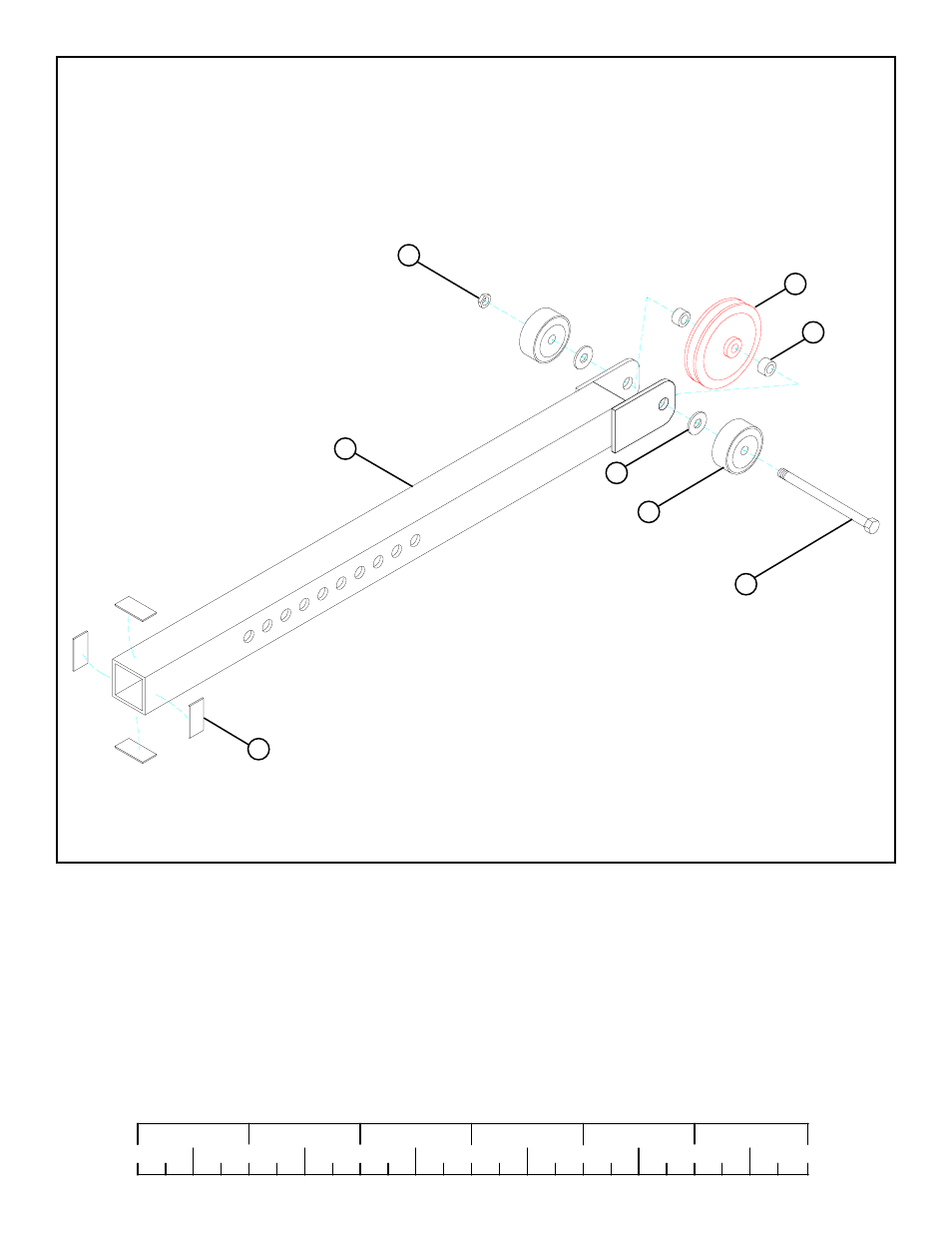

FIGURE 3
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
• Attach four PARAGLIDE STRIPS (14) to the outside of the ADJUSTMENT TUBE (7) using the following steps:
• Thoroughly clean all surfaces where the PARAGLIDE STRIPS (14) are to be attached.
• Remove the PARAGLIDE STRIPS (14) from the paper backing and firmly apply them to all shown surfaces.
• SECURELY assemble one 3-1/2” PULLEY (11), two 2” WHEELS (16), two 3/8” FLAT WASHERS (17), and two 3/8 ID X 3/8”
SPACERS (29) to the ADJUSTMENT TUBE (7) using one 3/8 X 4-1/2” BOLT (26) and one 3/8” LOW HEIGHT LOCK NUT (20)
as shown in FIGURE 3.
3/8 X 4-1/2” 26
3/8” LOW HEIGHT 20
17
16
29
11
14
7
