DVD-114 Operating Instructions
- 6 -
4.1
Front View and Vertical installation

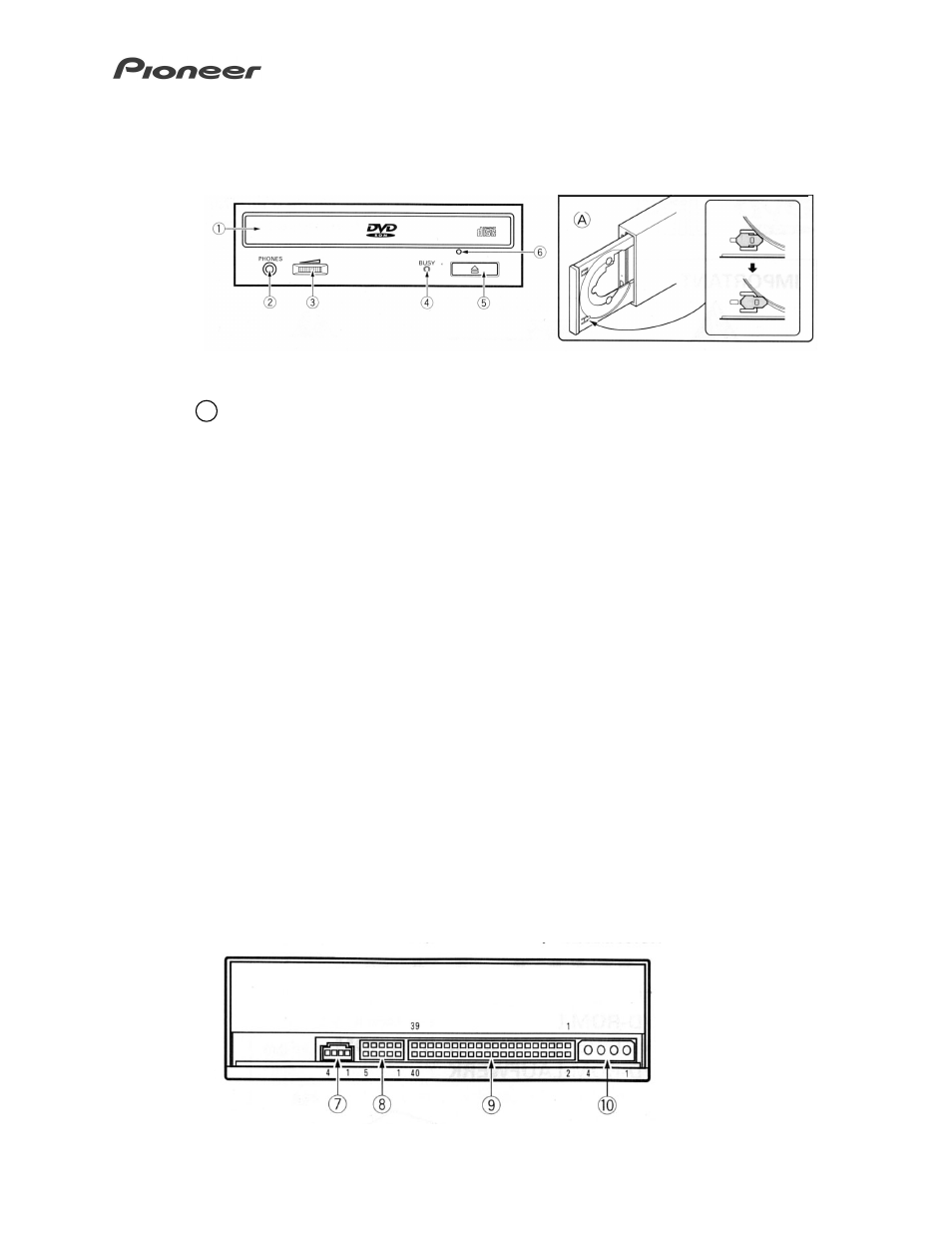

DVD-114 Front View
* Vertical Installation
1) Disc Tray - Auto-loading using the Eject button
place a disc on the tray with the label facing up
A When installing the drive vertically, slide the tray’s lower claw in before mounting
a disc.
2) Phones – Headphone jack
stereo mini-jack for using headphones
3) Volume Control – Headphone Level
used to adjust the volume for the headphones
4) Busy indicator
flashes during data access
5) Eject button
press to open and close the tray
6) Forced Ejection hole
if the eject button fails to function, insert a stiff rod into the hole and push gently and
steadily until the disc ejects
WARNING: Before forcing an ejection, verify that the computer power is OFF and
that the disc has stopped spinning in the drive. The approximate time, for a disc to
stop spinning once the power if OFF, is 60 seconds.
4.2
Back View and Ports
DVD-114 Back View
