26

00751

.012"

Brake
Plate

Slot (3)

Nylon Locknut (3)

Clutch Plate

Rotor

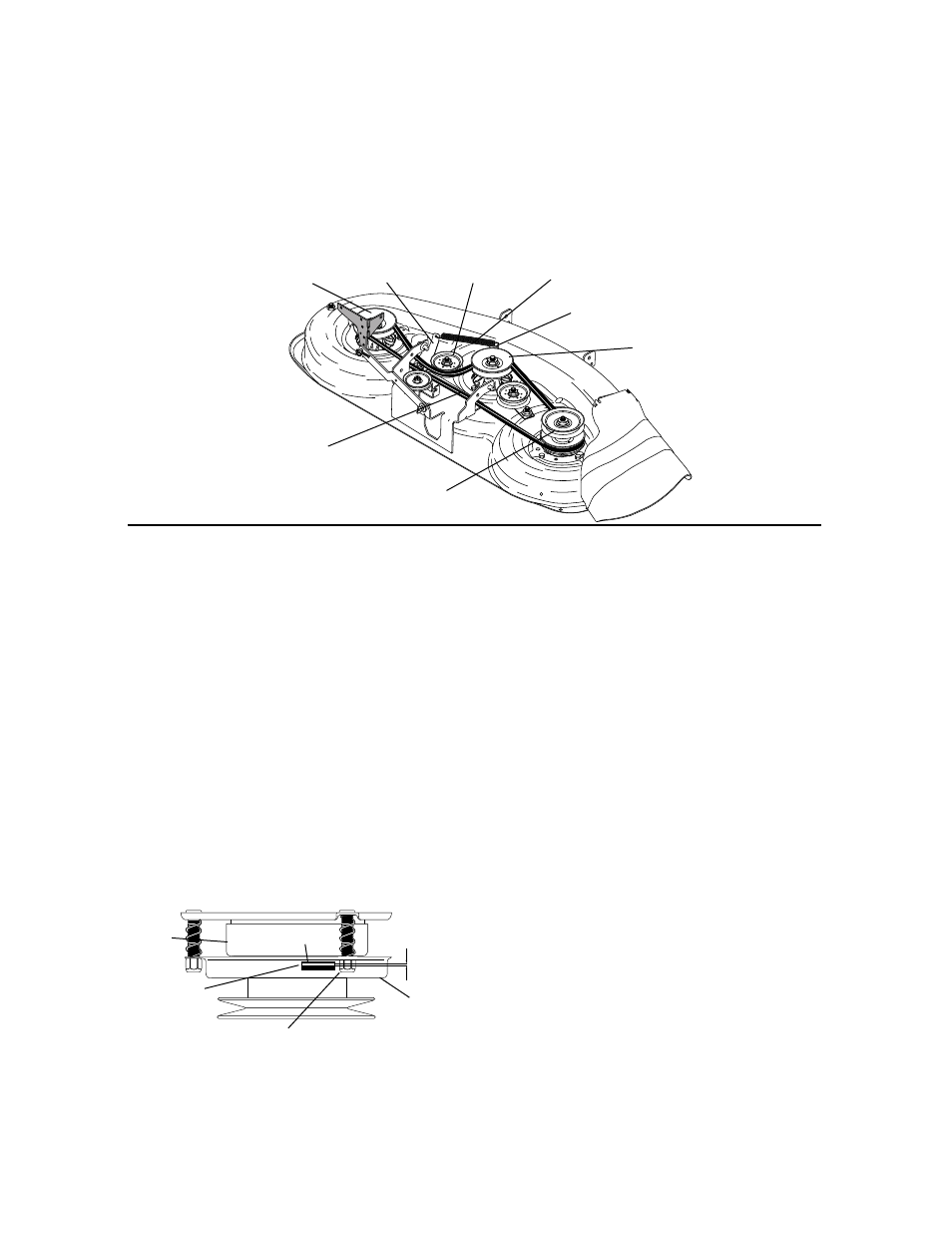

TO ADJUST ATTACHMENT CLUTCH
The electric clutch should provide years
of service. The clutch has a built-in brake
that stops the pulley within 5 sec onds.
Eventually, the internal brake will wear
which may cause the mower blades to not
engage, or, to not stop as required. Ad-
justments should be made by a qualifi ed
service center.
1. Make sure attachment clutch and igni-

tion switches are in “OFF” po si tion.

2. Adjust the three nylon locknuts until

space between clutch plate and ro tor
measures .012" at all three slot loca-
tions cut in the side of brake plate.

NOTE: After installing a new electric
clutch, run tractor at full throttle and
engage and disengage electric clutch 10
cycles to wear in clutch plate.

TO REPLACE MOTION DRIVE BELT
Park the tractor on level surface. En gage
parking brake. For ease of service there is
a belt installation guide decal on bottom of
left footrest.
1. Remove mower (See “TO REMOVE

MOWER” in this section of this man-
u al.)

BELT REMOVAL -
2. Create slack in belt by removing

retainer spring from drive belt ten sion
handle.

3. Remove belt from all idler pulleys,

transaxle pulley and then from en gine
pulley.

TO CHECK AND ADJUST BRAKE
If tractor requires more than fi ve (5) feet to
stop at highest speed in high est gear on a
level, dry concrete or paved surface, then
brake must be checked and ad just ed.

TO CHECK BRAKE
1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake
pedal all the way down and engage
parking brake.

2. Disengage transmission by placing

freewheel control in “transmission dis-
engaged” position. Pull freewheel con-
trol out and into the slot and release so
it is held in the disengaged position.

The rear wheels must lock and skid when
you try to manually push the tractor for-
ward. If the rear wheels rotate, the brake
needs to be adjusted or the pads need to
be replaced.

TO ADJUST BRAKE
Contact a qualifi ed service center.

02515

L.H.
Mandrel

Idler
Pulley

Center
Mandrel

Spring

Secondary
Idler Arm

Secondary
Spring Arm

R.H.
Mandrel

Mower Blade
(Secondary)
Drive Belt

13. Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all grooves
properly.

REINSTALL MOWER DRIVE BELT
(Refer to “TO REMOVE MOWER DRIVE
BELT” illustration in this section of
manual).
14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove
slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16. Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See “TO

INSTALL MOWER” in this section of
manual).
