5
ASSEMBLY
1

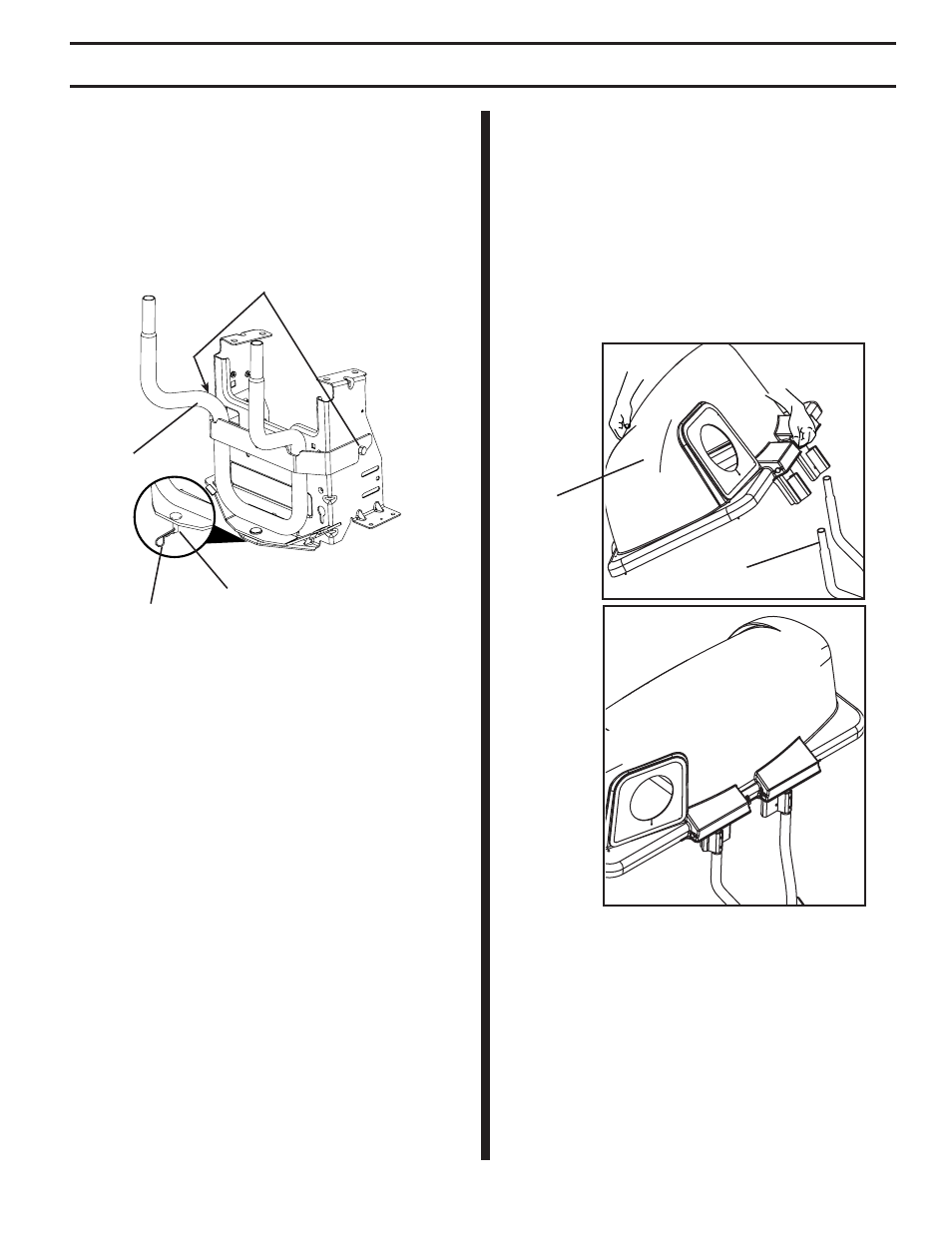

BAGGER SUPPORT ASSEMBLY
1. Align support assembly pin with hole in drawbar and
hang assembly over the shoulder bolts.
2. Be sure support assembly is seated properly and secure
with retainer spring supplied.
3064
SHOULDER
BOLTS
SUPPORT
ASSEMBLY
RETAINER
SPRING
PIN
FIG. 1
2
MOUNTING COVER ASSEMBLY TO
SUPPORT ASSEMBLY (See Fig. 2)
NOTE: For ease of assembly, you may wish to obtain the
as sis tance of another person for mounting cover assembly
to tractor.
1. Position cover assembly on ground behind tractor.
2. Lift and rotate cover to align cover brackets with support
assembly tubes.
3. Slide cover assembly down onto the support tubes.
FIG. 2
03024
COVER
ASSEMBLY
SUPPORT
ASSEMBLY
