Preparation
11
VQT0S57

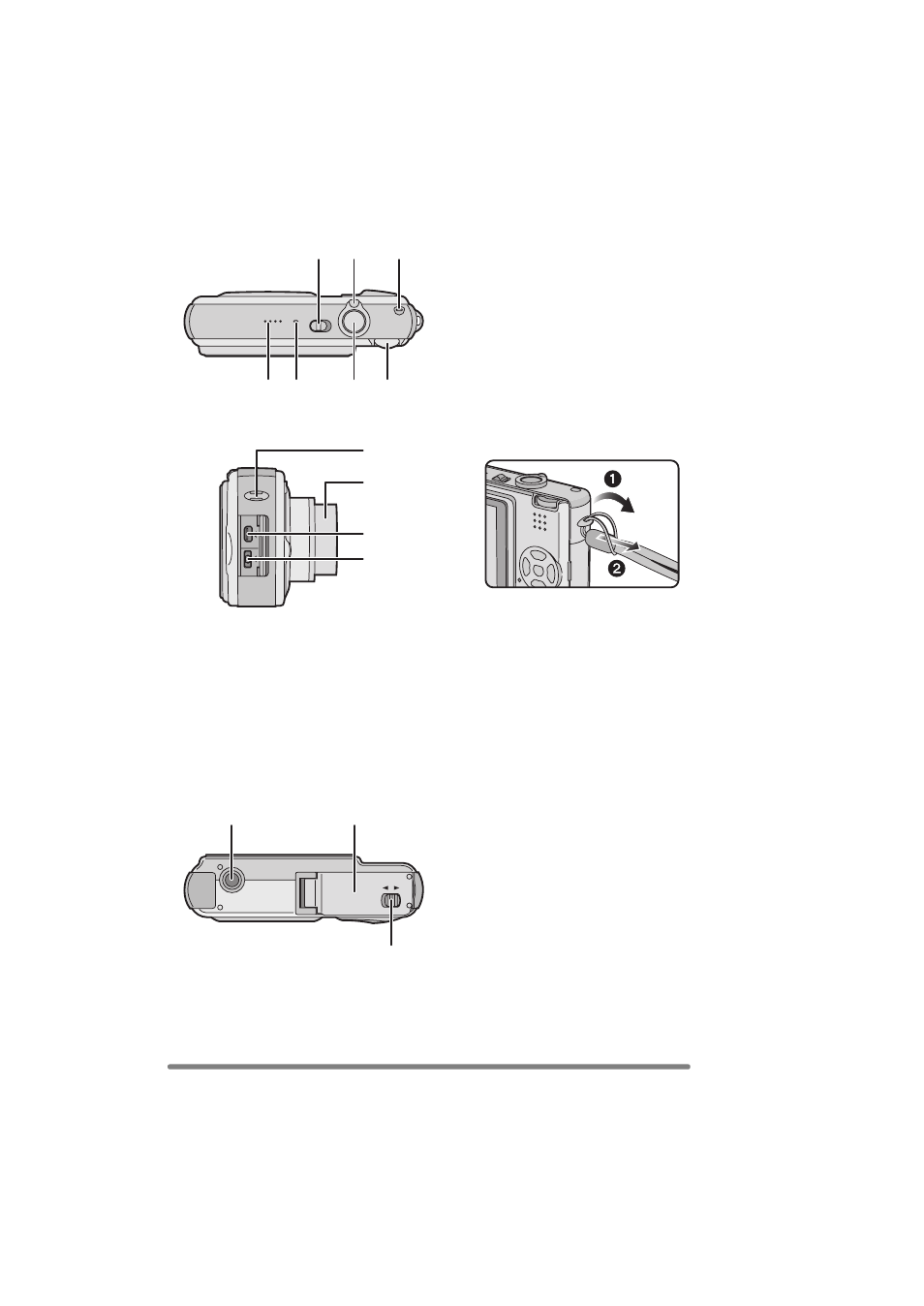

10 Camera ON/OFF Switch (P12)
11 Zoom Lever (P37, 71, 75)
12 Optical Image Stabilizer Button (P44)
13 Speaker (P77)
14 Microphone (P54, 72)
15 Shutter Button (P29, 54)
16 Mode Dial (P28)
17 Strap Eyelet
18 Lens Barrel
19 [AV OUT/DIGITAL] Socket (P92, 94, 96)
20 [DC IN] Socket (P94, 96)
• Please be sure to use genuine
Panasonic AC adaptor (DMW-AC5;
optional).
• This camera cannot charge the battery
even though the AC adaptor
(DMW-AC5; optional) is connected to
it.
21 Tripod Receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
22 Card/Battery Door (P15, 16)
23 Release lever (P15, 16)
10
13
11
14 15 16
12
AV OUT
DIGITAL
DC IN
17
18
19
20
OPEN LOCK
21 22
23
