Premier PHP HWC-260 - Manual (Page 7)

Premier Heat Pumps – Water Heater and Chiller Manual
Page 7

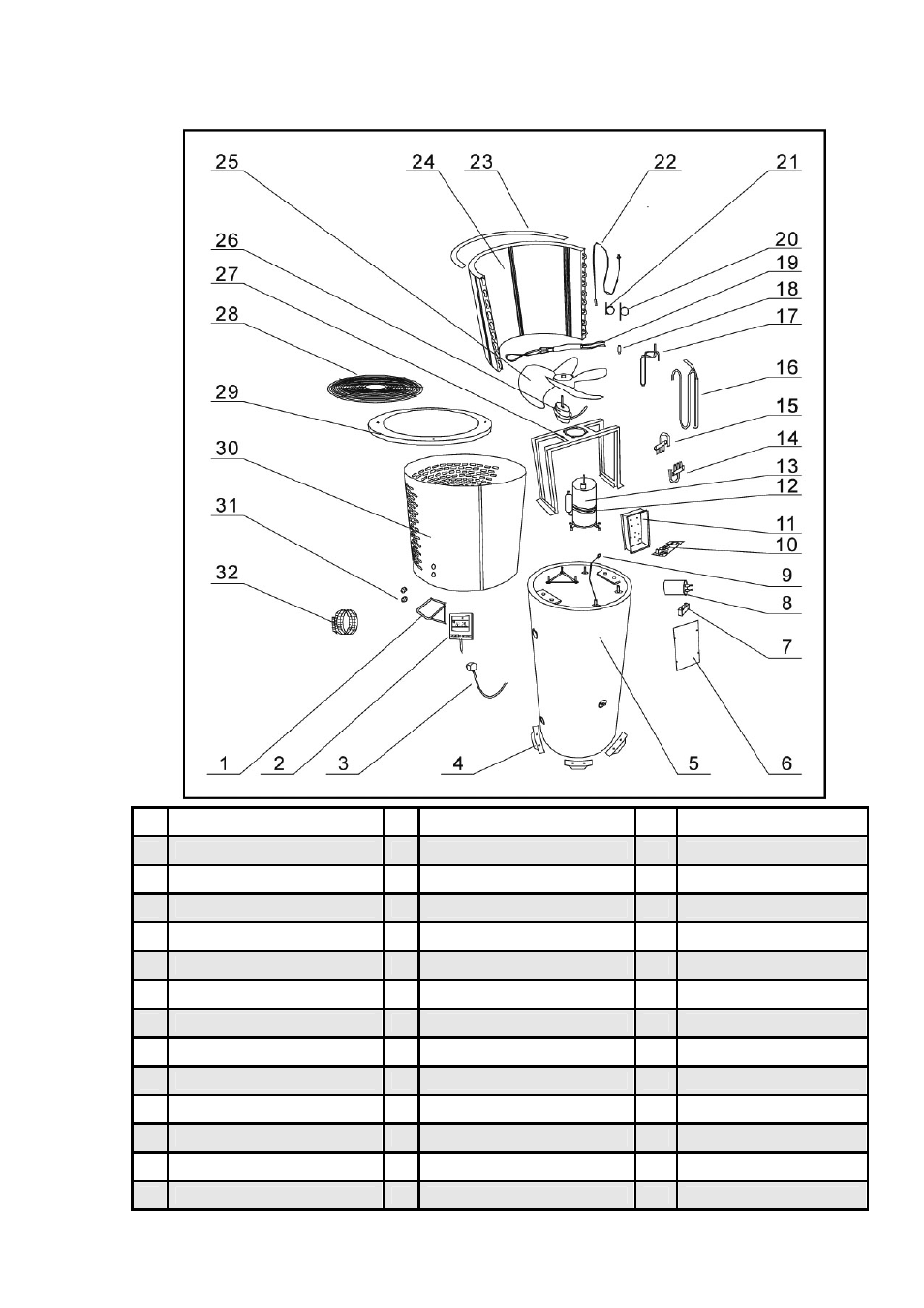

2-2 Inside
1 Control Panel Cover 15 Four-way Valve 2 29 Top Cover Plate
2 Control Panel 16 Gas Returning Pipe 30 Air Inlet Frame
3 Power Plug 17 Exhaust Pipe 31 Clip of Power Cable
4 Plastic Base 18 Filter 32 Drainage Pipe
5 Water Tank 19 Heat Exchanger Heater 33
6 Cover for Electrical Box 20 Auxiliary Capillary 34
7 Motor Capacitor 21 Capillary 35
8 Compressor Capacitor 22 Defrost Sensor 36
9 Temperature Sensor 23 Condenser Top Poly-foam 37
10 Circuit Board 24 Heat Exchanger 38
11 Electrical Box 25 Fan 39
12 Compressor Heater 26 Fan Motor 40
13 Compressor 27 Motor Bracket 41
14 Four-way Valve 1 28 Rear Net 42
