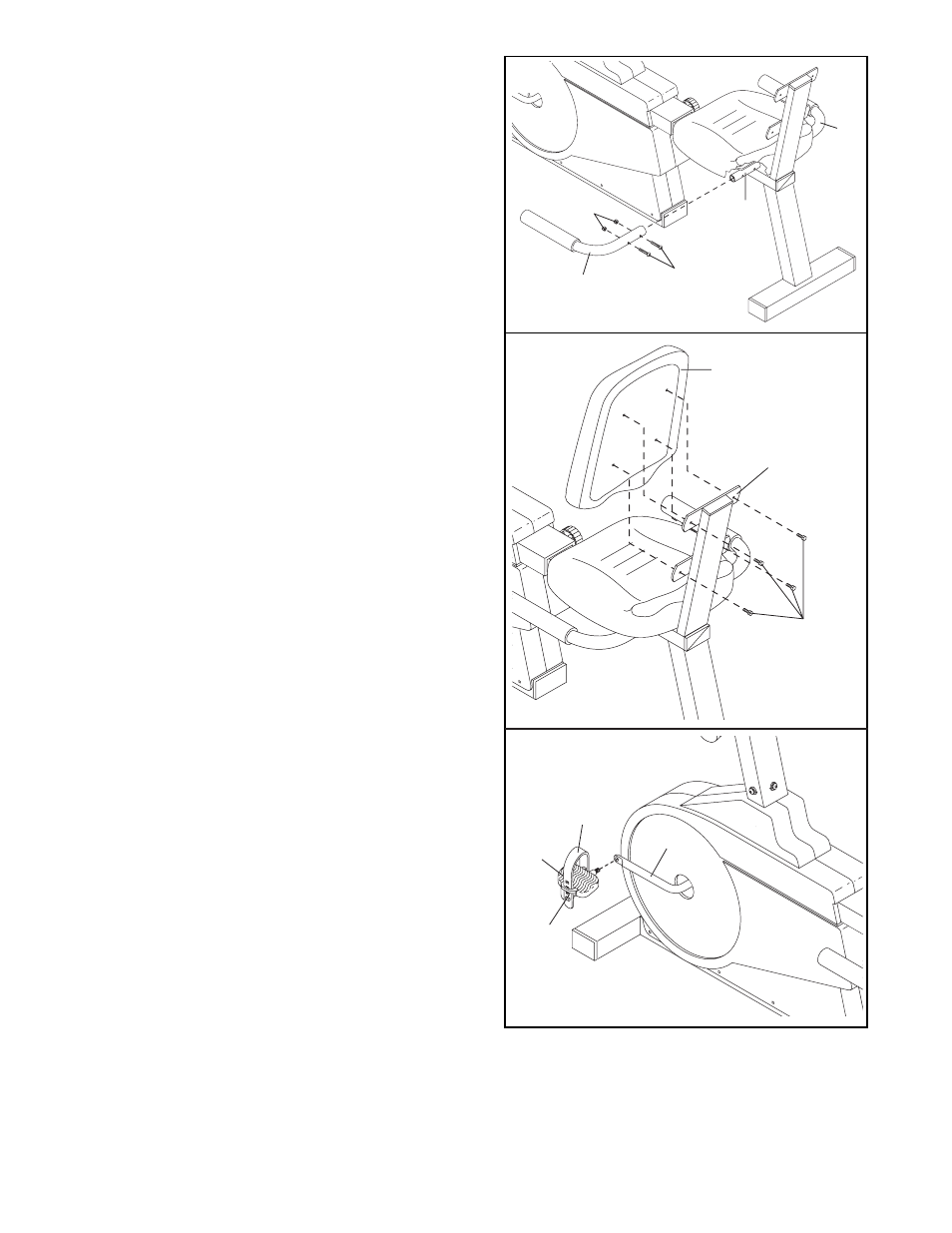

10. Attach the Backrest (15) to the Seat Bracket (69)
with four M6 x 16mm Hex Head Screws (24).
11. Identify the Left Pedal (45) (there is an ÒLÓ on the
Left Pedal for identification). Using an adjustable
wrench, firmly tighten the Left Pedal
counterclock-
wise into the left arm of the Crank (29).
Firmly tighten the Right Pedal (not shown) clock-
wise into the right arm of the Crank (29).
Adjust the Pedal Strap (27) on the Left Pedal (45) to
the desired position. Press the Pedal Strap onto the
tab on the Left Pedal.
Adjust the Pedal Strap on the Right Pedal (not
shown) in the same manner.
15
24
69
29
27
45
Tab
10
11
9. Attach a Seat Handle (17) to the Seat Bracket (69)
with two M6 x 38mm Button Head Bolts (18) and
two M6 Nylon Locknuts (66).
Attach the other Seat Handle (17) to the Seat
Bracket (69) in the same manner.
69
17
18
66
17
9
