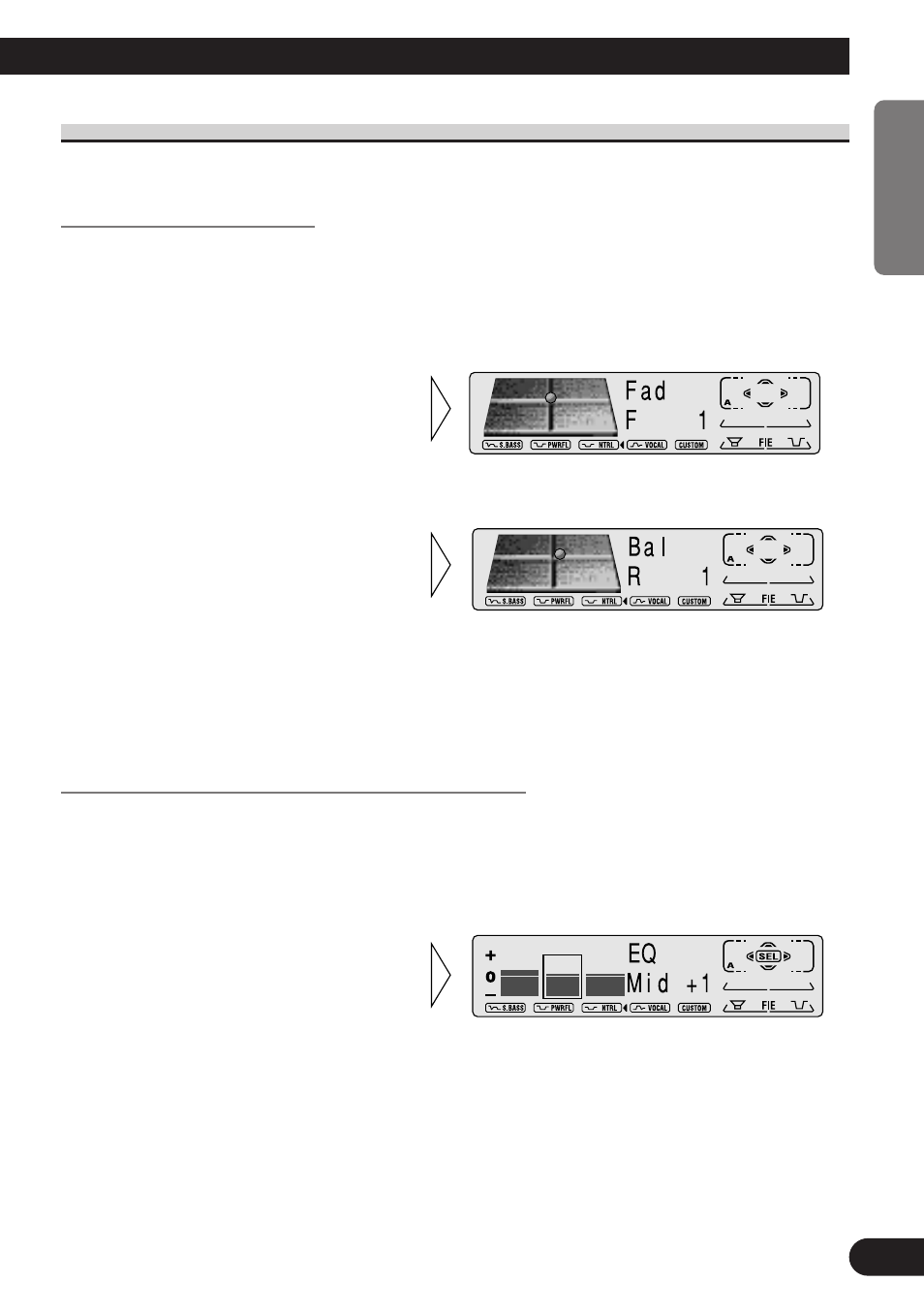

Audio Menu Functions
The Audio Menu features the following functions.
Balance Adjustment (Fad)
This function allows you to select a Fader/Balance setting that provides ideal listening con-
ditions in all occupied seats.
1. Press the AUDIO button and select the Fader/Balance mode (Fad) in the
Audio Menu.
Note:
• When the Rear Speaker Lead setting is “Rear SP:S.W”, you cannot adjust front/rear speaker
balance. (Refer to page 52.)
• “Fad F/R 0” is the proper setting when 2 speakers are in use.
Equalizer Curve Adjustment (EQ-Low/Mid/High)
You can adjust the currently selected equalizer curve settings as desired. Adjusted equaliz-
er curve settings are memorized in “CUSTOM”.
1. Press the AUDIO button and select the Equalizer mode
(EQ-Low/Mid/High) in the Audio Menu.
Continued overleaf.
2. Select the band you want to
adjust with the
2/3 buttons.
EQ-Low
+=EQ-Mid +=EQ-High
3. Adjust left/right speaker bal-
ance with the
2/3 buttons.
“Bal L 9” – “Bal R 9” is displayed
as it moves from left to right.
2. Adjust front/rear speaker bal-
ance with the
5/∞ buttons.
“Fad F 15” – “Fad R 15” is dis-
played as it moves from front to
rear.
