Profile Clarus CP65 User Manual
Page 4
45mm (1 3/4”)
I
NSTALLATION (TWEETER)

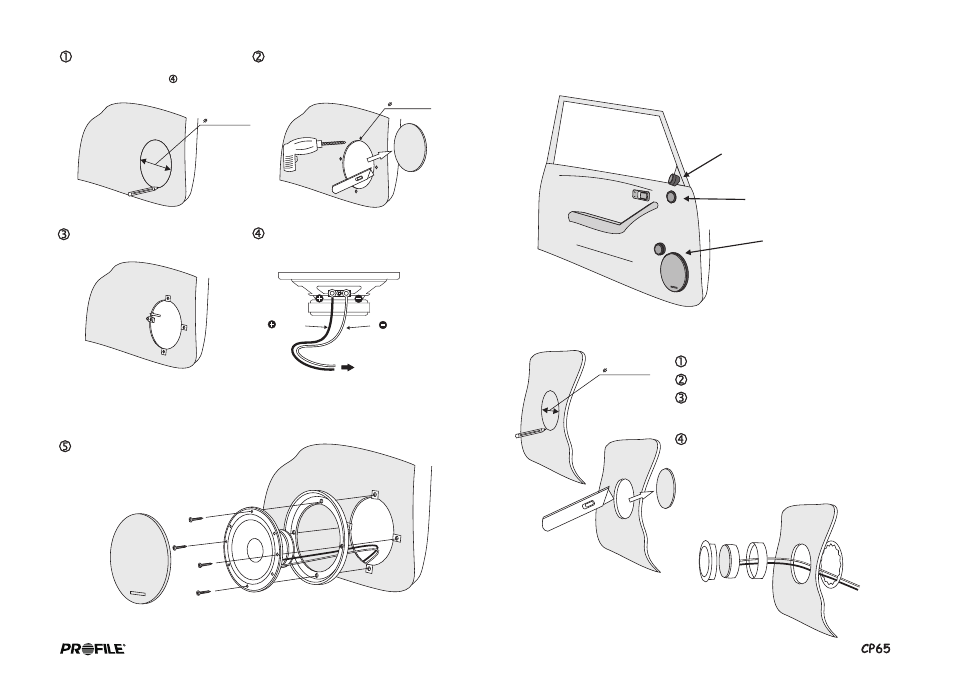

FOR OPTIMUM FLEXIBILITY THERE ARE THREE MOUNTING OPTIONS FOR THE TWEETER. YOU
WILL NEED TO DECIDE WHICH IS BEST SUITED FOR YOUR APPLICATION.
TWEETER MOUNTING OPTION # 1 - FLUSH MOUNT
ANGLE MOUNTING
SURFACE MOUNTING
FLUSH MOUNTING
MARK THE CUT OUT AREA.
CUT OUT TWEETER MOUNTING AREA.
ASSEMBLE TWEETER AS SHOWN BELOW AND
RUN THE SPEAKERS WIRE THROUGH THE HOLE
THEN THROUGH THE RETAINING RING.
PUSH RETAINING RING AROUND BACK OF
TWEETER HOUSING UNTIL THE TWEETER IS
FLUSH WITH DOOR PANEL.
4
I
NSTALLATION (MIDBASS)
IMPORTANT!: THE LARGER HOLE ON
THE CLIP SHOULD BE ON THE FRONT
SIDE OF THE PANEL AND THE SMALLER
SPILT HOLE SHOULD BE ON THE BACK
SIDE OF THE PANEL.
CUT OUT SPEAKER MOUNTING AREA
THEN DRILL SCREW HOLES USING
3.3mm (5/32”) BIT.
INSERT RETAINING CLIP OVER HOLE
IN DOOR PANEL.
MARK THE CUT OUT AREA
AND DRILL HOLES. IF HOLE
EXISTS SKIP TO STEP .
TO CROSSOVER NETWORK
SOLID
COLOR WIRE
BLACK
STRIPED WIRE
CONNECT WIRE AT SPEAKERS.
MOUNT SPEAKERS AND SNAP ON GRILLES.
IF YOU ARE MOUNTING SPEAKERS IN THE
VEHICLE’S FACTORY LOCATIONS, GRILLES
ARE NOT NEEDED.
3
145mm (5 3/4”)
3.3mm (5/32”)
