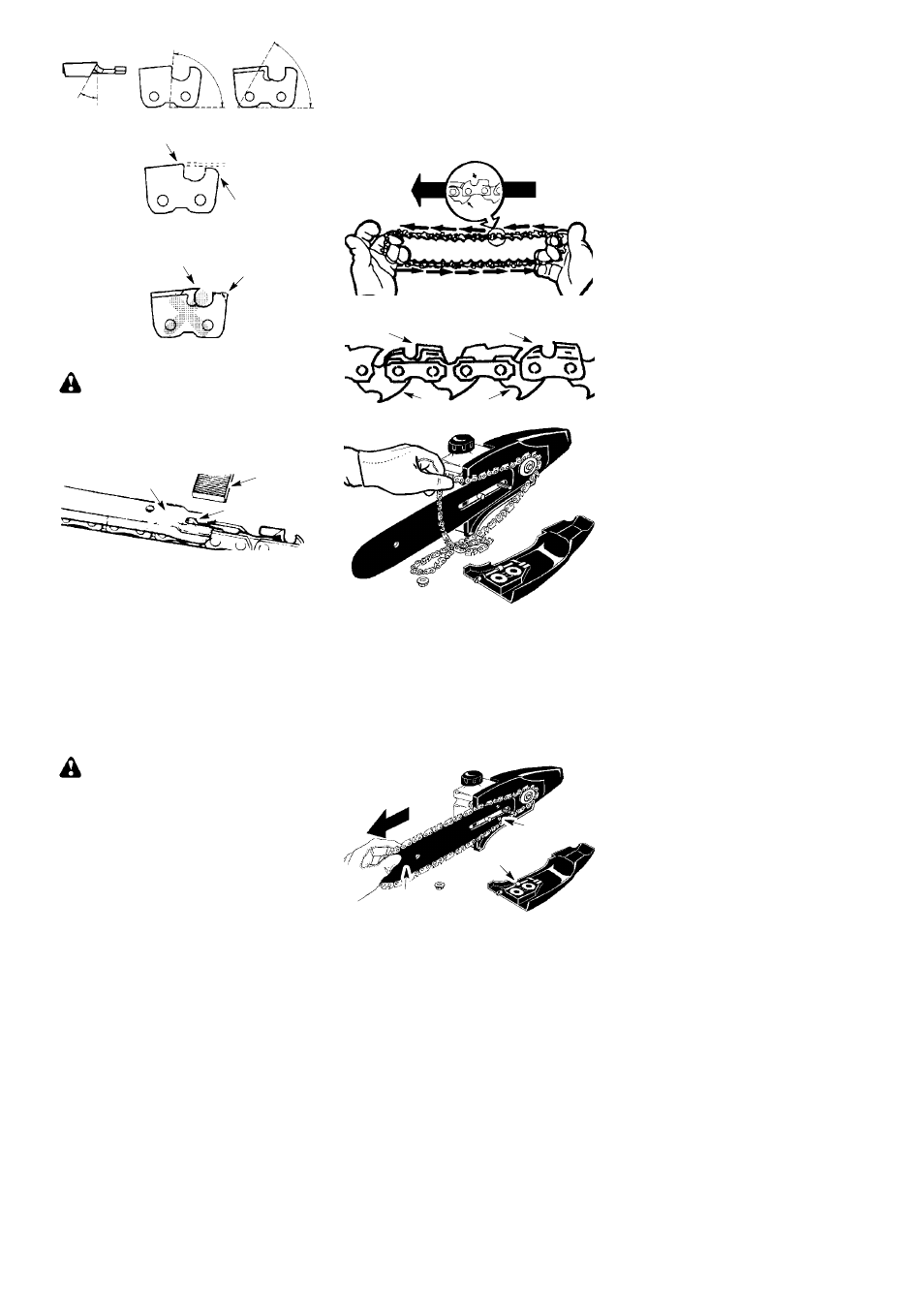

17

30

˚

75

˚

60

˚

Rounded

Corner

0.025 inch

(0.65 mm)

Right

Hook Angle

Wrong

Squared Off

Corner

Too Much Hook Angle

WARNING:

Maintain the proper hook

angle according to the manufacturer’s specifica-

tions for the chain you are using. Improper hook

angle will increase the chance of kickback

which can result in serious injury.

4. Check and lower depth gauges.

Depth Gauge Tool

Depth Gauge

File

S

Place gauge tool on cutter.

S

If the depth gauge is higher than the

depth gauge tool, file it level to the top of

the depth gauge tool.

S

Maintain rounded front corner of depth

gauge with a flat file.

NOTE:

The very top of the depth

gauge should be flat with the front half

rounded off with a flat file.

If you require further assistance or are unsure

about performing this procedure, contact your

authorized service dealer or call our customer

assistance help line at 1--800--554--6723.

CHAIN REPLACEMENT

WARNING:

Wear protective gloves

when handling chain. The chain is sharp and

can cut you even when it is not moving.

It is normal for a new chain to stretch during the

first 15 minutes of operation. You should re-

check your chain tension frequently and adjust

the chain tension as required. See CHAIN TEN-

SION section.

Replace the old chain when it becomes worn or

damaged. Use only the Low-Kickback replace-

ment chain specified in the repair parts list.

TO REPLACE CHAIN:

1. Disconnect pruner from power source.

2. Remove bar clamp nut.

3. Remove bar clamp.

4. Turn adjusting screw by hand counter-

clockwise until adjusting pin just touches

the stop.

5. Slide guide bar behind sprocket until

guide bar stops against sprocket.

6. Remove the old chain.

7. Carefully remove new chain from pack-

age. Hold chain with the drive links as

shown.

CUTTERS MUST FACE IN

DIRECTION OF ROTATION

Tip of

Bar

Cutter

Drivelink

Cutters

Depth Gauge

Drive Links

8. Place chain over sprocket, fitting the drive

links in the sprocket.

9. Fit bottom of drive links between the teeth in

the sprocket in the nose of the guide bar.

10. Fit chain drive links into bar groove.

11. Pull guide bar forward until chain is snug

in guide bar groove. Ensure all drive links

are in the bar groove.

12. Now, install bar clamp making sure the

adjusting pin is positioned in the lower

hole in the guide bar.

Adjusting Pin

Lower

Hole

Guide Bar

13. Install bar clamp nut and finger tighten

only. Do not tighten any further at this

point. Proceed to the CHAIN ADJUST-

MENT section.
