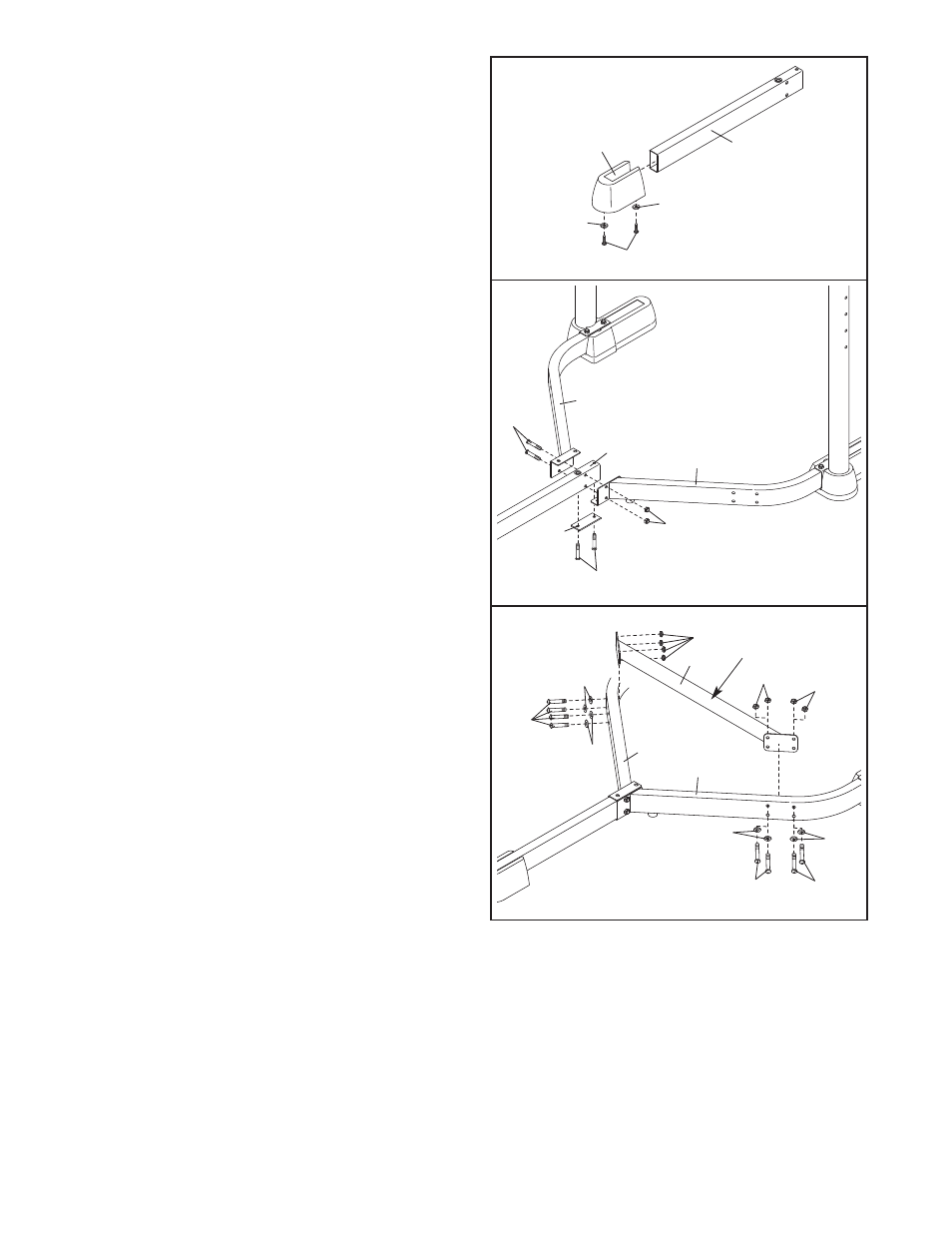

2. Attach the Front Foot (15) to the Seat Base (1)
with two M4 x 16mm Self-tapping Screws (38)
and two M4 Washers (39).
4. Orient the Center Base (3) as shown and attach it
to the Right and Left Bases (2, 33) with eight M10
x 55mm Button Bolts (47), eight M10 Washers
(37), and eight M10 Nylon Locknuts (41).
See step 3. Tighten the M10 Nylon Locknuts
(41) used in step 3.
3. Attach the Right and Left Bases (2, 33) to the
Seat Base (1) with two M10 x 58mm Button Bolts
(48) and two M10 Nylon Locknuts (41).
Do not
tighten the Nylon Locknuts yet.
Insert two M10 x 100mm Screws (45) up through
the Base Plate (34) and the Seat Base (1).
Place
a piece of tape over the Bolt heads to hold
them in place.
1
15
39
39
38
2
3
48
2
33
1
41
34
45
3
Decal
41
41
2
33
4
47
37
37
37
37
47 47
41
