PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
Replaces
1

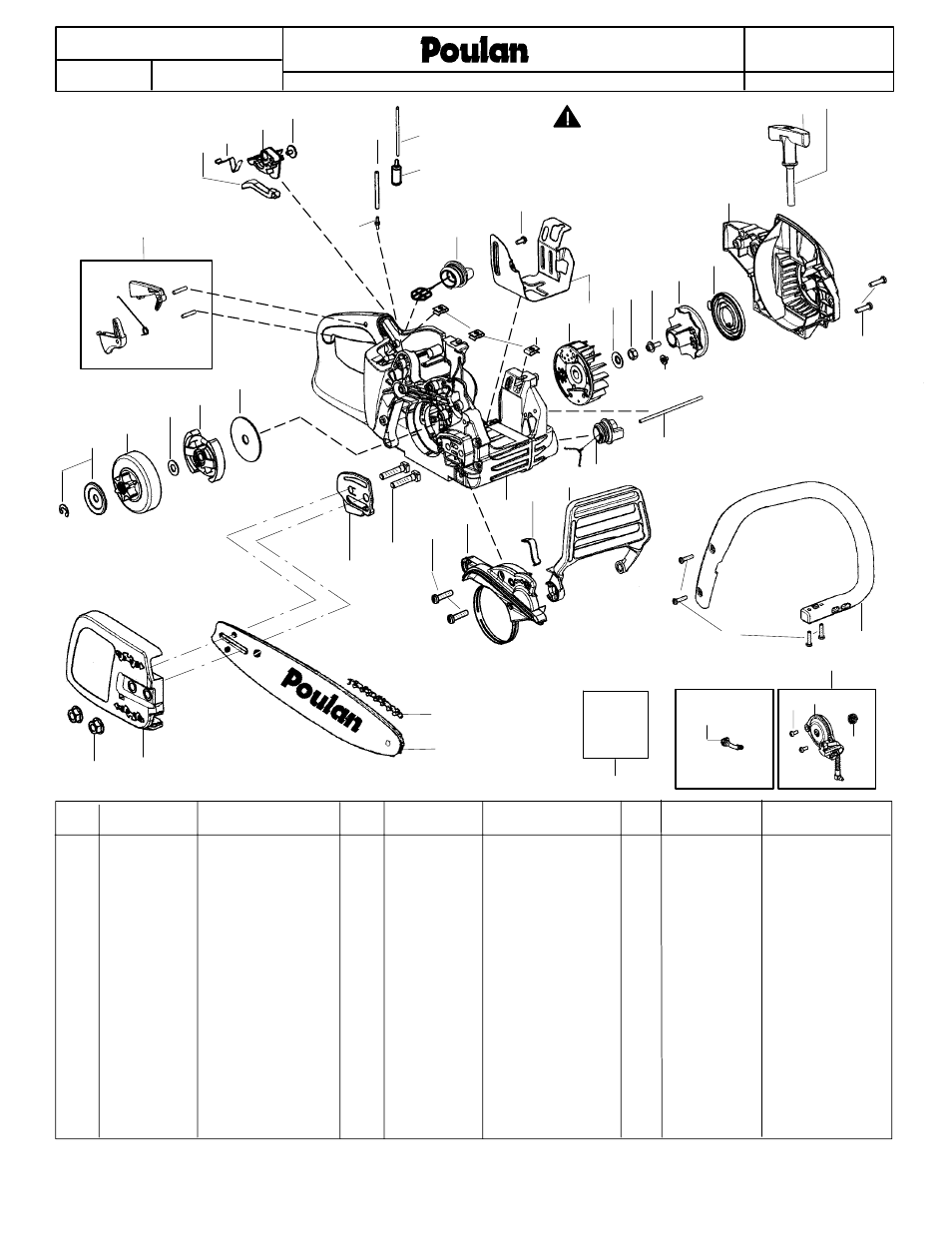

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
545103413
P4018WTL
DATE
7/03/08
PARTS LIST
545103413 --- 6/06/08
r
1.
530057893
Knob--Choke
2.
530057908
Spring--Ign. Switch
3.
530057891
Lever--Ign. Switch
4.
530016080
Screw
5.
530071888
Kit--Trigger/Lockout
6.
530069216
Kit--Fuel Line (Large)
7.
530069247
Kit--Fuel Line (Small)
8.
530095649
Assy--Fuel Pick Up
9.
530023877
Fitting--Fuel line
10.
530071945
Kit--Clutch Washer
11.
530057905
Assy--Clutch Drum 3/8”
12.
530071945
Kit--Clutch Washer
13.
530057907
Assy--Clutch
14.
530016419
Washer--Large Clutch
15.
530047192
Assy--Fuel Cap w/ret
16.
530016064
Screw
17.
530015922
Nut--”U” type speed
18.
530057937
Assy--Flywheel
19.
530057911
Shield--Heat
20.
530015127
Washer--Flywheel
21.
530016134
Nut--Flywheel
All repairs, adjustments and maintenance
not described in the Operator’s Manual
must be performed by qualified service
personnel.
WARNING
Ref.
Part No.
Description
Ref.
Part No.
Description
Ref.
Part No.
Description
41
42
22.
530015920
Screw
23.
530057890
Pulley--Starter
24.
530042095
Spring--Starter
25.
530058816
Housing--Fan
26.
530056402
Handle--Starter
27.
530069232
Kit--Rope
28.
530016432
Screw
29.
530016080
Screw
30.
530058786
Assy--Oil Vent
31.
530057236
Assy--Oil Cap w/ret.
32.
530057897
Handguard
33.
530016416
Spring--Handguard
34.
530058870
Assy--Chassis
(Incl. 5,6,7,8,9,15,16,
17,19,31,33,37)
35.
530071893
Kit--Chainbrake
36.
530016432
Screw
37.
530016133
Bolt--Bar
38.
530057910
Plate--Bar
39.
530015917
Nut--Bar
40.
530058920
Clutch Cover
41.
952051338
18” Chain
42.
530044749
18” Bar
43.
530071945
Kit--Clutch Washer
(Incl. 10,12)
44.
530016432
Screw
45.
530057888
Handle--Front
46.
530071891
Kit--Oil Pump
(Incl. 48,49,50)
47.
530057924
Assy--Oil Pick Up
48.
530016064
Screw
49.
530057931
Assy--Oil Pump
50.
530037820
Gear--Worm
=
NEW PART NUMBER FOR THIS IPL
n
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
5
15
16
19
11
10
12
13
14
18
20
21
22
23
24
25
17
40
45
44
46
38
37
34
31
30
28
32
35
36
33
27
26
48 49
47
50
2
3
4
1
8
6
9
39
29
Clutch
Washer
Kit
43
7
