Philips MCD 700 - Manual (Page 2)

AC power cord
Speaker
(Right)
Speaker
(Left)
FM antenna
AM antenna
1
5
4
3
1

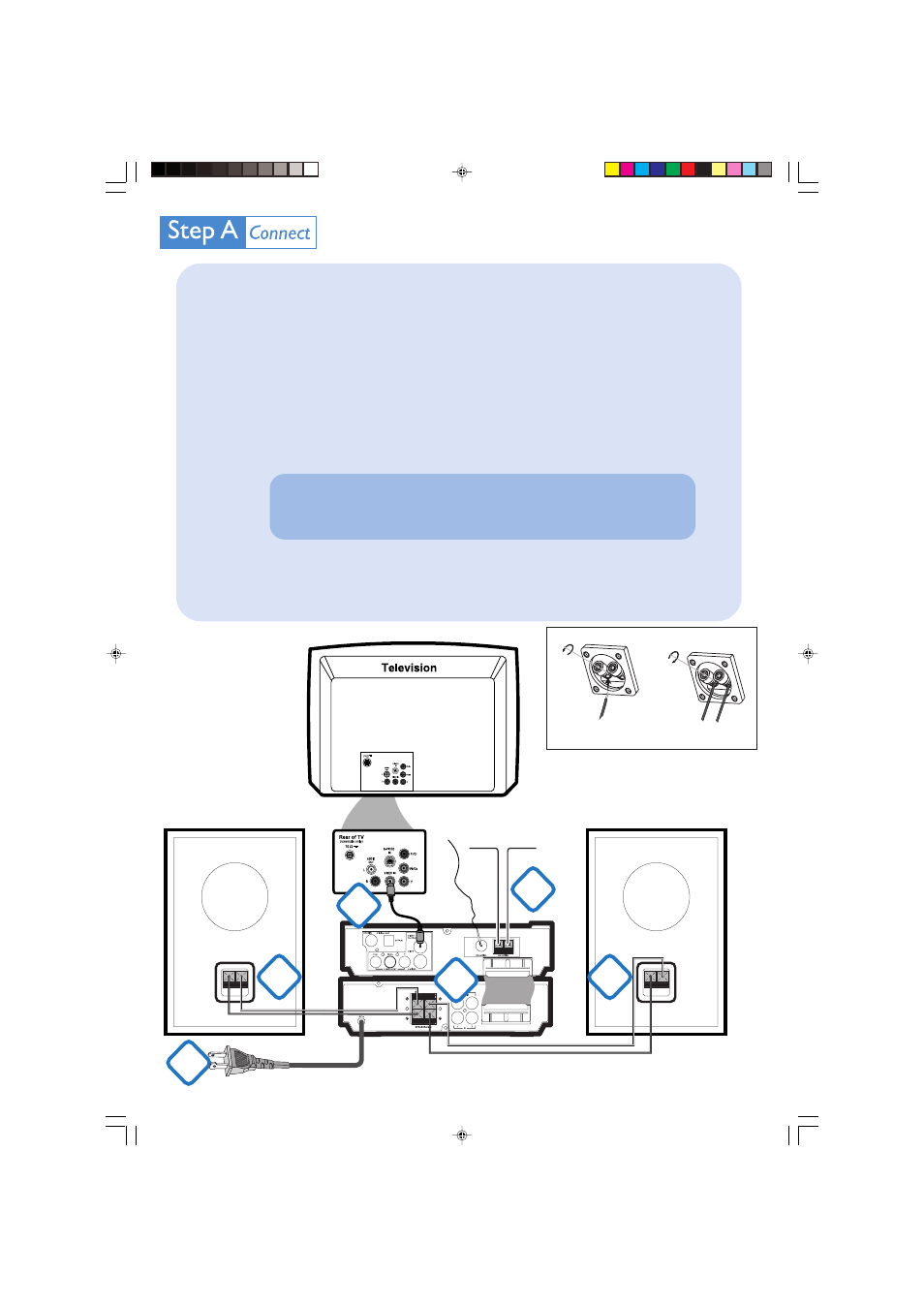

Speaker connection for MCD702
2
Connect the speakers to the SPEAKERS (8ohm) terminals with two speaker cables. Right speaker to " R " and
left speaker to " L ", red wire to " + " and silver wire to " – ".
Connect the supplied AM antenna and FM antenna to the respective terminals. Adjust the position of the
antenna for optimal reception.
Connect the serial port marked CONTROL CABLE at the rear of the DVD player to the same port at the
rear of the power amplifier with the supplied control cable.
Connect the VIDEO OUTPUT jack at the rear of the DVD player to the video input jack on the TV using the
supplied video cable (yellow).
Connect the power cord of the DVD system to the AC power outlet.
1
2
3
Tip
See the User Manual for other TV connection options.
4
5
