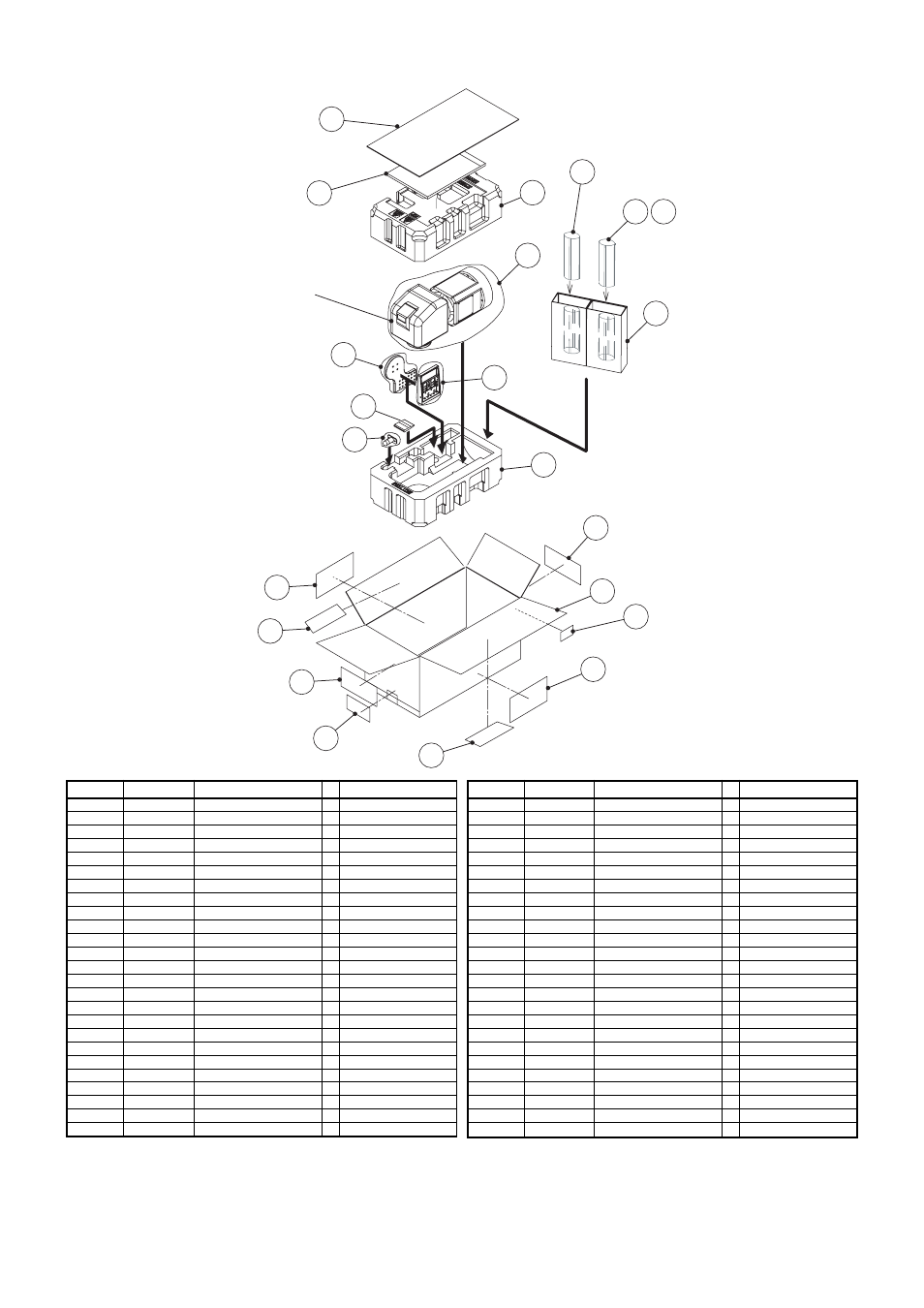

PACKAGING PARTS ASSEMBLY (For AW-PH405MC)
PRT-4
Indoor Pan/Tilt
Head Systems
8
11
5
2
201
6
1
1
3
202
4
203
205
202
206
202
9
9
9
10 x3
7
207
Ref. No.
Part No.
Part Name & Description
Pcs
Remarks
Ref. No.
Part No.
Part Name & Description
Pcs
Remarks
1
VPGB0023
PACKAGING CASE
1
2
VPNB0028-1
CUSHION(TOP)
1
3
VPNB0027-1
CUSHION(BOTTOM)
1
4
VPNB0030
TOP PAD
1
5
VPNB0029
CORD PAD
1
6
VEEB0084
CAMERA CABLE
1
7
PE45X63C05B
BAG(UNIT)
1
8
PE20X35C05B
BAG(CABLE)
1
9
YWY15X20C03
BAG(ARM,CAMERA BASE,TALLY)
3
10
YWT10X10C03
BAG(ACCESSORIES)
3
10-1
VMWB0001
WIRE
1
VHDB0019
SCREW
1
XWE6FN
WASHER
1
P45PAC01B015
SPRING WASHER
1
XYN4+F8FN
SCREW
2
10-2
TWH-15
WRENCH(M5)
1
P40PAC01B024
CAP SCREW
7
10-3
P40B0D01P006
TALLY BLANK PANEL
1
XSN3+6FN
SCREW
2
11
K2CK3DH00019 AC CABLE
1
201
VQFB0063
PRINTED MATTERS BAG
1
202
V8FA1314B4
PACKAGING LABEL
3
203
VQLB0009
ORIGIN LABEL
1
204
VQL0X01
QUALITY LABEL
1
205
VQLB0049
HANDLING LABEL
1
206
VQLB0050
SEE-MANUAL LABEL
1
207
VQL0L14
SERIAL NUMBER LABEL
1
