LEGEND® PLATINUM INSTALLATION MANUAL

II. Installation Instructions

A. Legend

®

Platinum Components

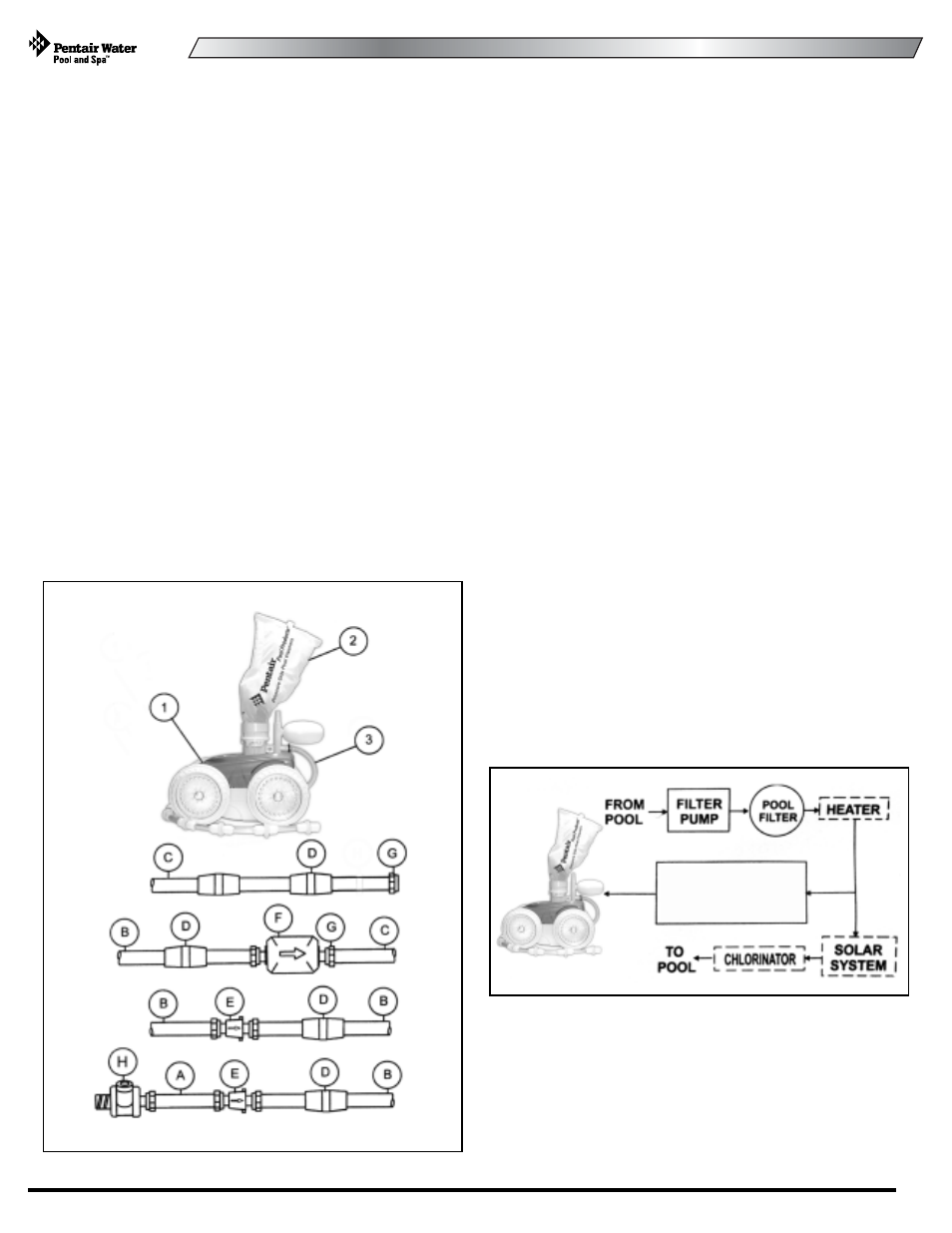

The Legend

®

Platinum Box Contains:

1. Cleaner Head
2. Sand & Silt Bag
3. Sweep Hose
4. Complete Feed Hose

a. 1 - 8½ in. hose
b. 2 - 10 ft. long hoses
c. 1 - 30 in. soft hose/1 - 7½ ft. soft hose
d. 10 - Floats
e. 3 - Swivels
f.

1- Back-Up Valve

g. 10 - Mender Nuts
h. 1 - Wall Fitting complete

B. Pool Connections

The Legend

®

Platinum comes equipped to connect

to a female threaded 1-1/2 in. line, dedicated to our
Universal Booster Pump.

Also, if the pool doesn't have a dedicated cleaner
line please contact our Technical Support
Department at 1-800-831-7133.

C. Booster Pump Installation

If you already have a 3/4 horsepower booster pump
installed at your equipment pad and it is operational,
skip this section and proceed to Installing the Twist
Lock Pressure Relief Valve (Wall Fitting).

Detailed booster pump installation instructions are
packaged separately in our booster pump box.
Please follow these instructions carefully.

The booster pump is not self-priming and needs to
be fed with water taken from the pool filter before
any type of in-line chlorinator. See figure below.

2
