• System MTBF 50K hrs (CCFL 30Khrs)
• Cabinet color
150B3M: Light Gray
150B3Q: Black & sliver
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE

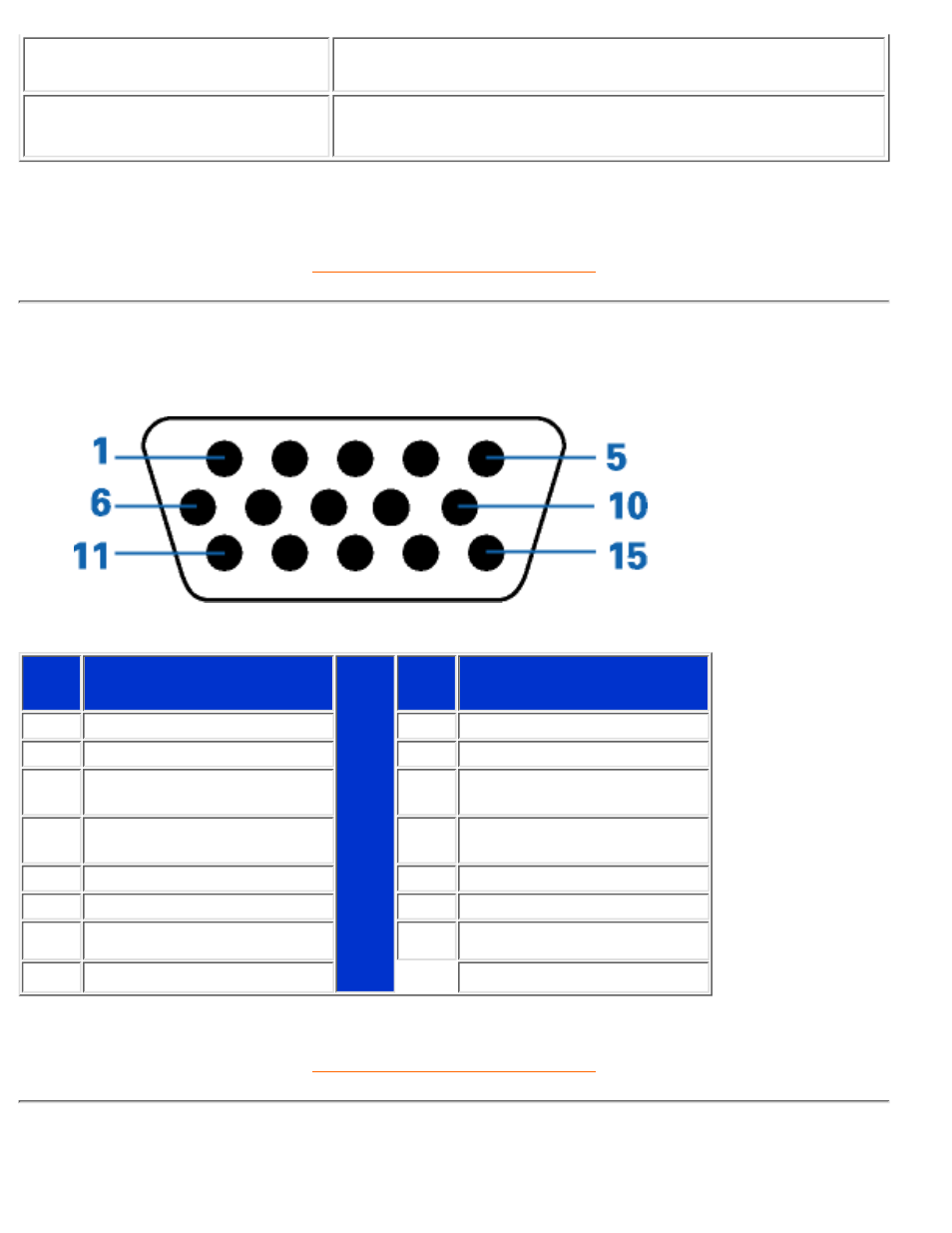

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable:
Pin
No.
Assignment
Pin
No.
Assignment
1 Red video input 9 DDC +5V
2 Green video input 10 Logic ground
3 Blue video input 11
Identical output - connected
to pin 10
4
Identical output - connected
to pin 10
12 Serial data line (SDA)
5 Cable detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
RETURN TO TOP OF THE PAGE
Product Views
Product Information
