10. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking
belt (see page 24). To protect the floor or carpet, place a mat under the treadmill.

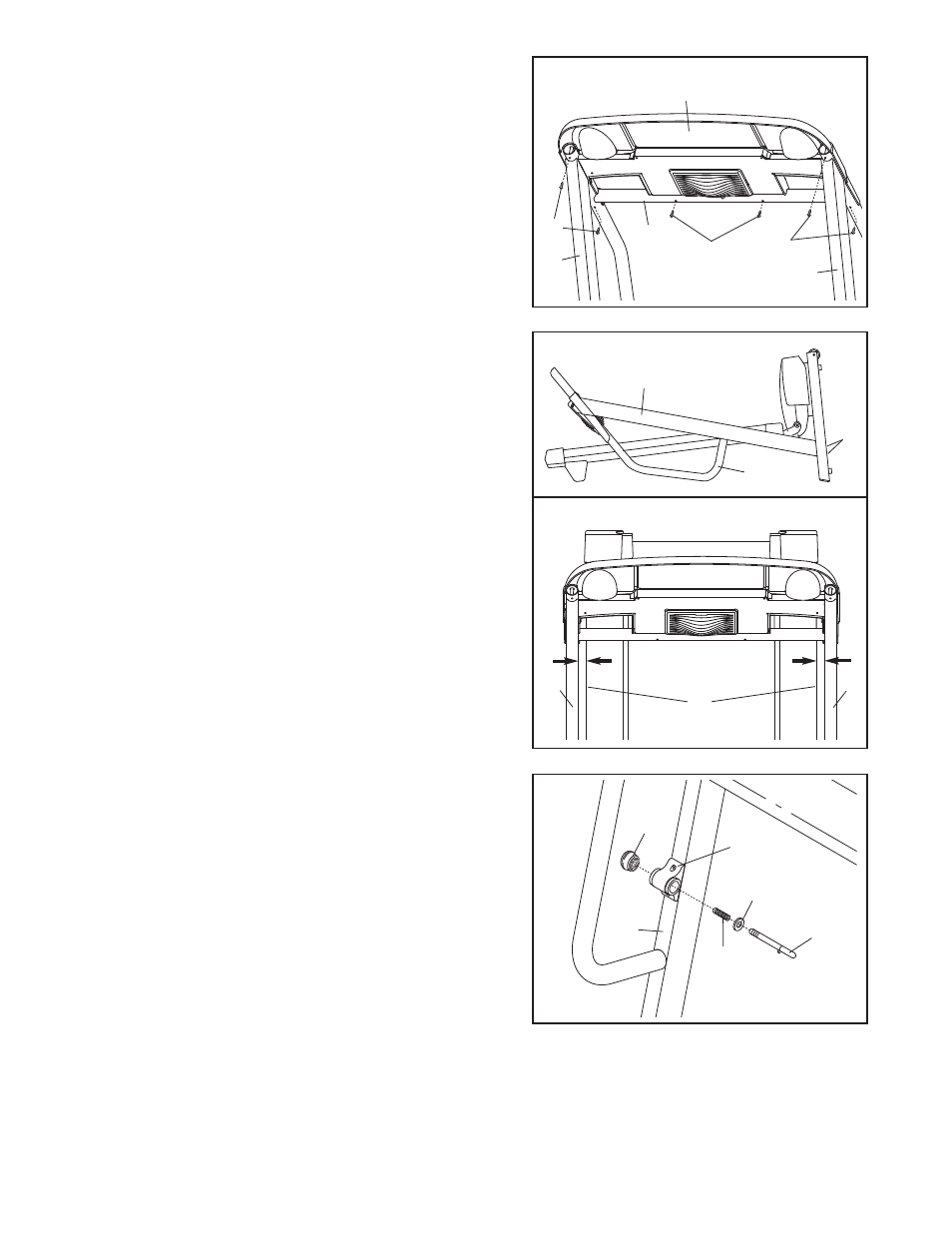

9. Remove the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Insert the pin
into the Latch Housing (77), and tighten the knob back
onto the pin.
9
Knob
Pin
Collar
Spring
77
9
8. Lower the Uprights (9, 10) until the handrails are touch-
ing the floor.
See the lower drawing. Position the Uprights (9, 10) so
that the treadmill Frame (12) is centered between the
Uprights.
Firmly tighten the four 2 3/4” Bolts (47). Then, raise the
Uprights (9, 10) back to the vertical position.
9
9, 10
Handrail
12
10
Top View
8
47
7. Set the Console (78) on the Left and Right Uprights (9,
10). Be careful not to pinch any wires. See drawing 6
on page 8. Make sure that the Upright Wire Harness (17)
is
not in the small cutout shown by the arrow.
Using the included 90° screwdriver and a phillips screw-
driver, attach the Console (78) to the Uprights (9, 10) and
the Crossbar (88) with six 3/4” Screws (39).
Start all six
Screws before tightening any of them; be careful not
to overtighten the Screws.
78
88
10
9
39
39
7
39
