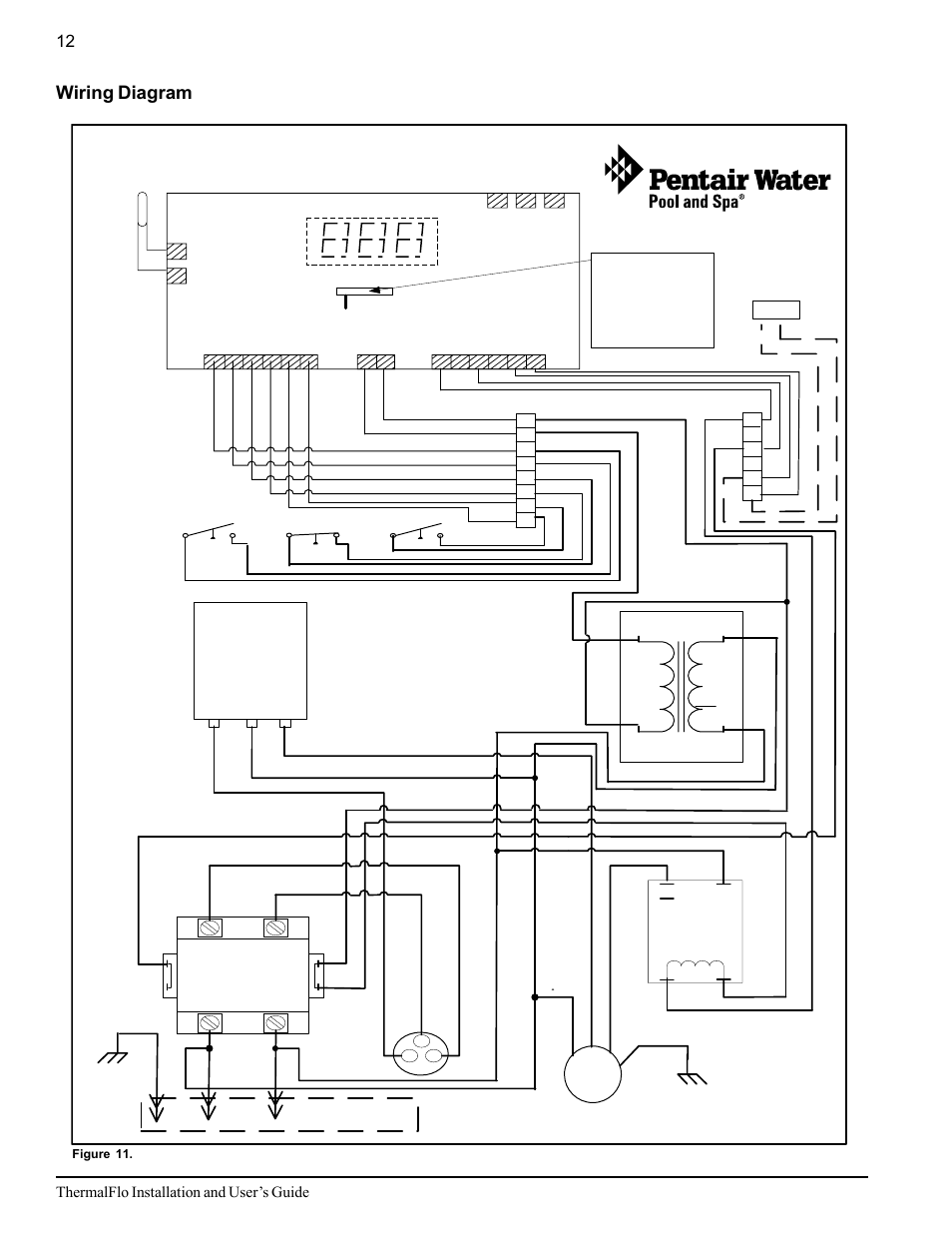

Wiring diagram, Thermalflo installation and user’s guide, Contactor | Incoming 220 vac power connection r c s, Fan relay, Fan gr e e n, Tbl tbr, Transformer 24 vac, Heat pump control board | Pentair ThermalFlo User Manual | Page 20 / 40
